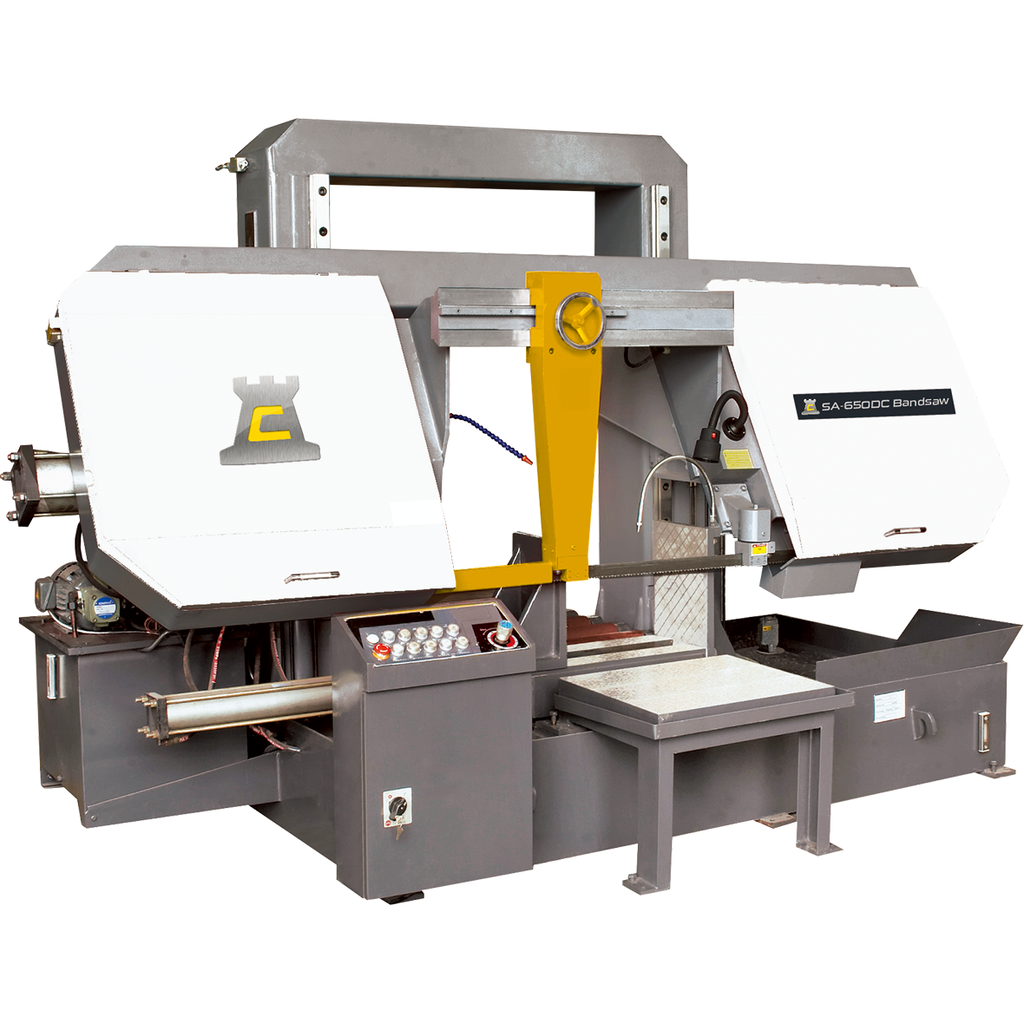

Chester SA-650DC Bandsaw
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Cutting Capacity Round: 650mm
Sawing Machines
The Chester SA-650DC Semi Auto Bandsaw is built with two conjoined linear columns which provide stability and accurate cutting. This saw is fitted with electronic variable blade speed and blade tension gauge which allows the user to set the correct cutting speed. This machine is fitted with auto shut off, auto raising of bow, hydraulic vice and powered rollers for moving the workpiece. Capacity of this machine is 26 1/2” with solid or hollow square or round bar.
• Semi-Automatic Function
• Work Lamp
• Hydraulic Vice
• Adjustable Hydraulic Down Feed of Bow
• Hydraulic Raising of Bow
• Blade Tension Gauge
• Coolant System
• EVS - Electronic Variable Speed for Blade
• Powered Material Feed by Rollers
• Double Columns for High Rigidity
| Cutting Capacities |
|
| Capacity @ 0° |
|
| Round | 650mm |
| Square | 650x650mm |
| Rectangular | 650x650mm |
| Technical Specifications |
|
| Blade Dimensions | 41×1.3x6860mm |
| Motor Power | 7.5kW (10hp) |
| Table Height | 570mm |
| Machine Dimensions | 3270x1640x2160mm |
| Net Weight | 3260kg |
| Gross Weight | 3360kg |
Features
- Semi Automatic Function
- Work Lamp
- Hydraulic Vice
- Adjustable Hydraulic Down Feed of Bow
- Hydraulic Raising of Bow
- Blade Tension Gauge
- Coolant System
- EVS – Electronic Variable Speed for Blade
- Powered Material Feed by Rollers
- Double Columns for High Rigidity
