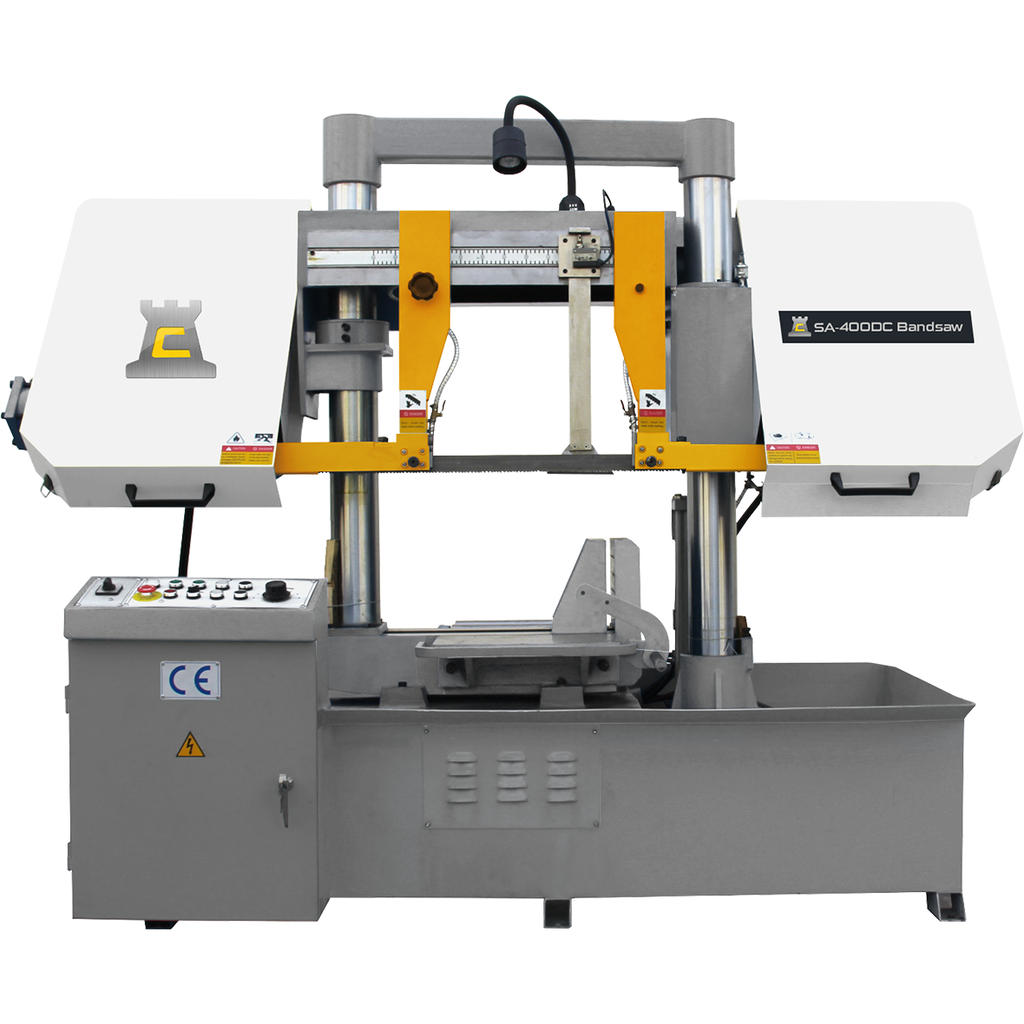

Chester SA-400DC Bandsaw
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Cutting Capacity Round: 400mm
Sawing Machines
The Chester SA-400DC Semi Automatic Bandsaw has a cutting capacity of almost 16” and is built with two cast iron columns for rigid accurate cutting.
This saw is fitted with electronic variable blade speed and blade tension gauge which allows the user to set the correct cutting speed. The semi auto function includes auto shut off, auto raising of bow and hydraulic vice.
• Work Lamp
• Hydraulic Vice
• Adjustable Hydraulic Down Feed of Bow
• Hydraulic Raising of Bow
• Blade Tension Gauge
• Coolant System
• Semi-Automatic Function
• Powered Material Feed by Rollers
• EVS – Electronic Variable Speed for Blade
• Double Columns for High Rigidity
• Material Length Stop
| Cutting Capacities |
|
| Capacity @ 0° |
|
| Round | 400mm |
| Square | 400x400mm |
| Technical Specifications |
|
| Blade Dimensions | 41×1.3x5000mm |
| Motor Power | 3.0kw(4hp)
4.0kw(5.4hp) |
| Table Height | 610mm |
| Machine Dimensions | 2700x1350x2150mm |
| Net Weight | 1325kg |
| Gross Weight | 1455kg |
Features
- Work lamp
- Hydraulic vice
- Adjustable hydraulic down feed of bow
- Hydraulic raising of bow
- Blade tension gauge
- Coolant system
- Semi-Automatic function
- Powered material feed by rollers
- EVS – Electronic variable speed for blade
- Double columns for high rigidity
- Material length stop
