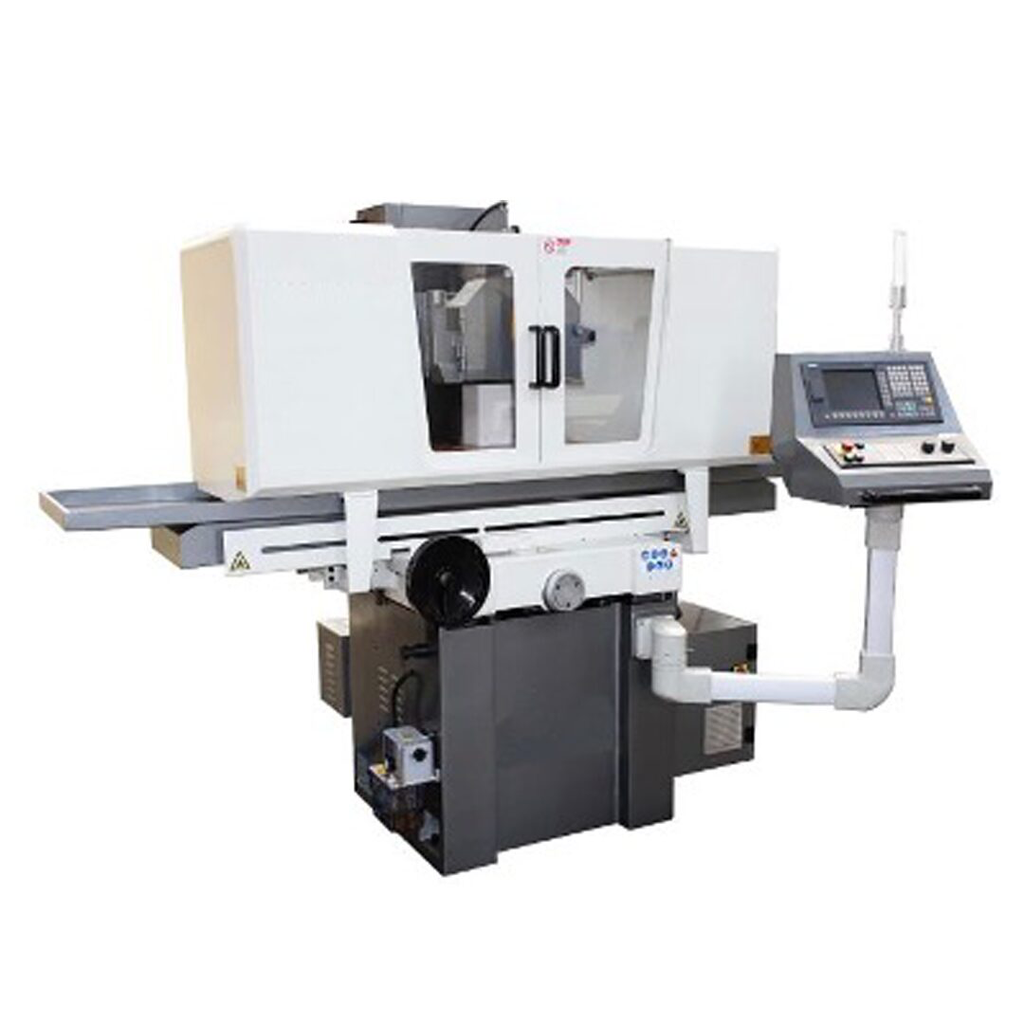

Our CNC Grinder features an electromagnetic chuck, MPG, and linear guideway.
| Technical Specifications | ZB1632CNC |
| Table Size | 406 x 835mm |
| Magnetic Chuck Size | 400 x 800mm |
| Max. Distance from Spindle Centre to Table | 580mm |
| Max. Loading Capacity (including chuck) | 500kg |
| X Axis Feed |
|
| Feed Speed | 5-18m/min/CNC-3 (5-25/CNC-2) |
| Micro Feed Rate | 0.001mm/CNC-3 |
| Z Axis Feed |
|
| Feed Speed | 0-1m/min |
| Micro Feed Rate | 0.001mm/CNC-3 |
| Y Axis Feed |
|
| Feed Speed | 0-1m/min |
| Micro Feed Rate | 0.001m/min |
| Spindle Rotating Speed | 1450r/min(50HZ)/1750r/min(60HZ) |
| Grind Wheel Size | 350 x 40 x 127mm |
| Spindle Motor Power | 4kw |
| Floor Space (L x W x H) | 4200 x 2400mm |
| Gross Weight | 3700kg |
Standard Accessories
• Siemens 808D
• Electrical Magnetic Chuck
• Coolant Tank
• Balancing Arbor
• Wheel Flange and Wheel
• Wheel Extractor
• Standard Dressing Wheel (diamond pen not included)
• Levelling Wedge
• Fully Enclosed Guard
• MPG (Y, Z Axis or XYZ Axis)
• X/Y/Z Axis Linear Guideway
• X/Y/Z Axis Ball Screw
• Spindle
• Spindle Motor
• Toolbox
• Operation Manual
Optional Accessories
• Siemens 828D system (2 axis or 3 axis)
• Balancing Stand
• Magnetic Separator
• Dust Extractor with Coolant Tank
• Parallel Dresser
• Magnetic Separator and Paper Filter with Coolant Tank
