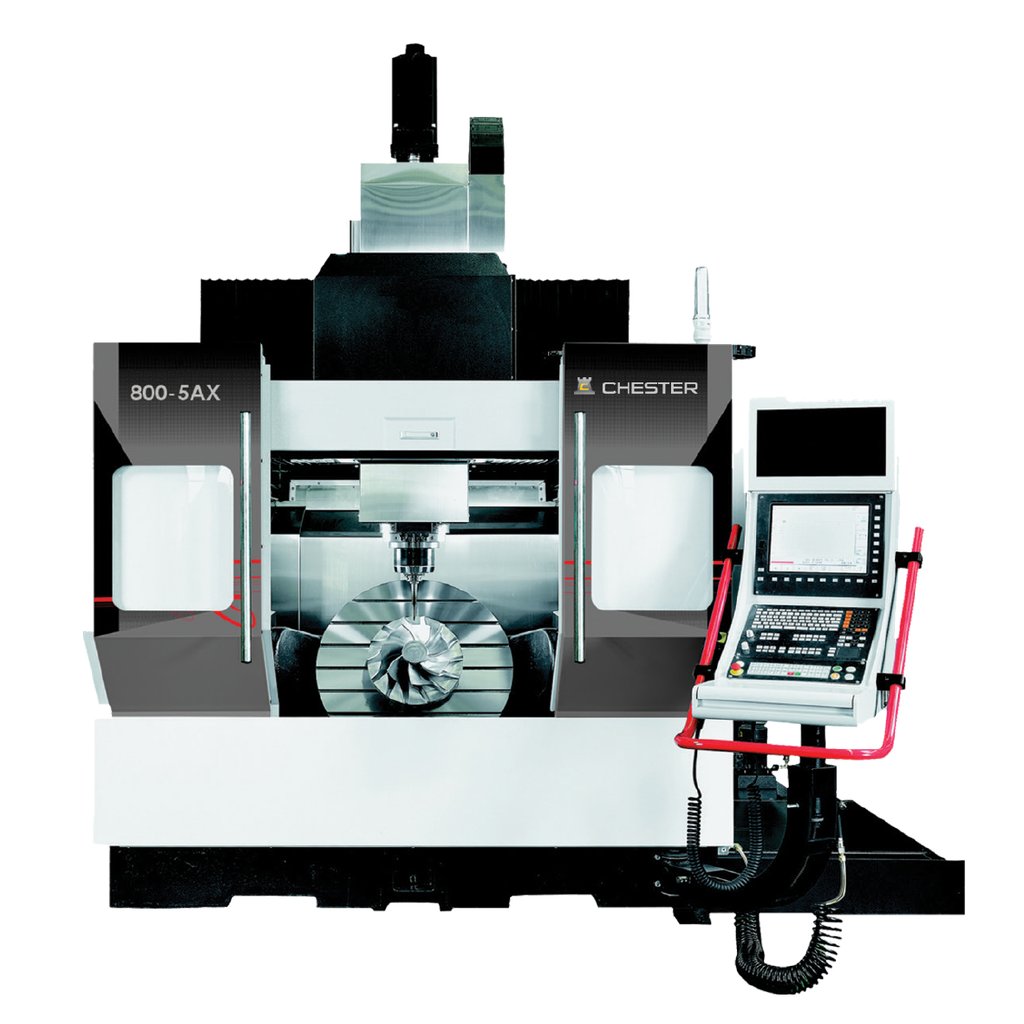

CHESTER 800T-5AX SERIES • 5 AXIS CNC MILLING MACHINE
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Spindle Taper: #40 / HSK 63T
CNC Machining Centres
Powerful High Precision 5 Axis Machining with Superior Performance.
The 800-5AX Series CNC Mill is the ideal machining platform for high speed process and intensive manufacture in all sectors.
• High performance control system
• High speed contour control
• Optimal surface precision
• Short machining time
• Accurate
• Driven by a highly dynamic 5 Axis
• Capable of machining complicated pieces
| Technical Specifications | Chester 800T-5AX (with Turning Function) |
| Travel |
|
| X-Axis Travel | 800mm |
| Y-Axis Travel | 900+330mm |
| Z-Axis Travel | 620mm |
| Distance from Spindle Nose to Table Surface | 50-670mm |
| Worktable Dimensions | 800mm |
| Worktable Load | 1000/500(Milling/Turning) |
| Feed System |
|
| Rapid Feed(X/Y/Z) | 48/48/48m/min |
| Cutting Feed(X/Y/Z) | 0.001-20m/min |
| Motor |
|
| Spindle Motor | 30kw(40.8hp) |
| X/Y/Z Motor Power | 4.4/3.77/8.17kw(5.98/5.13/11.11hp) |
| B/C Axes Motor | 22.2/74.3kw(30.19/101.5hp) |
| Accuracy Standards | ISO 10791-4
ISO 230-2 |
| Positioning Accuracy | 0.008mm |
| Repeatability Accuracy | 0.004mm |
| B/C axis 0.001 – Positioning | 10” |
| B/C axis 0.001 – Repeatability | 5” |
| Rotary Axis |
|
| A-Axis Rotation Angle | ‘±120°degree |
| C-Axis Rotation Angle | 360°degree |
| A-Axis Max.Speed | 75rpm |
| C-Axis Max.Speed | 100rpm |
| Spindle System |
|
| Spindle Transmission Type | Direct Drive(standard)/Built-in(0P)/Two Stage Gearbox |
| Spindle Speed(max.) | 18000rpm |
| Max.Torque | 87.9/123.8Nm |
| Tool Handle Spec. | #40/HSK 63T |
| ATC System |
|
| Magazine Capacity | 32T(Standard) |
| Tool Change Method | DRUM |
| Max.Tool Dis./with Adjacent Tool | 75/125mm |
| Max.Tool Length | 300mm |
| Max.Tool Weight | 7kg |
| Control System |
|
| Controller | Siemens 840D |
| Other |
|
| Chip Conveyor | Chain Type |
| Machine Occupancy(LxWxH) | 4528x2240x3605mm |
| Machine Weight | 21000kg |
STANDARD ACCESSORIES
• Siemens 840Dsl (5-Axis/5-Interactive)
• Spindle Oil Cooler
• Spindle Motor Cooling System
• Coolant Through Spindle
• ZF Gearbox
• Spindle Programmable Air Blow System
• Chain-type Chip Conveyor
• Chip Collector
• Water Gun
• Air Gun
• Manual Top Cover
• Full Enclosure
• Large Worktable
• Front Door/Safety Switch/ATC Backdoor
• ATC
• 3-Axis Roller Type Linear Guideways
• 3 Axes Linear Scales (Heidenhain)
• A Axes Linear Scales (Heidenhain)
• C Axes Linear Scales (Heidenhain)
• Z-Axis Motor System with Brake
• Worklight(LED)
• Alarm Light(LED)
• M30 Automatic Shutdown System
• Air Conditioner
• Air Condition Software for TNC-640 )
OPTIONAL ACCESSORIES
• Spindle Speed-15000rpm
• Worktable Washing System
• Oil Path Tool Handle Stopper
• Coolant Cooling System
• Programmable Top Cover
• Laser Tool Length Measuring
• Wireless Workpiece Measuring
• Worktable Clamp Air Hydrualic Source
• Increased Tool Magazine Capactiy
• Heidenhain TNC-640 (5-Axis/5-Interactive)
• Centering Calibration Function
• Oil Demister System
• Rotary Window
