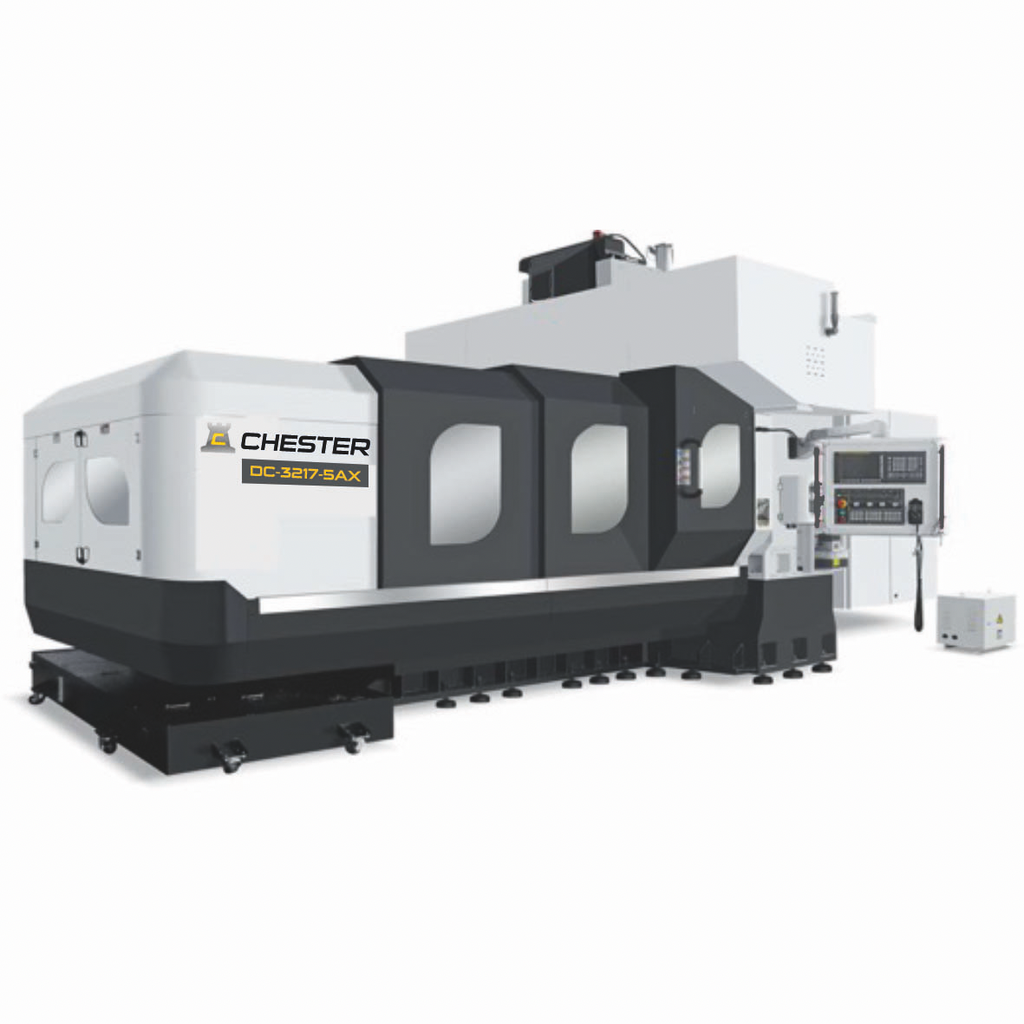

CHESTER DC-3217-5AX DOUBLE COLUMN MACHINING CENTRE WITH 5 AXIS HEAD
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Table Size: 3200 x 1600mm
Spindle Taper: ISO50
CNC Machining Centres
The Chester DC-3217-5AX machine gives you large capacity with 5 sided machining of complex parts.
This double column machine can support up to 10,000kg table load and has a maximum component size of 3200mm in X and 1750mm in the Y Axis.
The Chester DC-3217-5AX 5 Axis CNC machine comes standard with options, coolant through spindle, Renishaw table and spindle probes, chip conveyors and automatic 5 axis head and tool change.
| Technical Specifications | DC-3217-5AX |
| X Axis Travel（Work-Table | 3200mm |
| Y Axis Travel（Saddle | 2000mm |
| Z Axis Travel（Spindle Head | 1000mm |
| Standard Controller | Fanuc 0I MF |
| Distance From Spindle Nose To Table | 500-1500mm |
| A Axis indexing | 1° |
| A Axis accuracy | ± 5 Second |
| A Axis Rotation range | ± 110° |
| C Axis indexing | 1° |
| C Axis accuracy | ± 5 Second |
| C Axis Rotation range | -90–+270° |
| Distance Between Columns | 1750mm |
| Table Size (Length×Width) | 3200×1600mm |
| Max. Table Load | 10000Kg |
| T Slot Size（Width×Distance×Quantity) | 22×180×8mm |
| Spindle Taper | ISO50 |
| Max. Spindle Speed | 8000rpm |
| Swiveling head max. speed | 3500rpm |
| Spindle Motor Power（Continual Working/Max) | 22/ 57.6 Kw |
| Spindle Torque （Continual Working/Max) | 770/1892N.M |
| Rapid Traverse（X Axis) | 20000mm/min |
| Rapid Traverse （Y Axis | 20000mm/min |
| Rapid Traverse（Z Axis | 12000mm/min |
| Cutting Feed Rate On X/Y/Z | 1-10000mm/min |
| ATC Type Arm/ | Chain Type |
| Tool Capacity | 32Pcs |
| Max. Tool Diameter | Φ110 /Φ225mm |
| Max. Tool Length | 300mm |
| Max. Tool Weight | 20Kg |
| Accuracy VDI/Dgq3441 |
|
| Full Travel Positioning Accuracy | P 0.025mm |
| Repeatability Accuracy | PS 0.020mm |
| Air Pressure | 0.6-0.8Mpa |
| Supply Voltage & Frequency | 3/PE AC380V 50HZ |
| Power Requirement | 60KVA |
| Machine Size(mm) (Length) mm | 8927mm |
| Machine Size(mm) (Width) mm | 5535mm |
| Machine Size(mm) (Height) mm | 4450mm |
| Machine Weight | 28000Kg |
STANDARD ACCESSORIES
• Z axis Travel Change Into 1000mm (Including Column Integrated Raise 200Mm)
• Column Separated Raise Block 300mm
• Full Enclosed Guard With Top And Multi Layer Doors
• CTS System(GTP Gear Box) 20Bar（With Separated Unit）
• Chain Type ATV 32T(With Pneumatic System)
• Spindle 8000rpm
• NC4 Probe
• RMP60 Probe
• Isolated Transformer
• High And Low Power Separated Electric Cabinet
• Rigid Tapping
• Heat Exchanger For Electric Cabinet
• Spindle Air Sealing
• Machining Air Blowing Device
• Working Area Light
• 3 Color Indication Light
• Spindle Chiller
• Portable Mpg
• Coolant System
• Lubrication Unit
• Pneumatic Unit
• Air Gun Flushing Function
• Water Gun Flushing Function
• Tool Kit
• Automatic Power Off
• Chain Type Chip Conveyor
• Coil Type Chip Conveyor
• Adjustable Level Bolts And Foundation Blocks
• Operation Manual
• Safety Door Interlock
• Tool Release Pedal Switch
• Swivel Type Operation Box
OPTIONAL ACCESSORIES
• Coolant through spindle
• Renishaw table and spindle probes
• Chip conveyors
• Automatic 5 axis head and tool change
