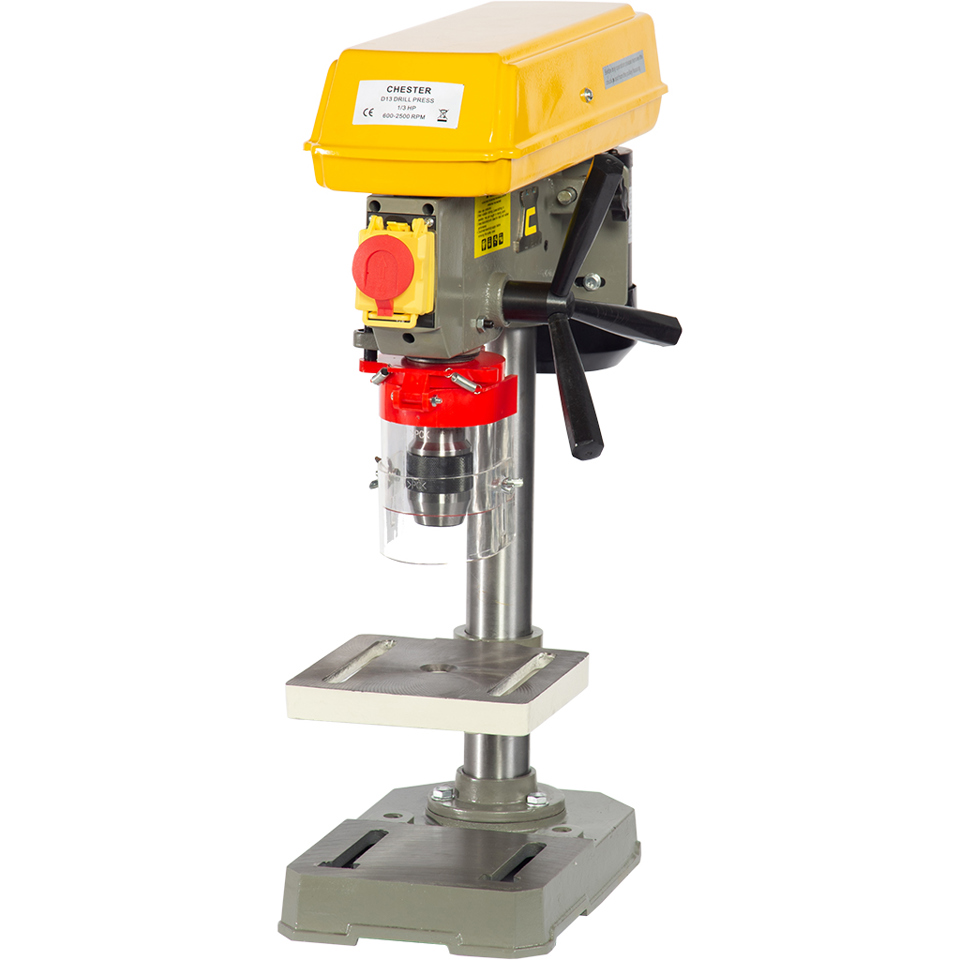

Chester D13 Bench Drill
Drilling Capacity (Steel): 13mm
Drilling Machines
Our D13 bench drill is ideal for workshops. With 13mm capacity and 45° tilting table.
Features:
- Cast Iron Column
- Rigid Construction
- Ergonomic Hand Wheels
| Drill | D13 |
| Drilling Capacity (Mild Steel) | 13mm |
| Drilling Capacity (Cast Iron) | 13mm |
| Tapping Capacity (Mild Steel) | B16 |
| Tapping Capacity (Cast Iron) | B16 |
| Spindle Taper | B16 |
| Distance from Spindle to Column | 105mm |
| Distance from Spindle to Table(min/max) | 30-200mm |
| Distance from Spindle to Base(min/max) | 280mm |
| Rotation of Table along with column | 360° |
| Tilting Angle of Table | 45°-45° |
| Vertical Travel of Table | 170mm |
| Table Size | 165 x 160mm |
| Number and size of T slots on Table | 2/15 x 117mm |
| Distance between T Slots | 112mm |
| Maximum Spindle Traverse(hand/power) | 50mm |
| Number of Spindle Speeds | 5 |
| Range of Spindle Speeds | 600-2500rpm |
| Number of Feed Rates | 1 |
| Power Feed Rates | 50hz |
| Base Size Overall | 310 x 200mm |
| Base Working Surface | 180 x 140mm |
| Number and Size of T Slots on Base | 2/15 x 84mm |
| Distance between T Slots | 112mm |
| Column Diameter | 46mm |
| Main Motor Power | 0.25kW(0.34hp) |
| Overall Height | 575mm |
| Net Weight | 20kg |
| Machine Dimensions | 310 x 200 x 575mm |
Standard Accessories
• Drill Chuck
• Drill Chuck Guard
• Manual & Parts List
