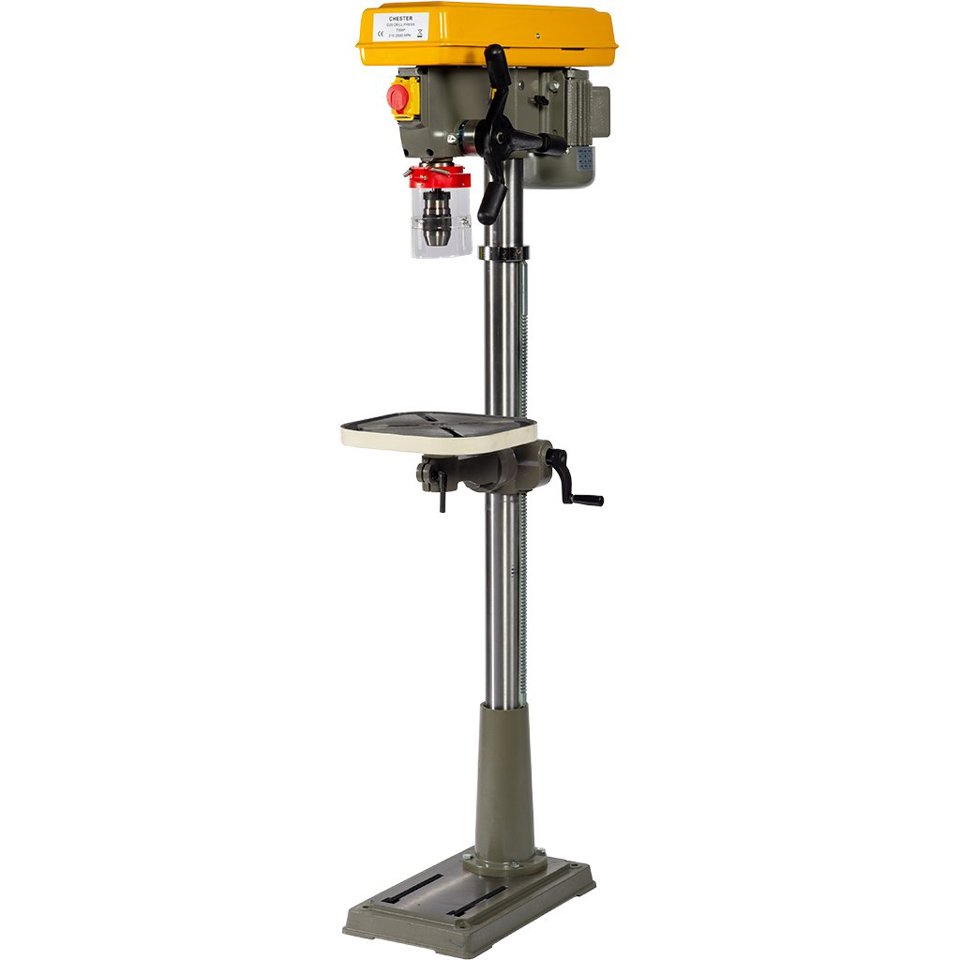

Chester D20 Pillar Drill
Drilling Capacity (Steel): 19mm
Drilling Machines
Our D20 pedestal drill is ideal for workshops, suitable for a range of applications.
Features:
- Cast Iron Column
- Rigid Construction
- Ergonomic Hand Wheels
| Drill | D20 |
| Drilling Capacity (Mild Steel) | 19mm |
| Drilling Capacity (Cast Iron) | 19mm |
| Tapping Capacity (Mild Steel) | MT2 |
| Tapping Capacity (Cast Iron) | MT2 |
| Spindle Taper | MT2 |
| Distance from Spindle to Column | 178mm |
| Distance from Spindle to Table(min/max) | 150-820mm |
| Distance from Spindle to Base(min/max) | 1240mm |
| Rotation of Table along with column | 360° |
| Tilting Angle of Table | 45°-45° |
| Vertical Travel of Table | 670mm |
| Table Size | 290 x 290mm |
| Number and size of T slots on Table | 4/16.5 x 83.5mm |
| Distance between T Slots | 90° |
| Maximum Spindle Traverse(hand/power) | 80mm |
| Number of Spindle Speeds | 12 |
| Range of Spindle Speeds | 120-2580rpm |
| Number of Feed Rates | 1 |
| Power Feed Rates | 50hz |
| Base Size Overall | 460 x 275mm |
| Base Working Surface | 200 x 225mm |
| Number and Size of T Slots on Base | 2/15 x 155mm |
| Distance between T Slots | 134mm |
| Column Diameter | 70mm |
| Main Motor Power | 0.65kW(0.87hp) |
| Overall Height | 1630mm |
| Net Weight | 70kg |
| Machine Dimensions | 460 x 275 x 1630mm |
Standard Accessories
• Drill Chuck
• Drill Chuck Guard
• Manual & Parts List
