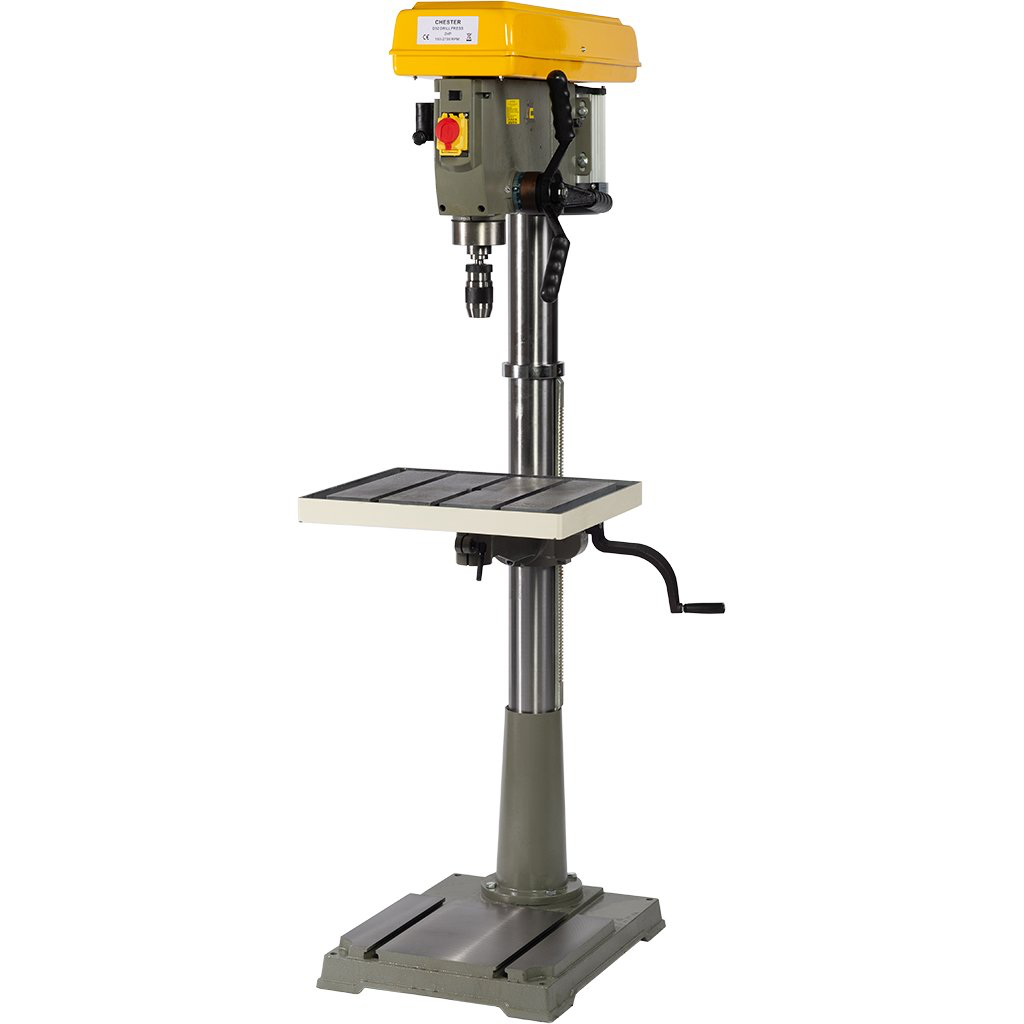

Chester D32 Pillar Drill 415V
Drilling Capacity (Steel): 32mm
Drilling Machines
Our D32 Pedestal Drill is ideal for workshops, with 45° tilting table and 32mm drilling capacity.
Features:
- Cast Iron Column
- Rigid Construction
- Ergonomic Hand Wheels
| Drill | D32 |
| Drilling Capacity (Mild Steel) | 32mm |
| Drilling Capacity (Cast Iron) | 32mm |
| Tapping Capacity (Mild Steel) | MT4 |
| Tapping Capacity (Cast Iron) | MT4 |
| Spindle Taper | MT4 |
| Distance from Spindle to Column | 254mm |
| Distance from Spindle to Table(min/max) | 190-680mm |
| Distance from Spindle to Base(min/max) | 1200mm |
| Rotation of Table along with column | 360° |
| Tilting Angle of Table | 45°-45° |
| Vertical Travel of Table | 490mm |
| Table Size | 475 x 425mm |
| Number and size of T slots on Table | 3/16 x 350mm |
| Distance between T Slots | 110mm |
| Maximum Spindle Traverse(hand/power) | 120mm |
| Number of Spindle Speeds | 12 |
| Range of Spindle Speeds | 150-2700rpm |
| Number of Feed Rates | 1 or 3 |
| Power Feed Rates | 50hz |
| Base Size Overall | 580 x 450mm |
| Base Working Surface | 410 x 330mm |
| Number and Size of T Slots on Base | 2/16 x 330mm |
| Distance between T Slots | 246mm |
| Column Diameter | 92mm |
| Main Motor Power | 1.5kW(2.01hp) |
| Overall Height | 1710 |
| Net Weight | 138kg |
| Machine Dimensions | 580 x 450 x 1710mm |
Standard Accessories
• Drill Chuck
• Drill Chuck Guard
• Manual & Parts List
