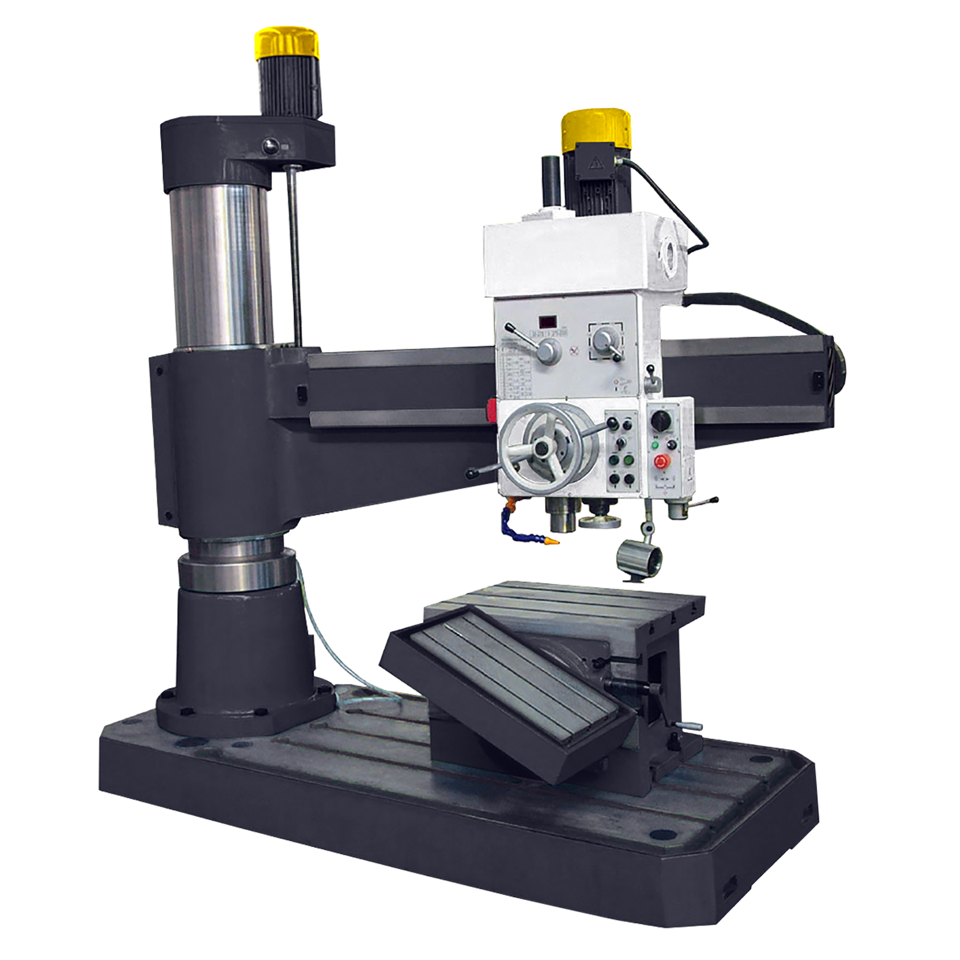

Kitchen & Walker G50 x 1400VS Radial Drilling Machine
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Drilling Capacity (Steel): 50mm
Distance from Spindle to Column (Max.): 1400mm
Drilling Machines
A precision drilling machine with DC Brake and coolant system.
Features:
- D.C. Injection Brake
- Digital Speed Read Out
- T Slotted Box Table
- Coolant System
- Low-Volt Work Light
- Ground and Hardened Guideways
- Arm Elevation via Screw and Motor
- Full Hydraulic Clamping
- Variable Speed Spindle with Inverter Drive
- High/Low Gears Give High Drilling Torque
- Clamping of Column, Arm and Drilling Head Simultaneous or Separate
- Pressurised Lubrication
| Model | G50 x 1400VS |
| Drilling Mild Steel | 50mm |
| Drilling Cast Iron | 60mm |
| Tapping Mild Steel | 40mm |
| Tapping Cast Iron | 46mm |
| Spindle Taper | MT5 |
| Distance from Spindle to Column(min/max) | 350-1400mm |
| Distance from Spindle to Base(min/max) | 350-1200mm |
| Rotation Arm Around Column | ±180° |
| Vertical Travel of Arm | 570mm |
| Size of Box Table | 630 x 450 x 450mm |
| Number and Size of T Slots on Table | 5/22mm |
| Distance between T Slots | 150mm |
| Maximum Spindle Traverse(hand/power) | 280mm |
| Number of Spindle Speeds | step less |
| Range of Spindle Speeds | 38-275rpm
275-2000rpm |
| Number of Feed Rates | 6 |
| Range of Power Feed Rates | 0.06-0.85mm/r |
| Base Size Overall | 2050 x 920 x 180mm |
| Base Working Surface | 1400 x 900mm |
| Number and Size of T Slots on Base | 3/28mm |
| Distance between T Slots | 200mm |
| Column Diameter | 320mm |
| Main Motor Power | 3kW(4.02hp) |
| Coolant Pump Motor | 0.18kW(0.24hp) |
| Table Elevation Motor | 1.1kW(1.47hp) |
| Clamping/Hydraulic Motor | 0.75kW(1hp) |
| Overall Height | 2480mm |
| Footprint(LxW) | 2195 x 970mm |
| Net Weight | 3200kg |
Standard Accessories:
• Work Light
• Coolant System
• Box Work Table
• Fixing Bolts
• Reducing Sleeves
• D.C. Brake
• Manual and Parts List
