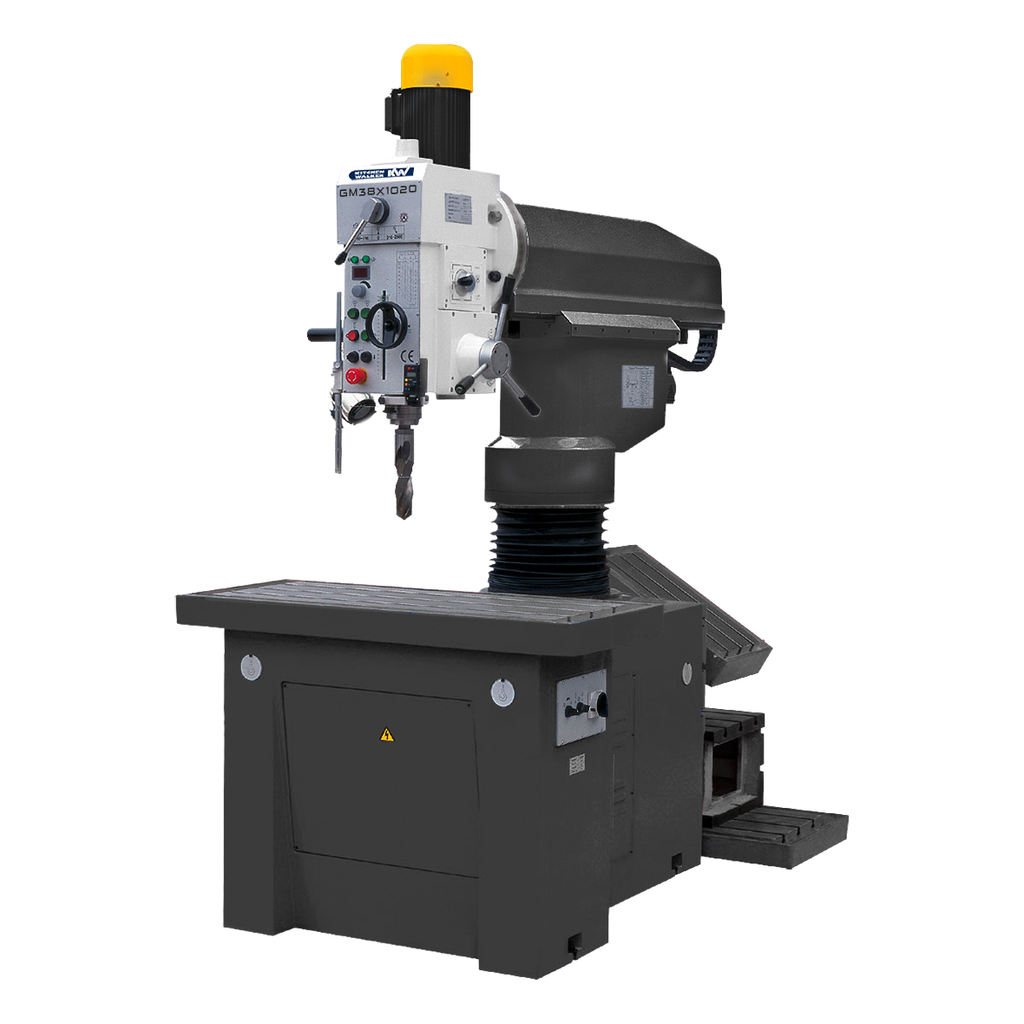

The GM38 x 1020 Universal Drill is ideal for machining. Complete with drawbar, drill drift, and reducing sleeve.
Features:
- Heavy Duty Construction
- 40mm Drilling Capacity (steel)
- High Power Motor
- Head Tilt 90°
- Spindle Depth Gauge
| Max.Drilling Diameter for Steel | 40mm |
| Max.Tapping Diameter | 30mm |
| Max.Milling Cutter Diameter | 80mm |
| Max.Travel of Spindle | 200mm |
| Max.Travel for the Spindle Box in Up and Down Position | 400mm |
| Max.Distance Between Spindle End to the Worktable Surface | 760mm |
| Max Distance between Spindle and Column | 1020mm |
| Min. Distance between Spindle and Column | 450mm |
| Distance between Column Centre Line to the T solt in the Middle of Worktable | 640mm |
| Turning Angle of Spindle Box to the Ram | ±90° |
| Spindle Taper Bore | MT4 |
| Spindle Speed Range | 50-2000r/min |
| Spindle Feed Steps | 6 |
| Spindle Feed Range | 0.08-0.50mm/r |
| Mode of Spindle Feed | Electromagnetism |
| Dimension of Worktable(L×W) | 1200×505mm |
| Diameter of Column | 220mm |
| Power of Motor | 2.2kw(2.9hp) |
| Net Weight | 2600kg |
| Machine Dimension(L×WxH) | 1910×1200×2400mm |
Standard Accessories
• Drill Chuck
• Reducing Sleeve
• Drawbar
• Drill Drift
Optional Accessories
• 125mm Precision Vice
• Cross Worktable (640 x 205mm)
• Milling Cutter and Collet Set
• Milling Cutter
• Base Worktable
• Box Worktable
• Rotating Worktable
