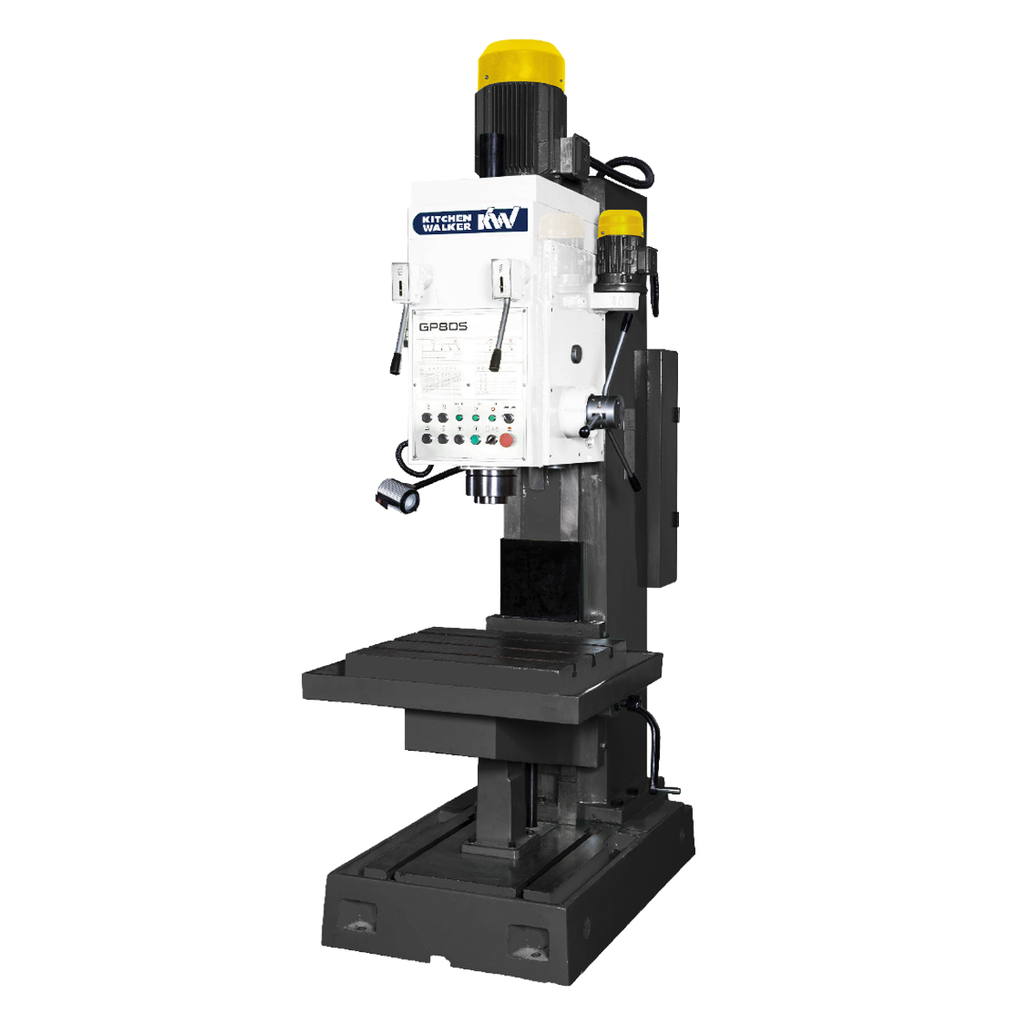

KITCHEN & WALKER GP80S SQUARE COLUMN DRILLING MACHINE
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Drilling Capacity (Cast Iron): 80mm
Drilling Machines
The GP80S Series drill is ideal for machining. Complete with speed control and lever.
| Model | GP80S |
| Drilling Capacity Mild Steel | 63mm |
| Drilling Capacity Cast Iron | 80mm |
| Tapping Capacity Mild Steel | M50 |
| Tapping Capacity Cast Iron | M56 |
| Spindle Taper | MT6 |
| Distance from Spindle to Column | 375mm |
| Distance from Spindle to Table(min/max) | 5/850mm |
| Vertical Travel of Drilling Head | 250mm |
| Vertical Travel of Table | Max.300mm |
| Table Size | 775 x 830mm |
| Number and size of T slots on Table | 3/38 x 37 x 22mm |
| Distance between T Slots | 150mm |
| Maximum Spindle Traverse(hand/power) | 250mm |
| Number of Spindle Speeds | 9 |
| Range of Spindle Speeds | 45-570r/min |
| Number of Feed Rates | 6 |
| Power Feed Rates | 0.11-0.78mm/rev |
| Base Size Overall | 1100 x 660mm |
| Base Working Surface | 600 x 580mm |
| Number and Size of T Slots on Base | 2 , 45 x 45 x 22mm |
| Distance between T Slots | 408mm |
| Column Diameter | 525 x 500 x 2035mm |
| Main Motor Power | 7.5kW(10.05hp) |
| Coolant Pump Motor | 0.09kW(0.1hp) |
| Overall Height | 2550mm |
| Footprint(LxW) | 1100 x 660mm |
| Net Weight | 1960kg |
Standard Accessories
• Drill Chuck
• Taper Sleeve
• Arbor
• Drift
• Wrench
Optional Accessories
• Machine Vice
• Clamp Kit
• Taper Shank Drill Set
