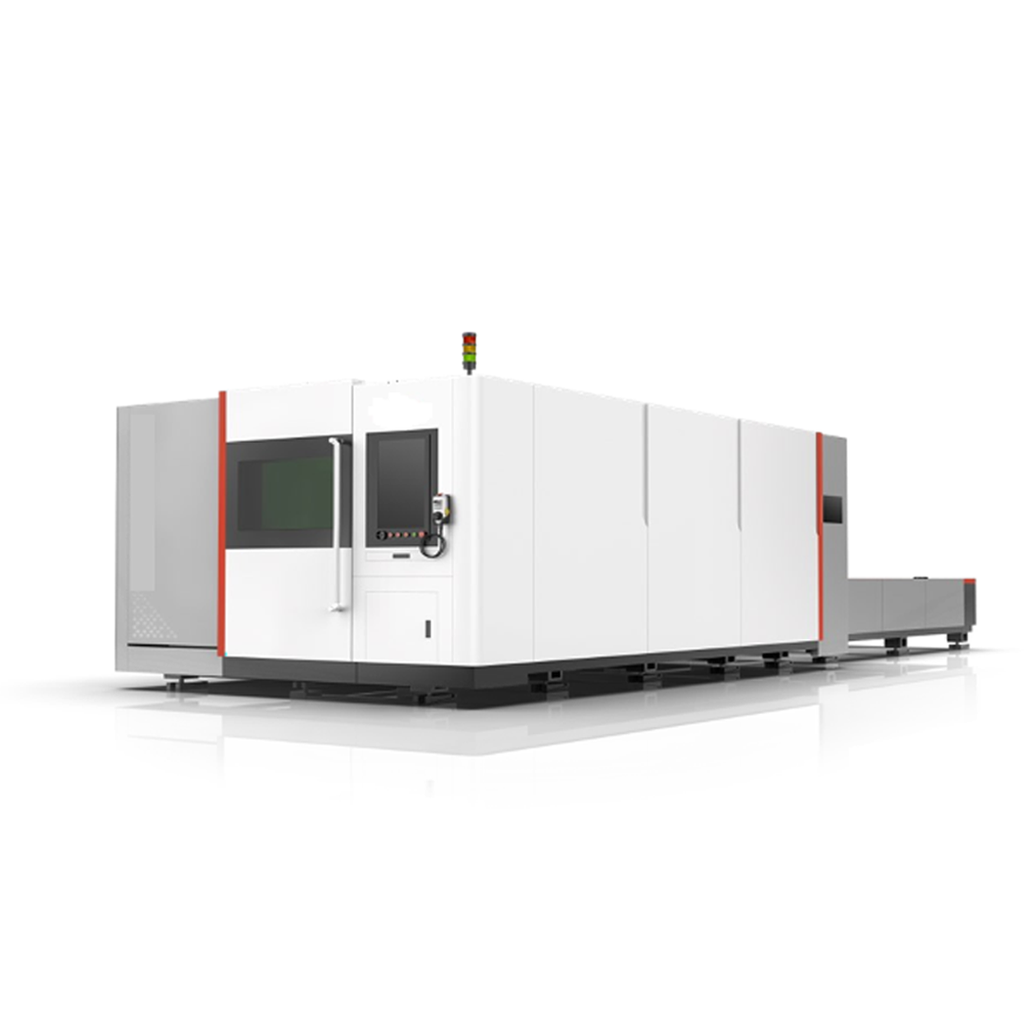

Precision metal cutting machine, high power fibre laser.
| Technical Specifications |
|
| Fiber Laser Source Brand | Raycus RFL6000W |
| Metal Type | 25 mm/25mm/20mm/12mm/8mm |
| Max. Cutting Capacity | 25 mm/25mm/20mm/12mm/8mm |
| Laser wavelength | 1,064±10nm |
| Cutting Head | Raytool Autofocus Cutting Head |
| Focus Lens Dimensions | 150mm |
| Working Table |
|
| Working Table Size | 3000 x 1500 mm |
| Working Table Height | 800mm |
| Maximum Loading Capacity | 3500kg |
| Processing format and working range |
|
| Axial Movements X- Axis | 6048mm |
| Axial Movements Y- Axis | 1524mm |
| Axial Movements Z- Axis | 120mm |
| Axes Movement | 3 Axes Digital Motor System |
| Positioning System | Rack and Pinion – Servo Motor |
| Speed |
|
| Acceleration | 1.5G |
| Axes Speeds (X,Y Traverse Speed ) | 100 m /min |
| Max Axes Speeds X,Y | 120 m /min |
| Accuracy VDI |
|
| Positioning Accuracy | 0.05mm |
| Repeatability Accuracy | 0.03mm |
| Z axis Distance Control | Capacitive High Sensor Unit |
| Power |
|
| Phase | 3 |
| Power supply rated voltage | 380v |
| Frequency | 60Hz |
| Power protection grade | IP54 |
| CNC | Nesting software (Optional) |
| Interface | USB,RJ45 |
| Control Panel | 27 Touch screen |
| Assist Gas | Oxygen /Nitrogen/Dry Air |
| Continues working Time | 24 Hours |
| Dimensions (length × width × height) | 15000mm×3080mm×2500mm |
| Machine Weight | ≤16000KG |
Standard Accessories
• High-power fiber laser cutting machine
• Gantry beam
• Worktable
• Laser Source
• Chiller
• Power Supply (stabilizer)
• Dust removal fan
• Laser cutting head
• Height tracking sensors
• Machine cover
• CNC system
• Transmission system
• Sealing protection system
• Software HYPCUT 8000
• Capacitive vertical heel
• Tracking system
• Electrical system
• Pneumatic system
• Electrical Control cabinet
Optional Accessories
• Peripheral equipment placement direction
• Air compressor
• Dust extractor
