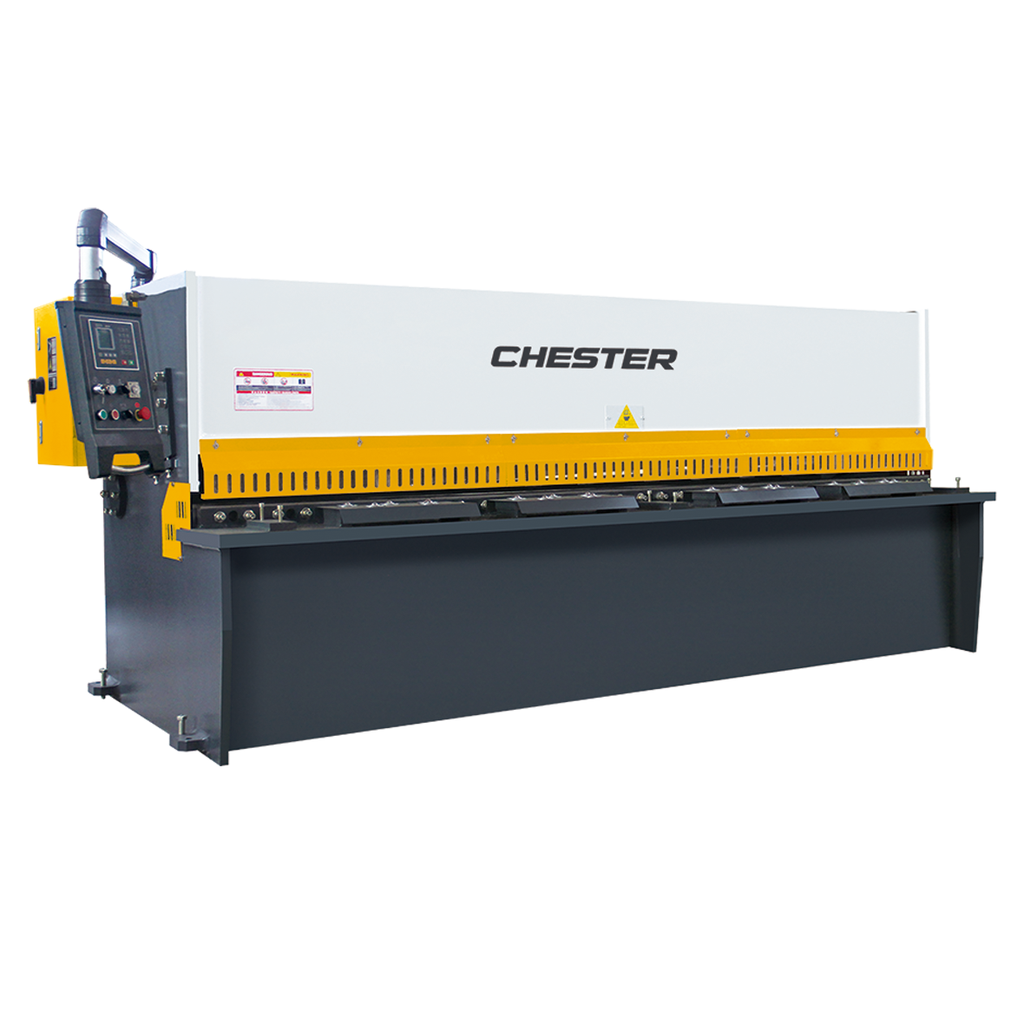

Swing beam shears cut sheet metal by pivoting the upper blade in a smooth arc. This cutting action reduces distortion and delivers clean edges across various sheet thicknesses. The design offers reliable performance with straightforward operation and maintenance.
Max. Cutting Thickness | 4mm |
Max. Cutting Width | 5000mm |
Hydraulic Oil Tank Capacity | 320L |
Stroke Rate | 16 strokes/min |
Back-Gauge Range | 20-800mm |
Cutting Angle | 1.5° |
Main Motor Power | 7.5kW |
Hydraulic Pump Displacement | 25 ml/r |
Machine Weight | 8.5T |
Machine Dimensions (L x W x H) | 5700 x 1900 x 2000mm |
Standard Accessories:
- Estun E21S CNC Controller on Pendant
- Manual Blade Gap Adjustment
- Back Gauge Driven by Ballscrew with Hardened Linear Guide Shafts
- Front Safety Guardrail
- Light Curtain for Rear Protection
- Front Support
- Standard Set of Blades
- Foot Switch
- LED Lighting
- Operation Manual
Optional Controllers:
- ESTUN 200PS with Electrical Blade Gap Adjustment
- ELGO P40T with Electrical Blade Gap and Angle Adjustment
Optional Accessories:
- Linear Guideways for Back Gauge (only for ESTUN 200PS and ELGO P40T)
- Pneumatic Rear Sheet Support (max 8 mm Plate Thickness)
- Extended Back Gauge to 1000 mm
- Air-Cooled (Fan) Cooling System
- Stainless Steel Blades
