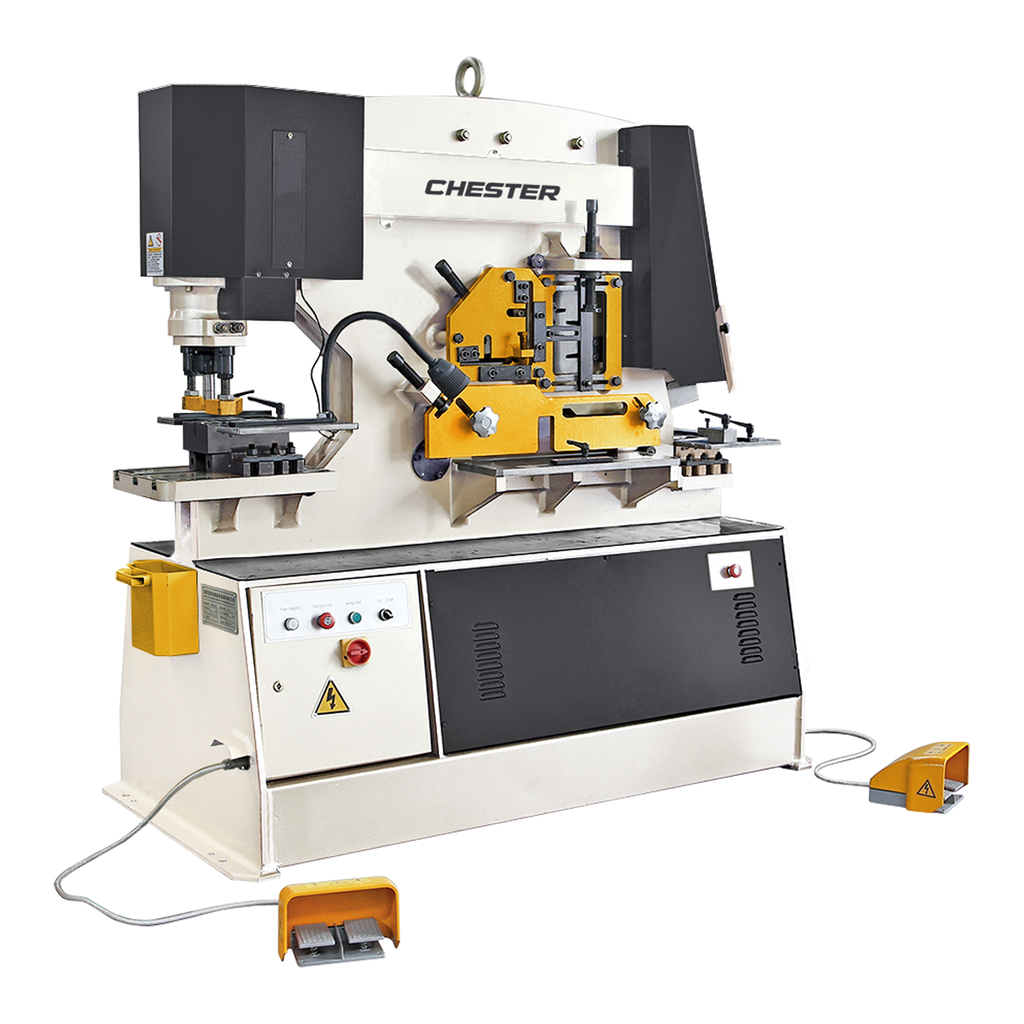

Ironworkers are multi-purpose machines used for cutting, punching, notching, and bending steel. It combines several fabrication jobs into one unit, saving time and workshop space. It’s a practical choice for quick, accurate work on plates, bars, and profiles.
Pressure | 50T |
Max. Shearing Thickness | 12mm |
Material Strength | ≤450 N/mm² |
Shearing Angle | 7° |
Max. Shearing size per Stroke (Thickness x Width) | 12 x 300mm |
Ram Stroke | 35mm |
Stroke Rate | 10-18 strokes/min |
Throat Depth | 115mm |
Max. Punching Thickness | 12mm |
Max. Punching Diameter | 25mm |
Main Motor Power | 4kW |
Machine Weight | 1300kg |
Machine Dimensions (L x W x H) | 950 x 550 x 1800mm |
Standard Accessories:
- One cylinder
- Footpedal
- Adjustable Piston Stroke Distance for Increased Productivity
- Working Light
- Adjustable Length Stop
- Operation Manual
Optional Accessories:
- Dual Valve/Cylinder for Simultaneous Two-Operator Use
- Extra Foot Pedal
- Central Lubrication System
- Electrical Back Gauge
- Punch and Die Sets
- Various other attachments
Standard Blade Sets:
- Flat
- Angles
- Round/Square
- Notching
Optional Blade Sets:
- T Profile Blade
- UPN Channel Blade
- V Notching Blade
- Press Brake Kit
- U Punching Tool
