The fundamental principle of the magnetic bending machine is that it uses an electromagnetic clamp rather than a mechanical clamping system.

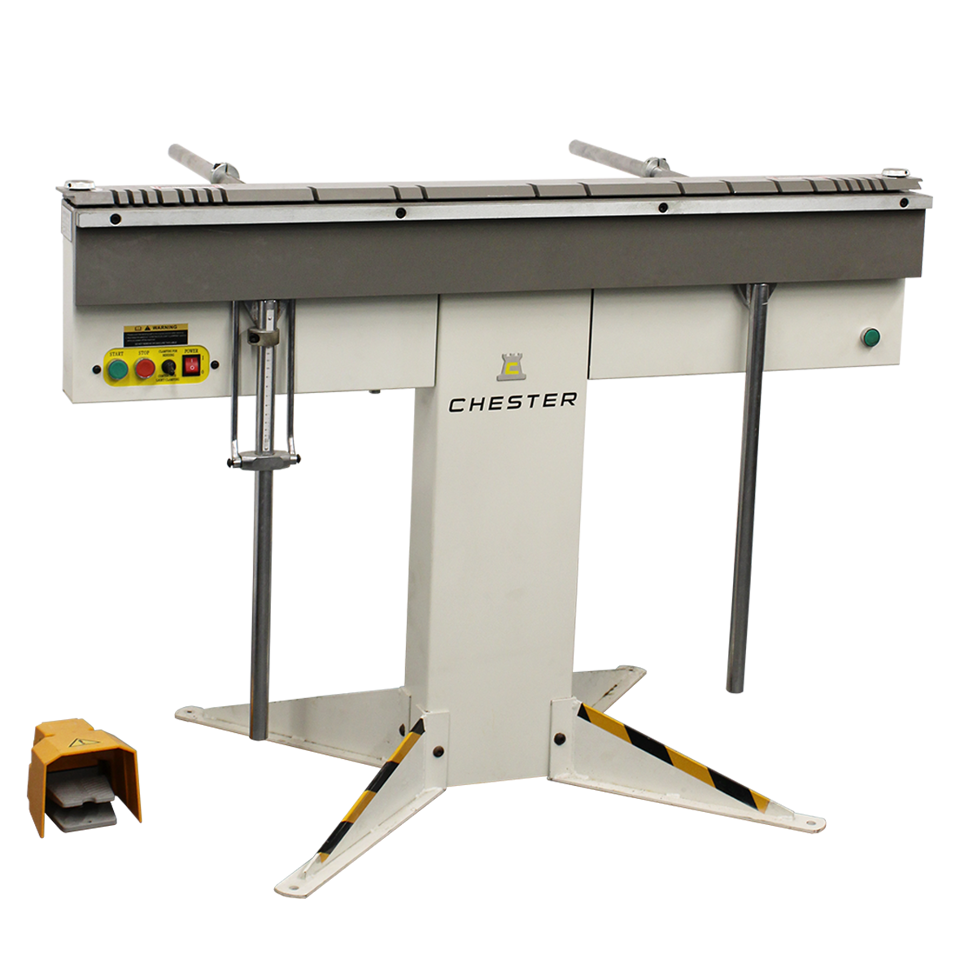

The machine consists of a long electromagnet with a steel clamp bar located above it. Sheet metal is clamped between the two by an electromagnet capable of clamping with a force range of between 3-6 tons. Rotating the bending beam then forms the bend as the sheet is bent around the front edge of the clamping bar.
There are 4 different types of clamping bar used to form different folds.
Model | MB1250 |
Max. Capacity | 1250 x 1.6mm |
Length x Thickness | 4x16ga |
Clamping Force | 6Ton |
Duty Cycle | 30% |
Back Gauge | 640mm |
Foot Switch | Standard |
Nominal Current | 6Amp |
Protection | Thermal Cut-Out 70° |
Bending Edge Length | 1300mm |
Distance between Lifters | 1260mm |
Machine Dimensions (L x W x H) | 1320 x 680 x 935mm |
Net Weight | 142kg |
