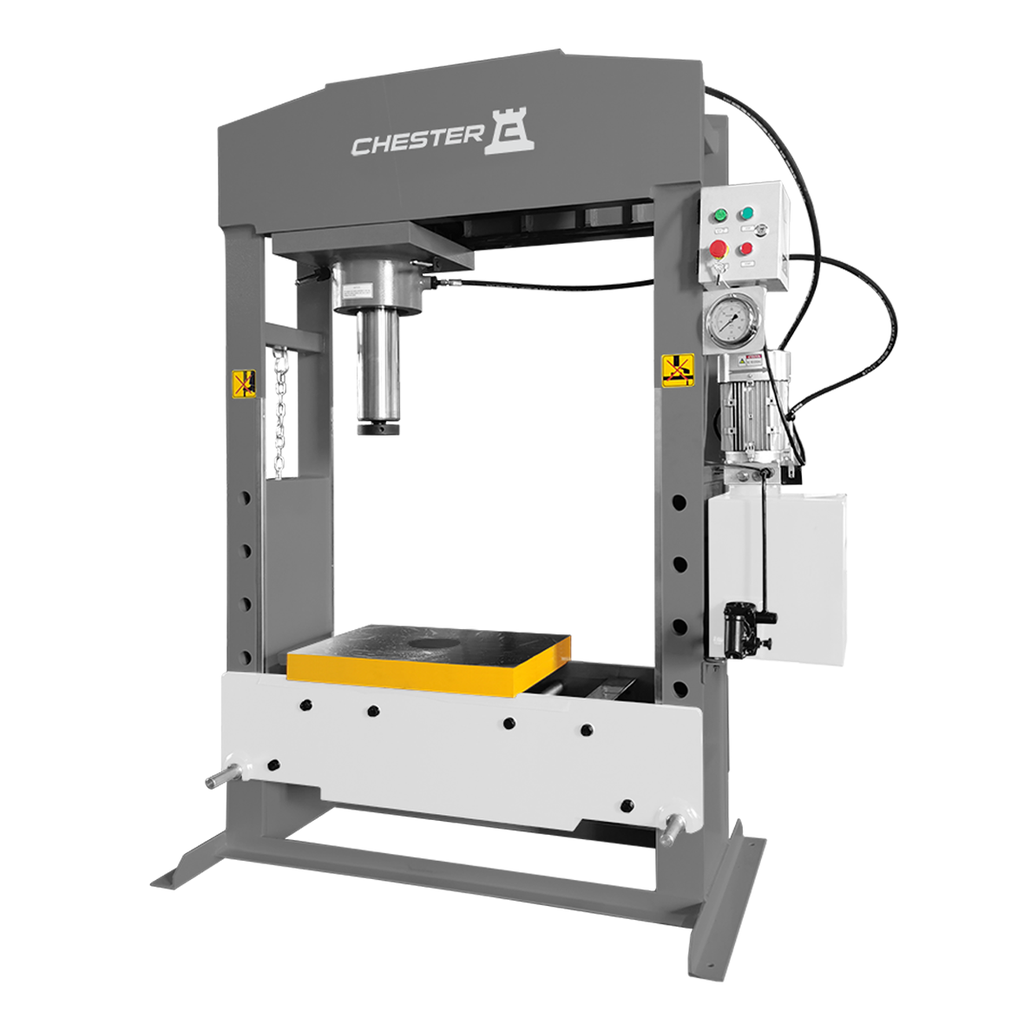

CHESTER WPMH SERIES POWERED/MANUAL HYDRAULIC PRESS, WP100MH

Name: CHESTER WPMH SERIES POWERED/MANUAL HYDRAULIC PRESS, WP100MH
SKU: FAB-WP100MH
Availability: OutOfStock

Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940

Fabrication Machines

Please contact our team for a custom quote and competitive pricing

Price

Features:

Model	WP100MH
Maximum Force	100T
Hydraulic Pressure	Dual Stage – 20/25.5Mpa
Cylinder Stroke	300mm
Ram Speed (Forward/Return)	4/5.7mm/s
Worktable (Size/Inner Hole Diameter)	650x440mm/ Φ120mm
Worktable Travel (Increments x Distance)	5 x 150mm
Motor Power	4kW (5.4HP)
A	1780mm
B	790mm
C	2120mm
D	1100mm
E	930mm
I	597mm
J	640mm
Weight	1150kg

Standard Accessories:

Documents

WPMH Series.pdf
