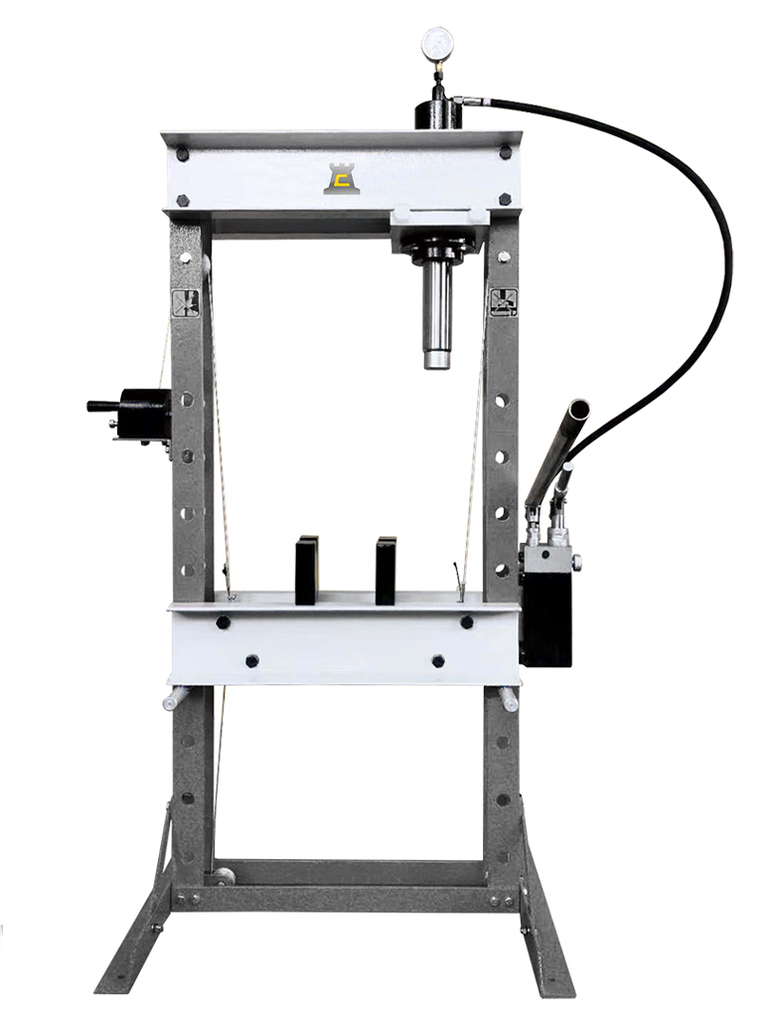

Precision machines ideal for manual operation in any workshop.
Features:
- Manual Hydraulic Operation
- Moveable Cylinder
- User Friendly Maintenance
| Model | WP10M |
| Maximum Force | 10T |
| Hydraulic Pressure | 61.5Mpa |
| Cylinder Stroke | 150mm |
| Worktable | 2 Support Blocks
(180x85mm each) |
| Worktable Travel (Increments x Distance) | 8 x 110mm |
| Power Source | Manual Pump
(High/Low Pressure) |

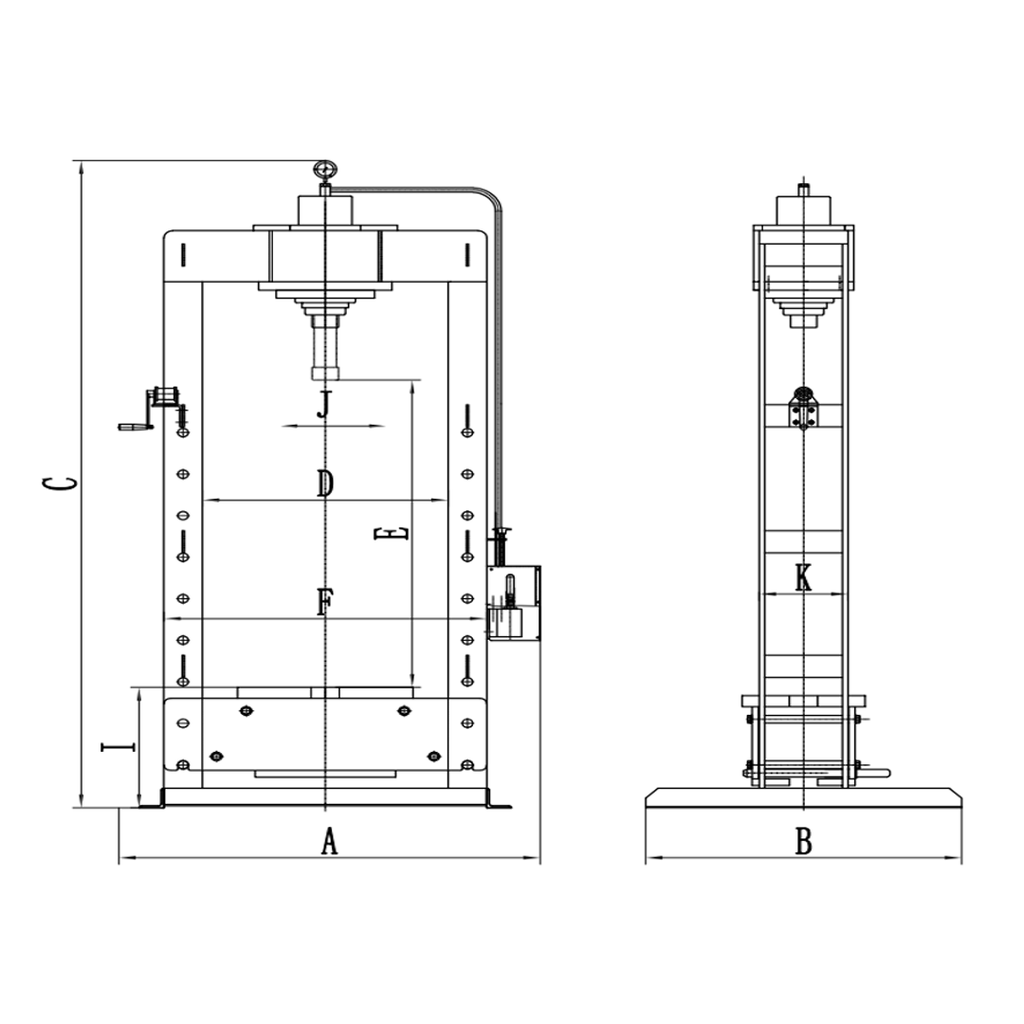

| A | 710mm |
| B | 600mm |
| C | 1770mm |
| D | 440mm |
| E | 1025mm |
| F | 550mm |
| I | 220mm |
| J | 300mm |
| K | 86mm |
| Weight | 95kg |
