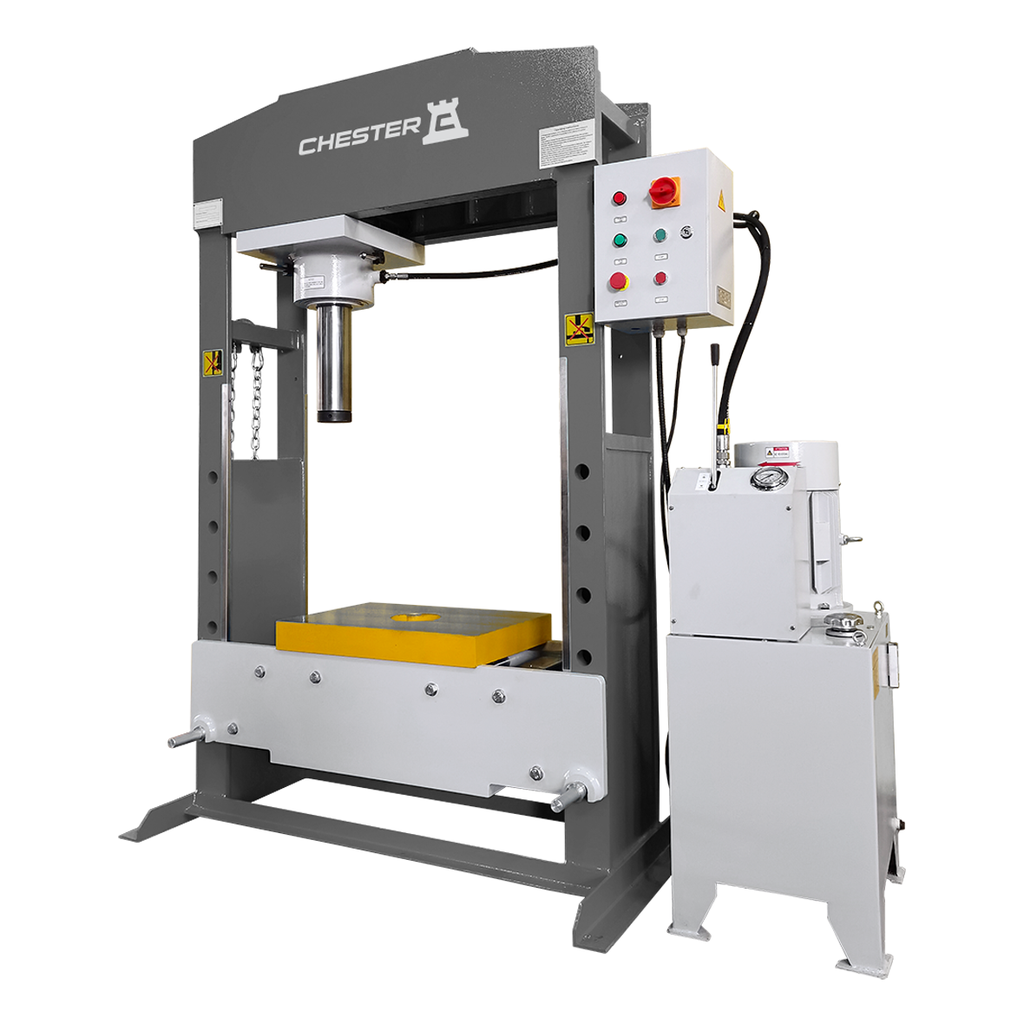

CHESTER WPH SERIES POWERED HYDRAULIC PRESS, WP150H

Name: CHESTER WPH SERIES POWERED HYDRAULIC PRESS, WP150H
SKU: FAB-WP150H
Availability: OutOfStock

Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940

Fabrication Machines

Please contact our team for a custom quote and competitive pricing

Price

Features:

Model	WP150H
Maximum Force	153T
Hydraulic Pressure	30Mpa
Cylinder Stroke	300mm
Ram Speed (Forward/Return)	4.9/6.7mm/s
Worktable Travel (Size/Inner Hole Diameter)	700x530mm/Φ120mm
Worktable Travel (Increments x Distance)	5 x 150mm
Motor Power	7.5kw (10.1HP)

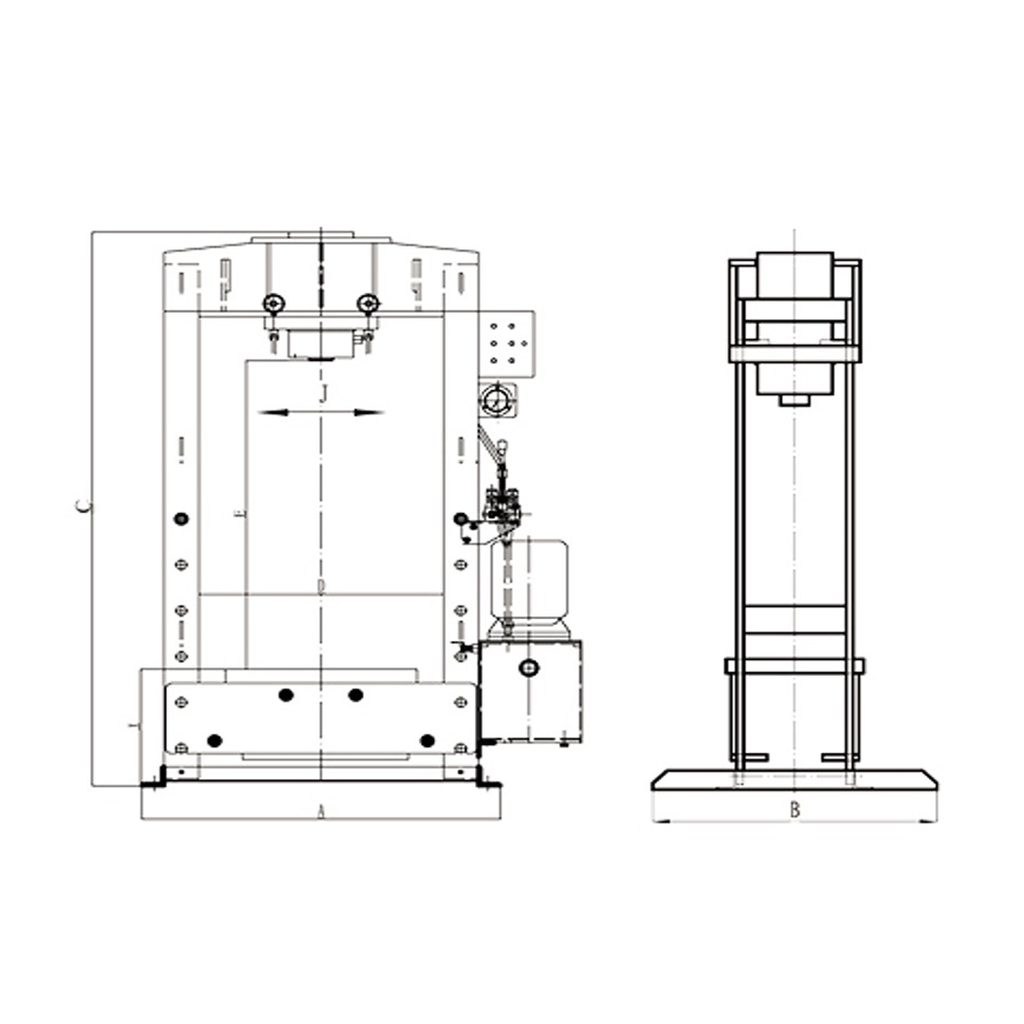

A	1476mm
B	870mm
C	2215mm
D	1100mm
E	890mm
I	599mm
J	580mm
Weight	2220kg

Standard Accessories:

Documents

WPH Series.pdf
