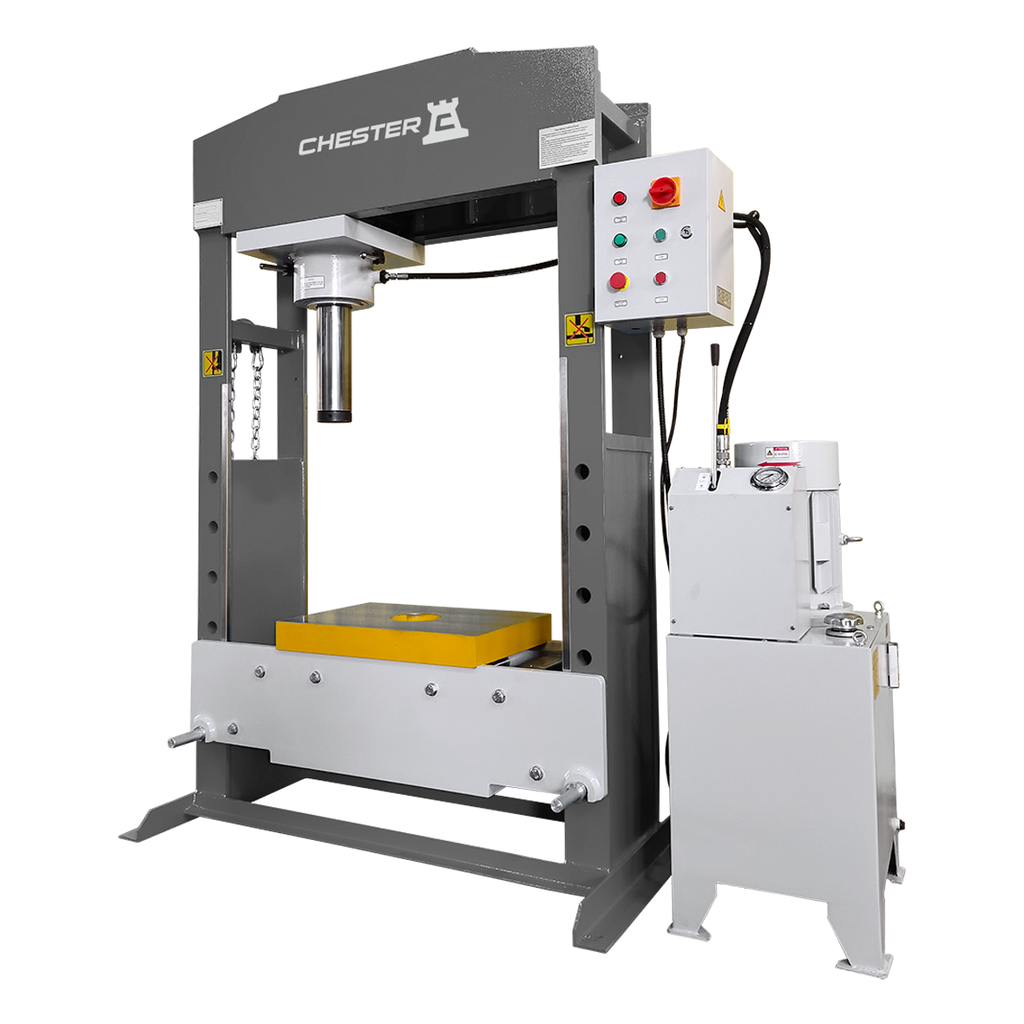

CHESTER WPH SERIES POWERED HYDRAULIC PRESS, WP200H

Name: CHESTER WPH SERIES POWERED HYDRAULIC PRESS, WP200H
SKU: FAB-WP200H
Availability: OutOfStock

Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940

Fabrication Machines

Please contact our team for a custom quote and competitive pricing

Price

Features:

Model	WP200H
Maximum Force	204T
Hydraulic Pressure	30Mpa
Cylinder Stroke	300mm
Ram Speed (Forward/Return)	3.9/5.8mm/s
Worktable Travel (Size/Inner Hole Diameter)	750x550mm/Φ150mm
Worktable Travel (Increments x Distance)	5 x 150mm
Motor Power	7.5kw (10.1HP)

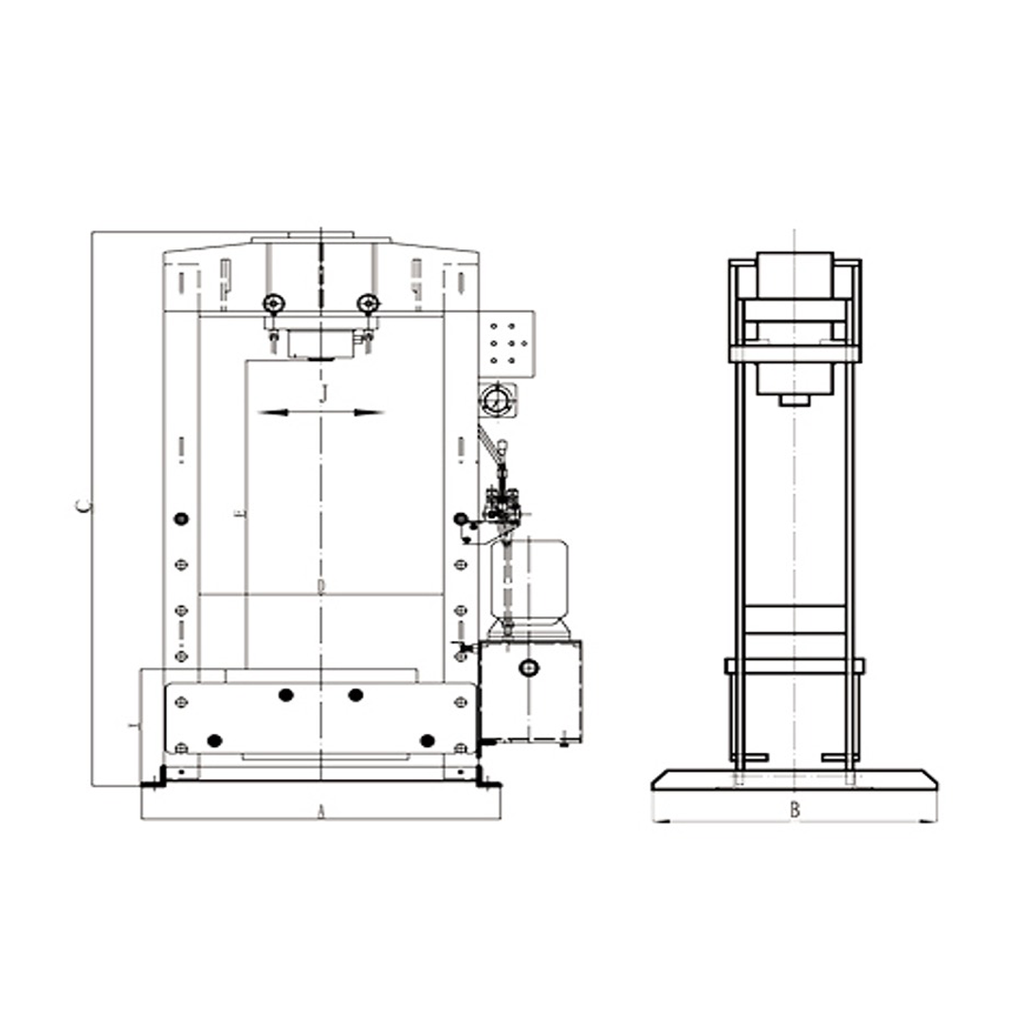

A	1686mm
B	900mm
C	2310mm
D	1300mm
E	864mm
I	669mm
J	730mm
Weight	2830kg

Standard Accessories:

Documents

WPH Series.pdf
