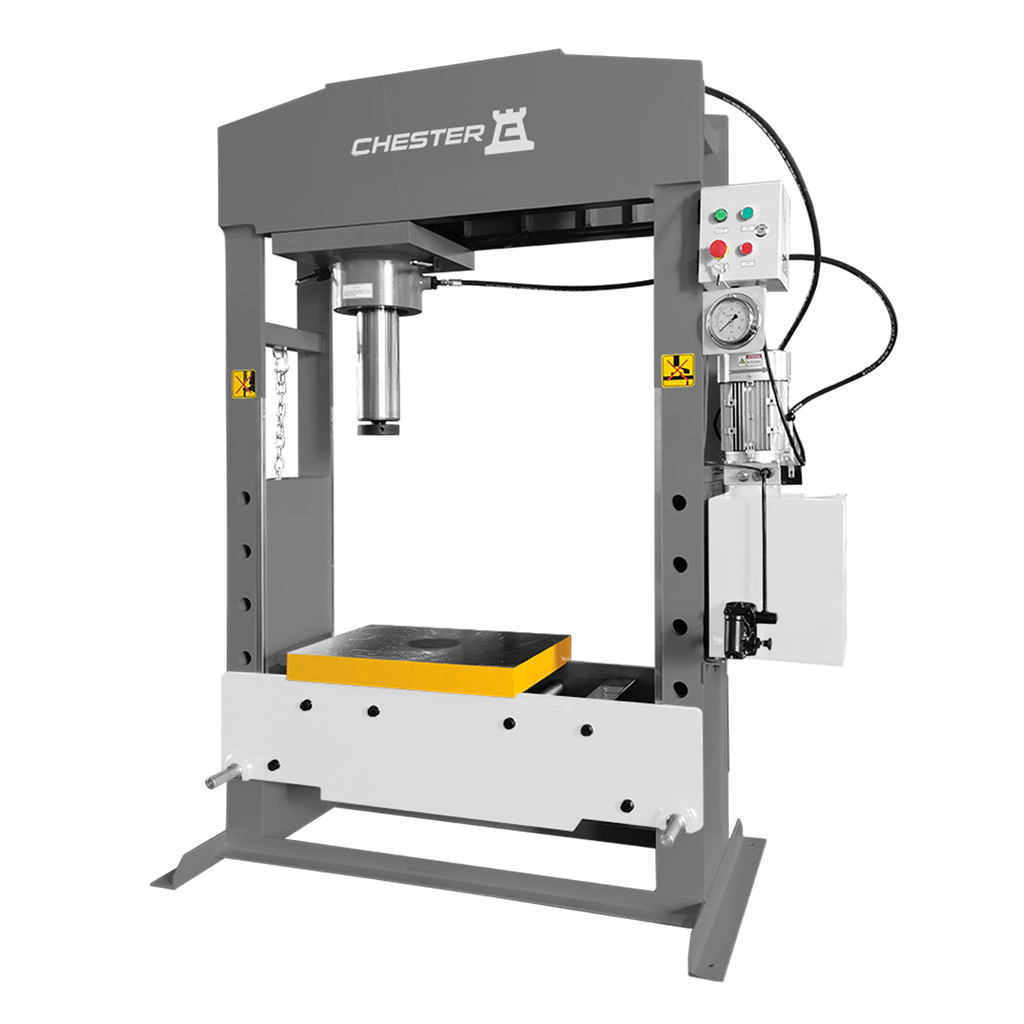

CHESTER WPMH SERIES POWERED/MANUAL HYDRAULIC PRESS, WP200MH

Name: CHESTER WPMH SERIES POWERED/MANUAL HYDRAULIC PRESS, WP200MH
SKU: FAB-WP200MH
Availability: OutOfStock

Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940

Fabrication Machines

Please contact our team for a custom quote and competitive pricing

Price

Features:

Model	WP200MH
Maximum Force	200T
Hydraulic Pressure	Dual Stage – 20/24.5Mpa
Cylinder Stroke	300mm
Ram Speed (Forward/Return)	3.8/5.5mm/s
Worktable (Size/Inner Hole Diameter)	750x550mm/ Φ150mm
Worktable Travel (Increments x Distance)	5 x 150mm
Motor Power	5.5kw (7.4HP)

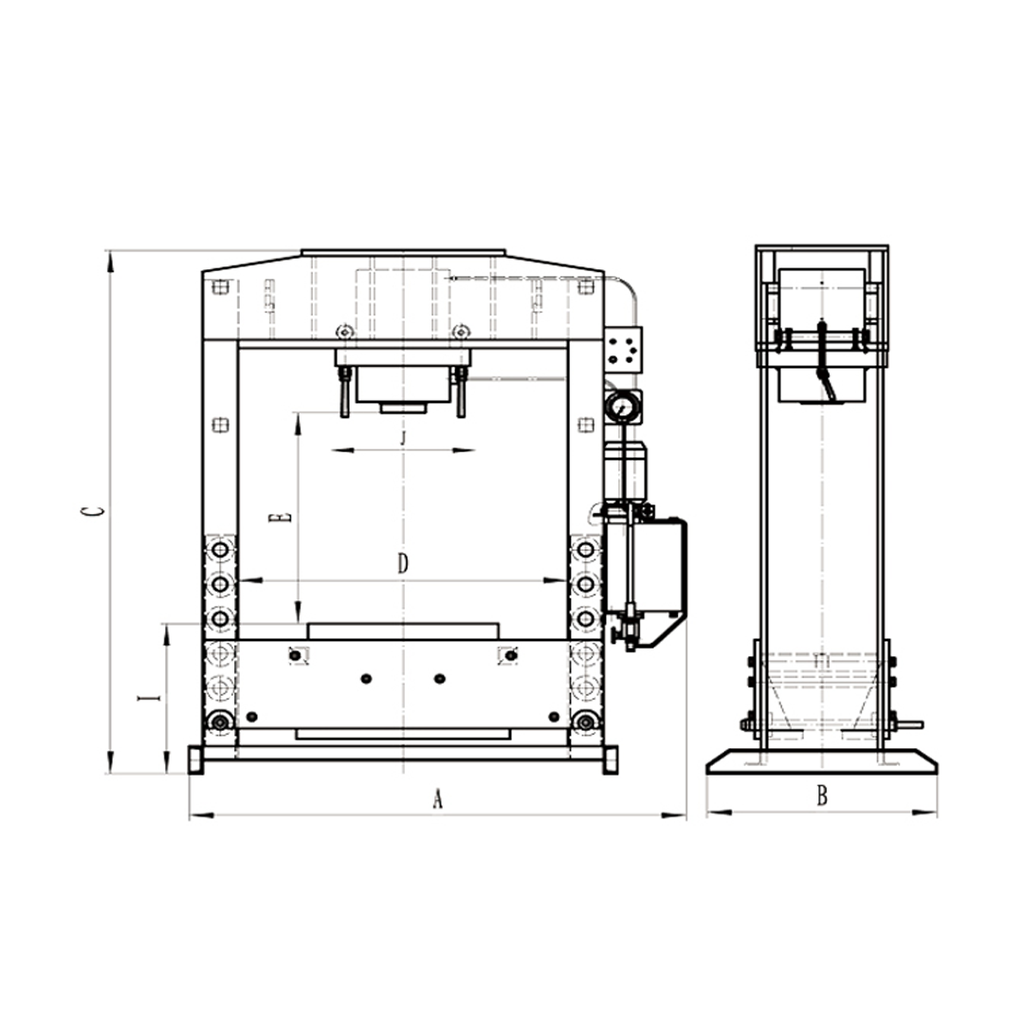

A	1986mm
B	900mm
C	2270mm
D	1300mm
E	866mm
I	669mm
J	730mm
Weight	2750kg

Standard Accessories:

Documents

WPMH Series.pdf
