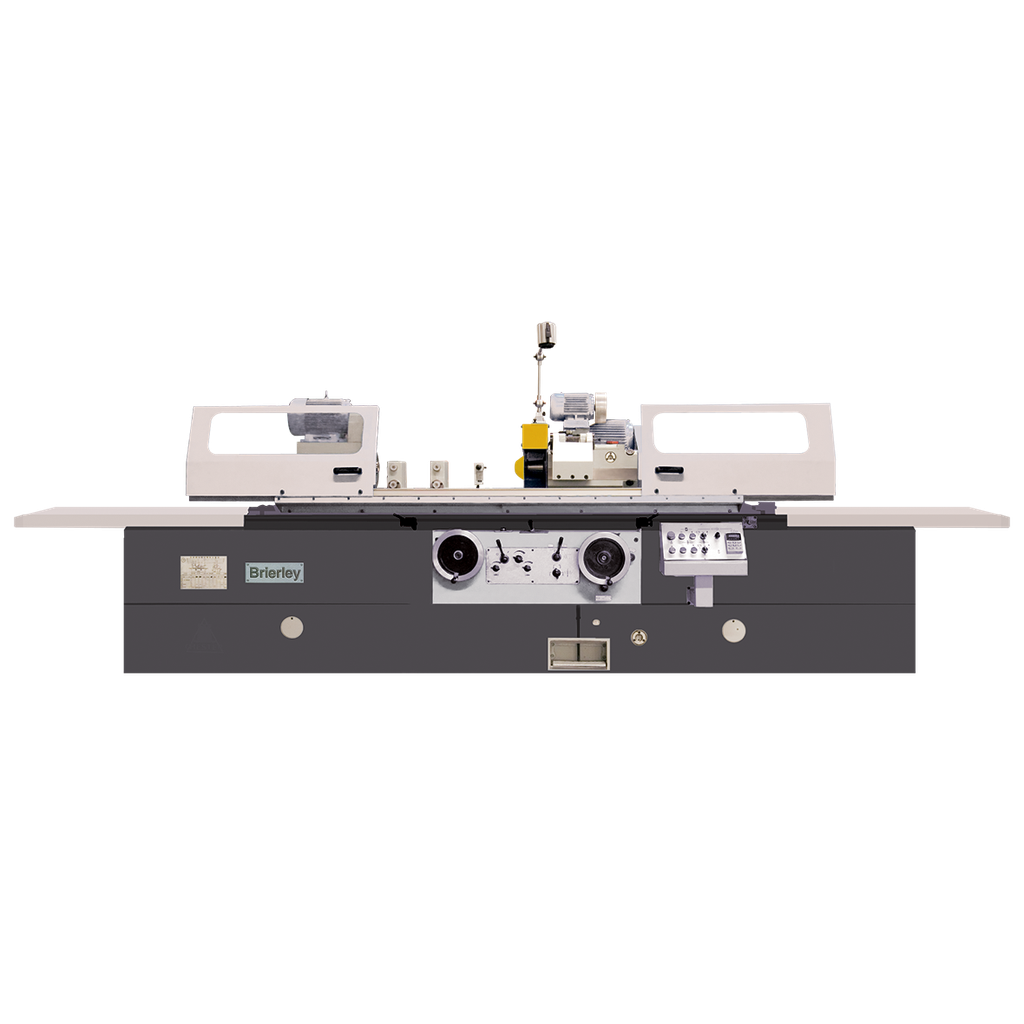

Our UG series cylindrical grinders feature an interver workhead, internal grinding attachment, and wheel dismount tool.
| Model | UG50 |
| Distance Between Centers | 1500/2000/3000mm |
| Center Height | 270mm |
| Dia. Ground (O.D) | 25-500mm |
| Dia. Ground (I.D) | 30-200mm |
| Max. Length Ground(O.D) | 1500/2000/ 3000mm |
| Max.Weight of Workpiece | 1000kg |
| Workhead |
|
| Workhead Swiveling Angle | +90° |
| Center Taper | 6MT |
| Spindle Speed | 50HZ:20-224 r/min |
| Wheelhead |
|
| Wheel Spindle Speed | 1330/665 r/min |
| Wheelhead Rapid Travel | 100mm |
| Max. Travel | 250mm |
| Swiveling Angle | -30° |
| Hand Feed Per. Rev | Rough:4mm
Fine:0.5mm |
| Hand Feed Per. Gra | Rough:0.02mm
Fine:0.0025mm |
| Wheel Size（OD*W*ID) | 500 x 75 x 305mm |
| Peripheral Velocity | 35M/s |
| Internal Grinding Device |
|
| Spindle Speed | 7000 r/min |
| Dimension of Wheel | Max:175x32x32mm, Min:30x25x10mm |
| Table |
|
| Hand Feed Per. Rev | 5mm |
| Longtiudinal Speed Range of Table | 0.1—3 M/min |
| Tailstock |
|
| Center Taper | MT6 |
| Quill Travel | 70mm |
| Motor |
|
| Wheelhead Motor Power | 7.5kw |
| Workhead Motor Power | 4kw |
| Oil Pump Motor Power | 1.1kw |
| Coolant Power | 0.2kw |
| Gross Weight | 9.6/11/14.5T |
| Packing Dimension | 530/600/820 x 260 x 210 cm |
Standard Accessories
• 3 Jaw Chuck
• Periperal Wheel Dresser
• Coolant System
• LED Light
• Grinding Wheel
• Open Type/Closed Steady Rest
• Balancing Stand and Arbor
• Extractor
• Drive Dog
• Centre
• Levelling Wedge
• Inverter Workhead
• Internal Grinding Attachment
• Wheel Dismount Tool
• Hydraulic Tailstock
• Front Guard With Interlock
Optional Accessories
• Magnetic Filter System
• 50L Paper Filter with Magnetic Separator and Coolant
• 100L Paper Filter with Magnetic Separator and Coolant
• 2 Axis DRO
• Radial Dresser
• End Dresser
• Half Center
