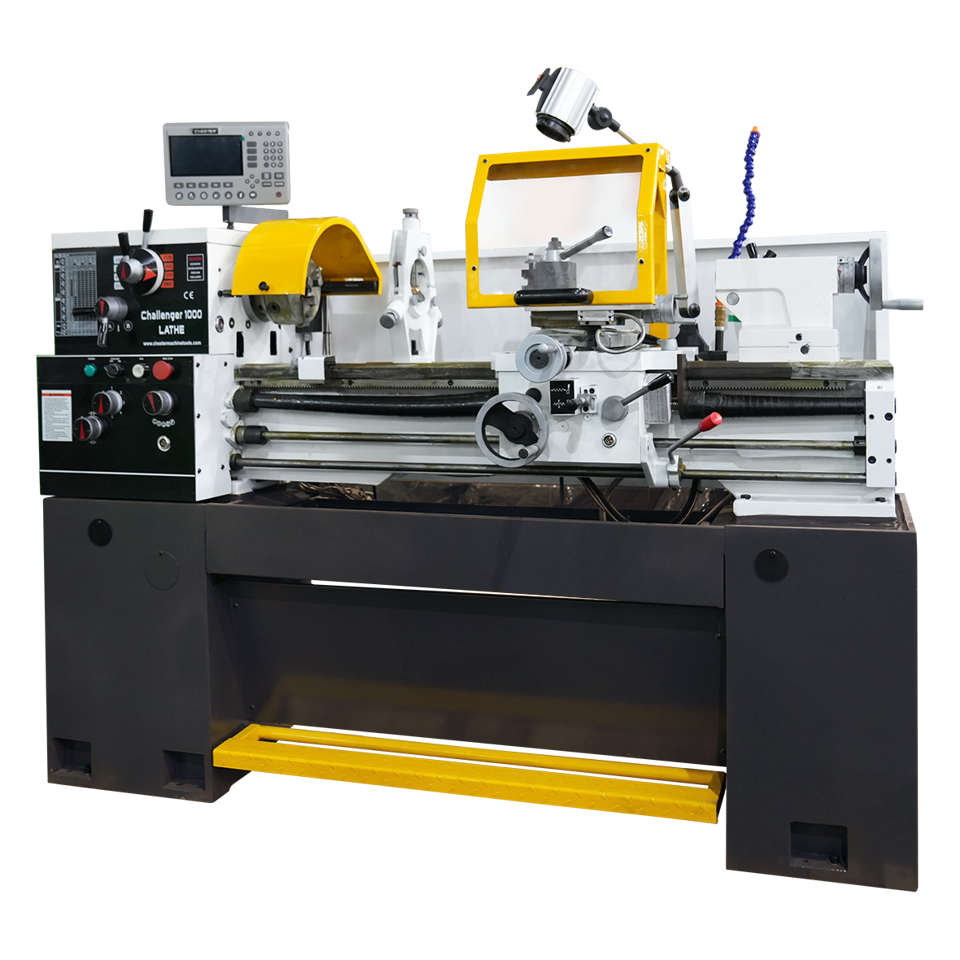

Chester Challenger Lathe, 400v
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Distance Between Centres: 1000mm
Swing over Bed: 356mm
Manual Lathes
Education
An easy to operate machine, ideal for workshops.
Features:
- Hardened and Ground Bedways
- Large Spindle Bore
- Footbrake
- Precision Taper Roller Bearings
- Removable Swarf Tray
Model | Challenger Lathe/400v |
Centre Height | 178mm |
Swing over Bed | 356mm |
Distance between Centres | 1000mm |
Swing over Cross Slide | 220mm |
Swing in Gap | 506mm |
Gap Length in front of Face Plate | 205mm |
Cross Slide Travel | 180mm |
Bed |
|
Width | 206mm |
Max. Weight of Work Piece in Chuck | 100kg |
Max. Weight of Work Piece between Centres | 200kg |
Headstock |
|
Spindle Nose | D1-4 |
Spindle Bore | 38mm |
Spindle Taper | MT5 |
Number of Spindle Speeds | 8 |
Range of Spindle Speeds | 90-1800r/min |
Tool Section | 16 x 16mm |
Tailstock |
|
Quill Diameter | 45mm |
Quill Travel | 120mm |
Quill Internal Taper | MT3 |
Feed Ranges & Gearbox |
|
Longitudinal Feeds | 0.043-0.653mm/rev |
Cross Feeds | 0.015-0.220mm/rev |
Metric Threads | 0.40-7.0mm (37steps) |
Imperial Threads | 4-112tpi (40steps) |
Leadscrew Pitch | 4mm |
Motors |
|
Main Motor | 2.3kW (3hp) |
Coolant Pump Motor | 0.04kW (0.55hp) |
Weight & Dimensions |
|
Machine Dimensions (L x W x H) | 1900 x 710 x 1170mm |
Net Weight | 750kg |
Standard Accessories
- 3 Jaw Chuck 160mm
- 4 Jaw Chuck 200mm
- Digital Read Out
- Cast Iron Base
- LED Machine Lamp
- Chuck Guard
- Tool Post Guard
- Leadscrew Guard
- Fixed Steady
- Travelling Steady
- Full Length Rear Splash Guard
- Coolant System
- Footbrake
- Four Way Tool Post
- Thread Chasing Dial
- Single Position Micrometer Bed Stop
- Reducing Sleeves
- Steel Centre
- Toolbox
- Operation Manual
Optional Accessories
- Soft Jaws
- Quick Change Tool Post with Tool Holders
- Taper Turning Attachment
- Live Centre
- Indexable Lathe Tools
- Face Plate
- Drill Chuck & Arbor
- Machine Mounts
- 5C Collets and Chuck
