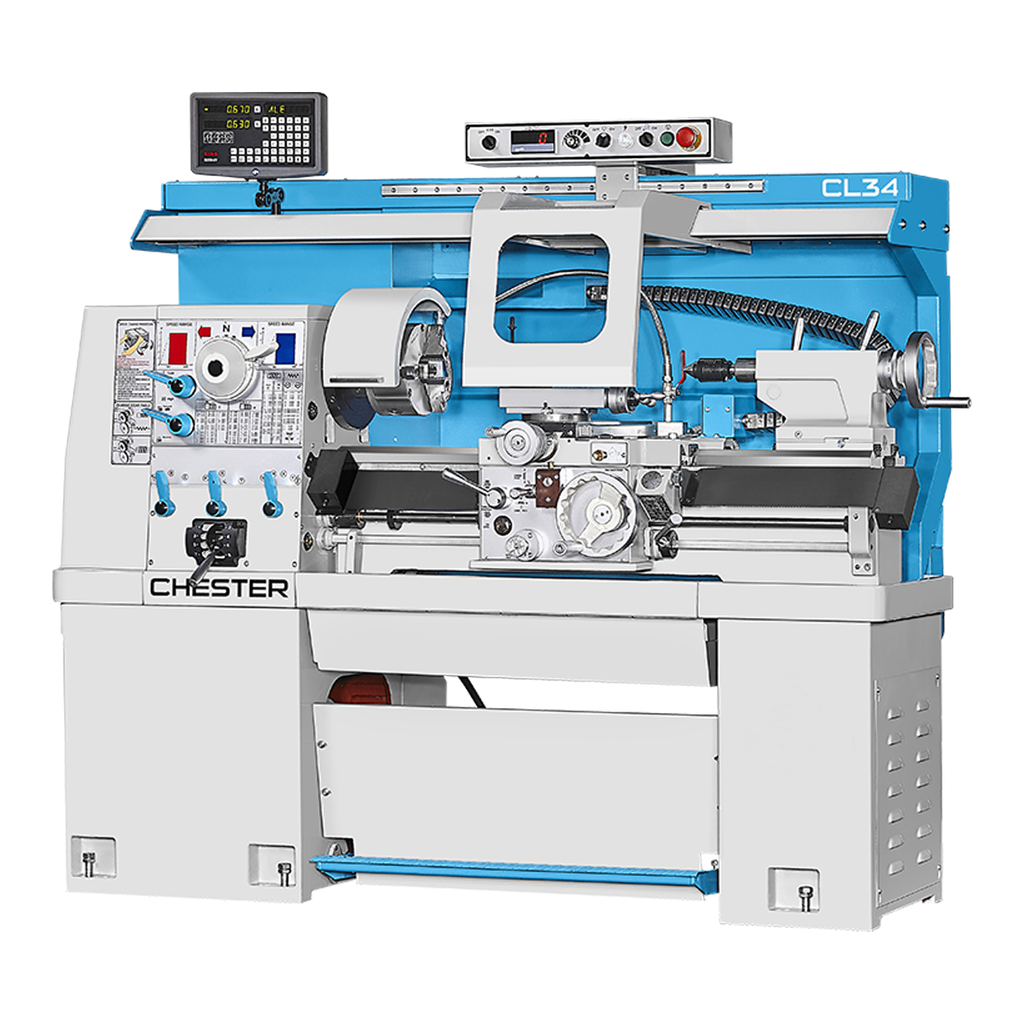

Chester CL34 x 1000 Lathe
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Distance Between Centres: 1000mm
Swing over Bed: 342mm
Manual Lathes
A precision metalworking lathe, our CL34 is ideal for workshops.
• All Castings are Properly Stabilised and Stress Relieved.
• Hardened & Ground Bedways
• Extremely Low Noise Level
• Foot Brake
• Wide Bed Ways
• Built-in Coolant Pump
• Forward/Reverse Clutch
| Centre Height | 171mm |
| Swing over Bed | 342mm |
| Distance between Centres | 1000mm |
| Swing over Cross Slide | 205mm |
| Swing in Gap | 512mm |
| Gap Width in Front of Faceplate | 150mm |
| Cross Slide Travel | 180mm |
| Top Slide Travel | 100mm |
| Bed |
| Width | 230mm |
| Max. Weight of Work Piece in Chuck | 30kg |
| Max. Weight of Work Piece between centres | 150kg |
| Headstock |
| Spindle Nose | D1-4 |
| Spindle Bore | 40mm |
| Spindle Taper | MT5 |
| Number of Spindle Speeds | 8 steps |
| Range of Spindle Speeds | 80-2000rpm |
| Tool Section | 16x16mm |
| Tailstock |
| Quill Diameter | 50mm |
| Quill Travel | 112mm |
| Quill Internal Taper | MT3 |
| Feeds Range and Gearbox |
| Longitudinal Feeds | 0.05-1.7mm |
| Cross Feeds | 0.025-0.85mm |
| Metric Threads | 0.2-14mm (39 steps) |
| Imperial Threads | 2-72tpi (45 steps) |
| Module Threads | 0.3-3.5mp (18 steps) |
| Diametrical Threads | 8-44dp (21 steps) |
| Leadscrew Pitch | 6mm |
| Motors |
| Main Motor | 2.2kW (3hp) |
| Coolant Pump Motor | 0.09kW (0.13hp) |
| Weight and Dimensions |
| Dimensions | 2270 x 965 x 1900mm |
| Net Weight | 1000kg |
Standard Accessories
• 3 Jaw Chuck 7″
• 4 Jaw Chuck 8”
• Digital Read Out
• LED Machine Lamp
• One Piece Cast Iron Base
• Chuck Guard
• Fixed Toolpost Guard
• Leadscrew Guard
• Fixed Steady
• Travelling Steady
• Full Length Rear Splash Guard
• Coolant System
• Foot Brake
• Four Way Tool Post
• Thread Chasing Dial
• Reducing Sleeve
• Steel Centre
• Toolbox
• Operation Manual
Optional Accessories
• Soft Jaws
• Quick Change Tool Post with Tool Holders
• Taper Turning Attachment
• Live Centre
• Indexable Lathe Tools
• Face Plate
• Drill Chuck & Arbor
• Machine Mounts
• Single Position Micrometer Bed Stop
• 5C Collet Chuck and Collets
• Electro Magnetic 10hp Motor Brake
• Sliding Tool Post Guard
• Deluxe Type Rear Splash Guard with Built-in Work Lamp
