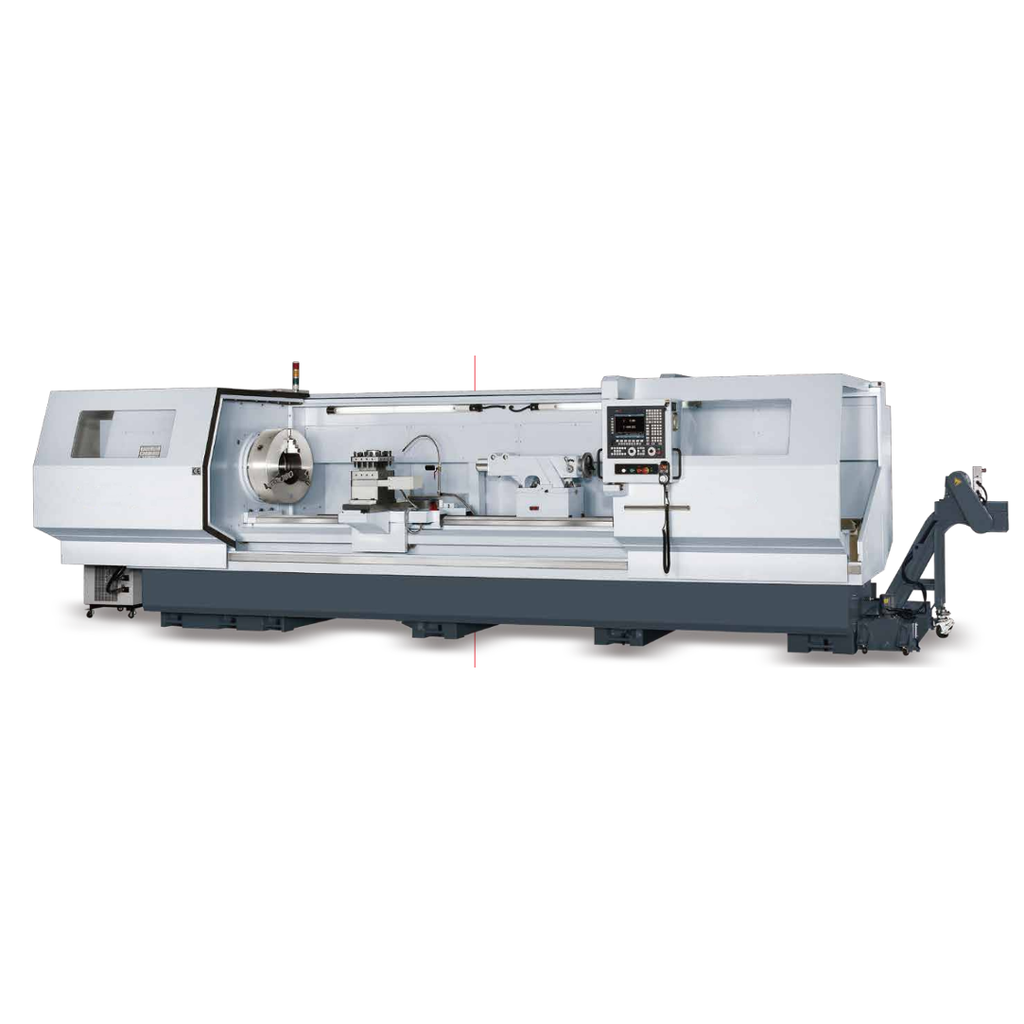

CHESTER FLATBED PRECISION TURNING CENTRE CL67 X 3000 CNC LATHE

CHESTER FLATBED PRECISION TURNING CENTRE CL67 X 3000 CNC LATHE

Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Distance Between Centres: 3100mm
Swing over Bed: 600mm
CNC Lathes
Contact Us

Please contact our team for a custom quote and competitive pricing

Add to cart
Add to wishlist
Price
£ 0.00 £ 0.00

A precision flatbed lathe with manual tailstock and automatic lubrication system.

ModelCL67 x 3000
Capacity

Max.Swing Over Bed600mm
Max. Swing Centre Height335mm
Max.Swing over Cross Slide400mm
Width of Bed450mm
Max. Distance Between Centres3100mm
Spindle

Spindle Speed27~2250rpm; 3 steps
Spindle NoseD1-8
Spindle Bore85mm
Saddle

X-Axis Travel450mm
X-Axis Rapid Travel5m/min
Z-Axis Travel3000mm
Z-Axis Rapid Travel7m/min
Tailstock

Quill Travel220mm
TaperMT5
Motor


Spindle Motor220mm
Ballscrew (Dia. X Pitch)X : 28 x 5 mm
Z: 50 x 10 mm for FB-2660/FB-2680/FB-26120
Z: 63 x 12 mm for FB-26160 / FB-26200
Z Axis servomotor11.6NM
X Axis servomotor6.3NM
Coolant Pump Motor1/4hp
X Z Feed

Z Axis Rapid Travel7m/min
X Axis Rapid Travel5m/min
Weight5600kg

STANDARD ACCESSORIES

• Full Enclosure Splash Guard

• Automatic Lubrication System

• Ball Screws in X/Z Axis

• Coolant Equipment

• Work Lamp

• Tool Kits

• Manual Tailstock

• Manual

OPTIONAL ACCESSORIES

• Fanuc Plus Type 1

• Siemens 828D

• Additional Apron

• 12’’ 3-Jaws scroll chuck (SK type) thr. hole 105mm

• 16’’ 3-Jaws scroll chuck (SK type) thr. hole 160mm

• 16’’ 4-Jaw independent chuck for D1-8 Spindle nose

• 18’’ 4-Jaw independent chuck for D1-8 spindle nose

• 20’’ 4-Jaw independent chuck for D1-8 Spindle nose

• 20’’ 4-Jaw independent chuck for D1-8 spindle nose

• 4 way toolpost, Manual type , Model # 130, (Tool shank 25*25mm)

• Quick change tool post #120 / (Tool shank 25*25mm)

• H4 Electric Servo Toolpost (C630AD ) (Tool shank 32*32mm)

• V8 hydraulic turret (LS200) w/ Slotted tool discs

• V8 hydraulic turret (LS200) with VDI40, Without tool holder

• Steady rest with rollers (50 ~ 300 mm)

• Steady rest with rollers (130 ~ 370 mm)

• Steady rest with rollers (280 ~ 400 mm)

• Follow rest (50~250 mm)

• Change to Hydraulic Tailstock

• Change Manual tailstock to Rotating quill type

• Spindle Oil Cooler

• Gap Type Bed

• Chip Conveyer AC-26120

• Rotating Centre MT5
