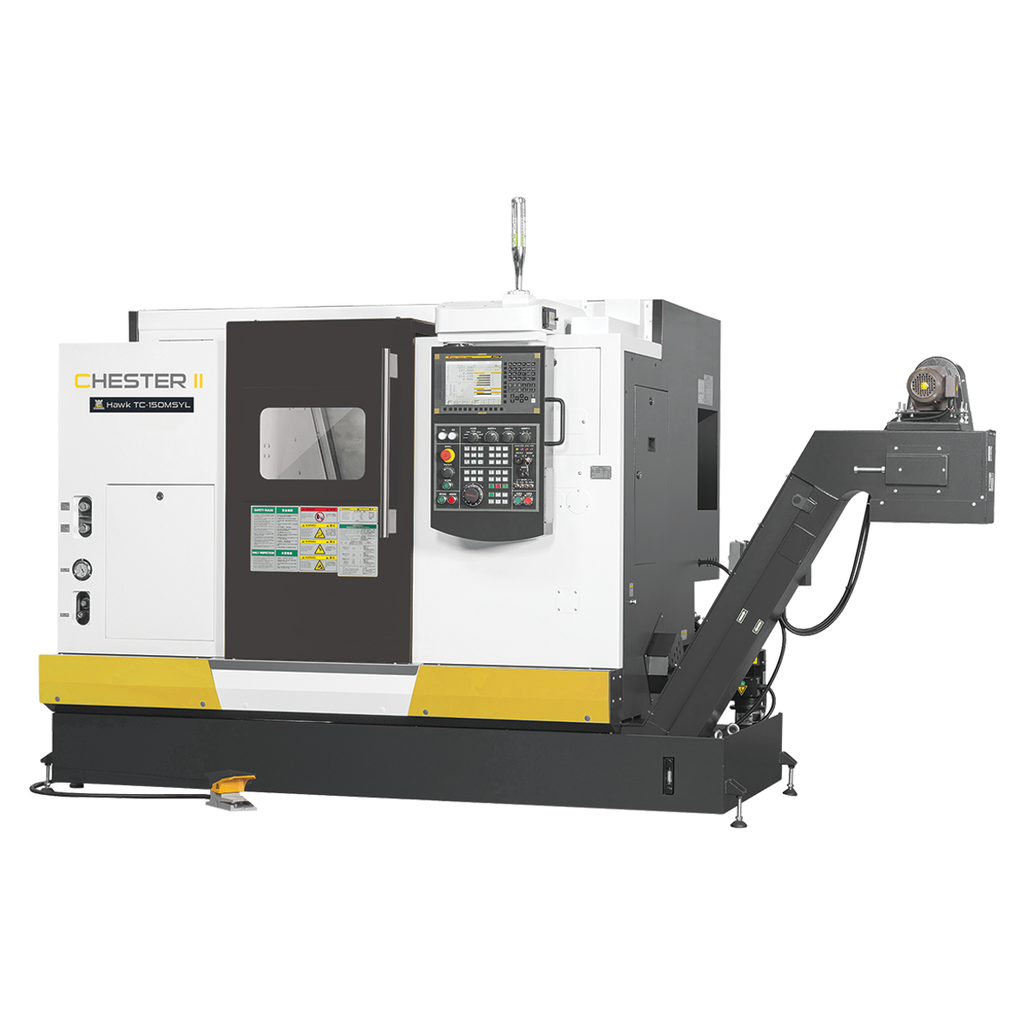

CNC Turning Centre with Sub Spindle, Driven Tools and Y Axis.
Featuring 12 position BMT55 living turret and Servo Tailstock.
| Model | HAWK TC-150MSYL |
| Processing Range |
|
| Max.Turning Diameter | Ф620mm |
| Max Cutting Diameter | Ф300mm |
| Max Cutting Length | 550mm |
| Spindle |
|
| Max. Spindle Speed | 6000rpm |
| Spindle Power | 11/15kW |
| Spindle Nose | A2-6 |
| Spindle Bore | Φ56mm |
| Max. Bar Capacity | Φ44mm |
| Spindle Taper | Morse 6# |
| Hydraulic Chuck | 6″（Hollow) |
| Height from Spindle Centre | 1060mm |
| Travel |
|
| Travel X | 210mm |
| Travel Z | 600mm |
| Travel Y | 105(±52.5)mm |
| Travel Speed X | 30m/min |
| Travel Speed Z | 30/10m/min（Z1/Z2 |
| Travel Speed Y | 10m/min |
| Upper/Lower Tool Rest |
|
| Tool Position | 12mm（BMT55) |
| Max. Live Tool Speed | 6000rpm |
| Turning Tool Shank Size | 25 x 25mm |
| Boring Tool Holder Diameter | Φ32mm |
| Max Drilling | Ф14 x 0.16mm |
| Max Tapping | M10 x 1.5/M24 x 1mm |
| Max Milling | Ф16 x 12 x 40mm |
| Machining Accuracy |
|
| Positioning Accuracy X/Y/Z/C | 0.008/0.008/0.008mm/51″ |
| Repeatability X/Y/Z/C | 0.004/0.004/0.004mm/20″ |
| Other |
|
| Power Capacity | 45Kva |
| Machine dimension (L x W x H) | 3855 × 1940 × 1950mm |
| Machine Weight | 4200Kg |
Standard Accessories
- SIEMENS 828D
- Shop Turn
- MPG
- 6000rpm belt drive spindle (Siemens 828D)
- 12 position BMT55 living turret
- 6’’ hollow hydraulic chuck with 1 set soft jaw
- Hollow hydraulic cylinder
- Servo Tailstock
- Hydraulic System
- Heat Exchanger
- Auto chip conveyer & chip chart
- Auto oil lubrication system
- Tri-color light
- Air Gun
- Door lock switch
- Lighting Lamp
- Full enclosure splash guard
- Telescopic covers
Optional Accessories
- FANUC 0i TF(5) CNC system
- Parts Catcher
- Barfeed Interface
- M30 Auto Power Off
