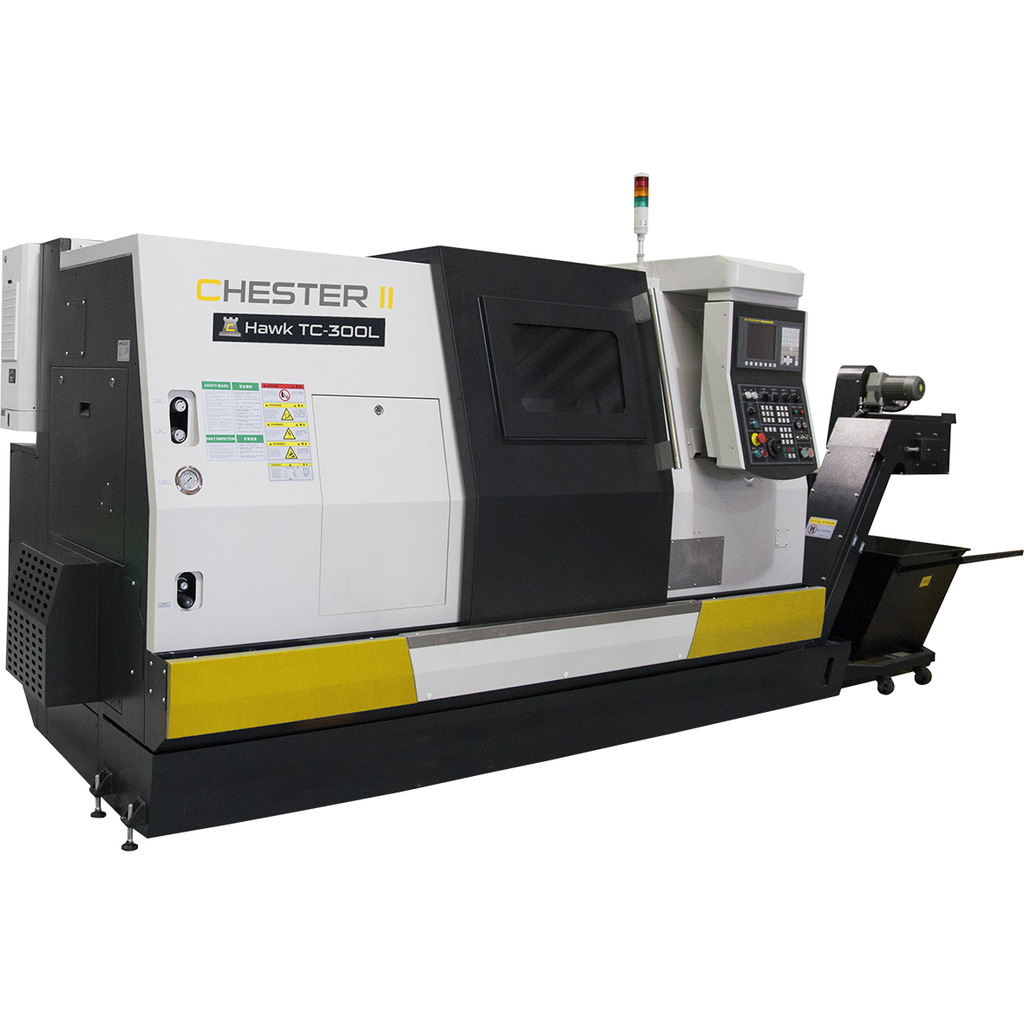

The Hawk TC-300L 2 Axis Turning Centre is a high precision machine, ideal for CNC cutting and machining.
| Model | HAWK TC-300L |
| Processing Range |
|
| Max. Swing Over Bed | Ф650mm |
| Max. Swing Over Saddle | Ф480mm |
| Max Turning Diameter | Φ510mm |
| Max. Turning Length | 1000mm |
| Max. Bar Capacity | Φ74mm |
| Spindle |
|
| Max. Spindle Speed | 2800rpm |
| Spindle Nose | A2-8 |
| Spindle Bore | Φ92mm |
| Spindle Taper | Metric 80 |
| Height from Spindle Centre to Ground | 1000mm |
| Hydraulic Tailstock |
|
| Tailstock Quill Diameter | Φ100mm |
| Tailstock Quill Travel | 100mm |
| Quill Center | Morse 5# (Live center) |
| Axis X/Z |
|
| Travel X/Z | 280/1100mm |
| Rapid Travel Speed X/Z | 24/30mm |
| X axis ball screw dia/pitch | Φ32/8mm |
| Z axis ball screw dia/pitch | Φ40/12mm |

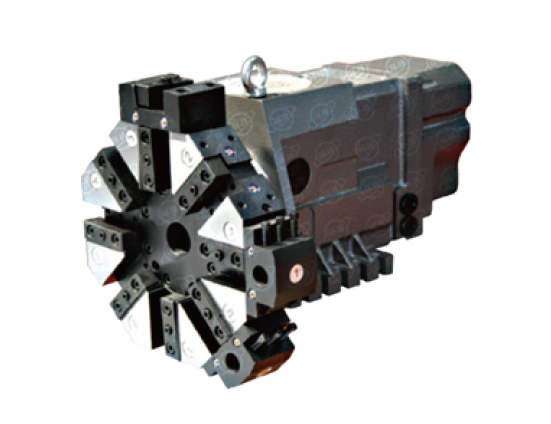

| Hydraulic Turret |
|
| Tool Position | 8 |
| Turning Tool Size | 25 x 25mm |
| Boring Holder Diameter | Ф40mm |
| Machining Accuracy |
|
| Positioning Accuracy X/Z | 0.01/0.01mm |
| Repeatability X/Z | 0.004/0.004mm |
| Other |
|
| Power Capacity | 30Kva |
| Spindle Motor Power | 15/18.5kw |
| Machine Dimension (LxWxH) | 5070 × 1885 × 1955mm |
| Net Weight | 4600kg |
Standard Accessories
- Siemens 828D
- Shopturn
- MPG
- 3000rpm belt drive spindle (Siemens 828D)
- 8 position hydraulic turret
- 12″ hollow hydraulic chuck with 1 set soft jaw
- Hollow hydraulic cylinder
- Hydraulic Tailstock
- Hydraulic System
- Heat Exchanger
- Auto chip conveyer & chip cart
- Auto oil lubrication system
- Tri-color light
- Air gun
- Door lock switch
- Lighting Lamp
- Full enclosure splash guard
- Telescopic covers
Optional Accessories
- FANUC 0i TF(5) CNC system
- Auto parts catcher
- Bar feeder interface
- M30 Auto power off
- Hydraulic tailstock (only quill)
- Full hydraulic tailstock
- Bar feeder DH65
- Renishaw tools measure HPMA
- Air conditioner for cabinet
