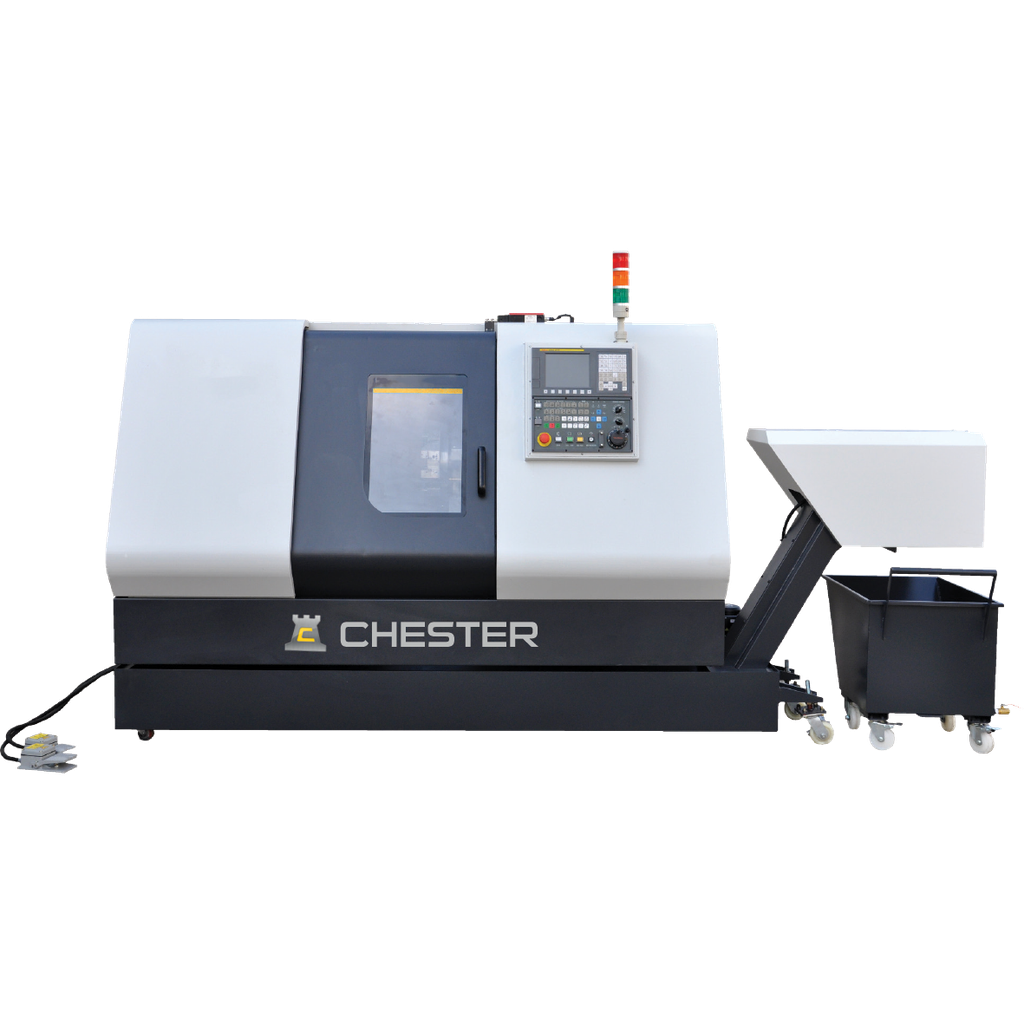

Efficient, economic and as rigid as a flat bed lathe, highly suited to education and workshop environments.
45° Integrated Slant Bed with High Rigidity and Easy Chip Removal
• X and Z Axis with Precision Linear Rolling Guide with no Backlash
• High Rigidity and Accuracy
• High Rigid Construction Spindle for Variable Constant Linear Speed Cutting and High Speed Cutting
• Safety Protection Design
• Ergonomic Design
• Sauter Electric Turret
| Model | S10 |
| Machining |
|
| Max.Swing Over Bed | 330mm |
| Max.Cutting Dia.for Disc Parts | 200mm |
| Max.Cutting Dia.for Axle Parts | 120mm |
| Max.Cutting Length for Axle Parts | 300mm |
| Spindle |
|
| Spindle Bore | 38mm |
| Spindle Nose | A-4 |
| Spindle Speed | 6000r/min |
| Travel |
|
| Max.Travel of Axis X | 115mm |
| Max.Travel of Axis Z | 310mm |
| Feed |
|
| Rapid Feed for Axis X | 12m/min |
| Rapid Feed for Axis Z | 20m/min |
| Turret |
|
| Tool Post Stations | 8 |
| Live Tool Serve Motor Power | n/a |
| Maximum Speed of Live Tool | n/a |
| Outside Dia. Cutting Tool Shank | 20x20mm |
| Max.Inner Dia.Cutting Tool Shank | 25mm |
| Tailstock |
|
| External Diameter of Tailstock Sleeve | 63mm |
| Max. Travel of Tailstock Sleeve | 100mm |
| Taper of Tailstock Sleeve | MT.No.3 |
| Others |
|
| Power of Main Motor | 3.7/5.5kw(5.03/7.48hp) |
| The Bed Structure | 45° slant bed |
| Min.Input | 0.001mm |
| Repeatability | ≤0.006mm |
| Chuck Dia. | 6° |
| Overall Dimensions | 3115x1525x1685mm |
| Net Weight | 2500kg |
STANDARD ACCESSORIES
• FANUC 0i TF(5) CNC Controler
• FANUC Servo Motors for X/Z and Spindle
• Sleeve Spindle 6000rpm
• 8-way Hydraulic Tool Turret
• 6” Closed Hydraulic 3-jaw Chuck
• Linear Guides Ways and Ball Screws
• Auto Conveyor
• Tool Box
• Operational Manual
OPTIONAL ACCESSORIES
• Hydraulic Servo or Electric Tool Post
• Hollow Chuck
• Hydraulic or Programmable Tailstock
• Renishaw Tool Setter Measuring Instrument
