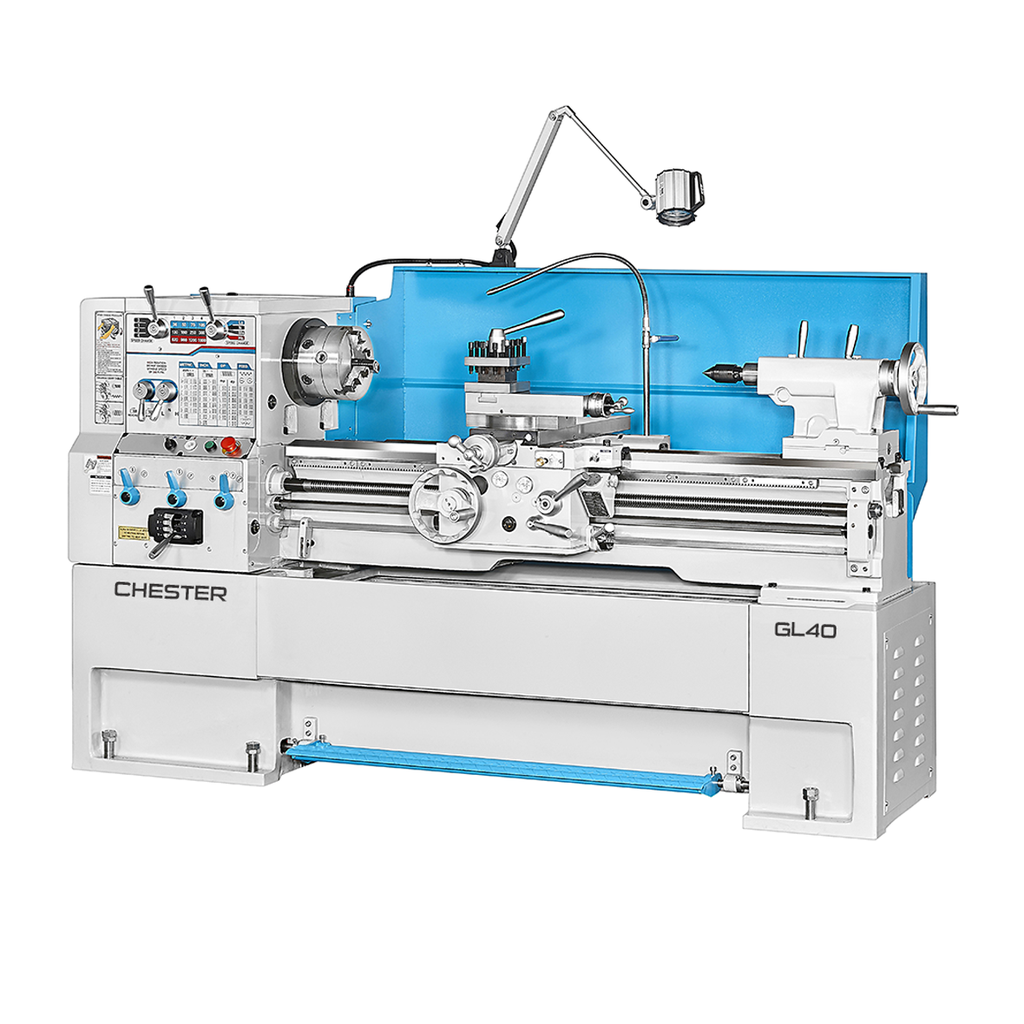

CHESTER GL40 x 1000 LATHE
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Distance Between Centres: 1000mm
Swing over Bed: 410mm
Manual Lathes
Precision metalworking lathe with up 1800rpm spindle speeds and powerful motor.
Features:
- All castings are fully stabilized and stress-relieved
- Bed ways are hardened and ground
- Turcite B coating is applied between the bed and carriage
- Exceptionally low noise levels
- Equipped with a foot brake pedal
- Includes a built-in coolant pump and fittings
- Wider bed ways for enhanced vibration absorption
| Model | GL40 x 1000 |
| Centre Height | 205mm |
| Swing over Bed | 410mm |
| Distance between Centres | 1000mm |
| Swing over Cross Slide | 255mm |
| Swing in Gap | 620mm |
| Gap Width in Front of Faceplate | 120mm |
| Cross Slide Travel | 250mm |
| Top Slide Travel | 155mm |
| Bed |
|
| Width | 305mm |
| Max. Weight of Work Piece in Chuck | 40kg |
| Max. Weight of Work Piece between centres | 150kg |
| Headstock |
|
| Spindle Nose | D1-6 |
| Spindle Bore | 65mm |
| Spindle Taper | MT4 |
| Number of Spindle Speeds | 12 steps |
| Range of Spindle Speeds | 36-1800rpm |
| Tool Section | 25 x 25mm |
| Tailstock |
|
| Quill Diameter | 59mm |
| Quill Travel | 127mm |
| Quill Internal Taper | MT4 |
| Feeds Range and Gearbox |
|
| Longitudinal Feeds | 0.04-1.0mm |
| Cross Feeds | 0.02-0.5mm |
| Metric Threads | 0.2-14mm (39 steps) |
| Imperial Threads | 2-72tpi (45 steps) |
| Module Threads | 0.3-3.5mp (18 steps) |
| Diametrical Threads | 8-44dp (21 steps) |
| Leadscrew Pitch | 6mm |
| Motors |
|
| Main Motor | 3.75kW (5hp) |
| Coolant Pump Motor | 0.09kW (0.13hp) |
| Weight and Dimensions |
|
| Dimensions | 2400 x 1120 x 1900mm |
| Net Weight | 1600kg |
Standard Accessories
• 3 Jaw Chuck 7″
• 4 Jaw Chuck 8”
• Digital Read Out
• LED Machine Lamp
• One Piece Cast Iron Base
• Chuck Guard
• Fixed Toolpost Guard
• Leadscrew Guard
• Fixed Steady
• Travelling Steady
• Full Length Rear Splash Guard
• Coolant System
• Foot Brake
• Four Way Tool Post
• Thread Chasing Dial
• Reducing Sleeve
• Steel Centre
• Toolbox
• Operation Manual
Optional Accessories
• Soft Jaws
• Quick Change Tool Post with Tool Holders
• Taper Turning Attachment
• Live Centre
• Indexable Lathe Tools
• Face Plate
• Drill Chuck & Arbor
• Machine Mounts
• Single Position Micrometer Bed Stop
• 5C Collet Chuck and Collets
• Electro Magnetic 10hp Motor Brake
• Sliding Tool Post Guard
• Deluxe Type Rear Splash Guard with Built-in Work Lamp
