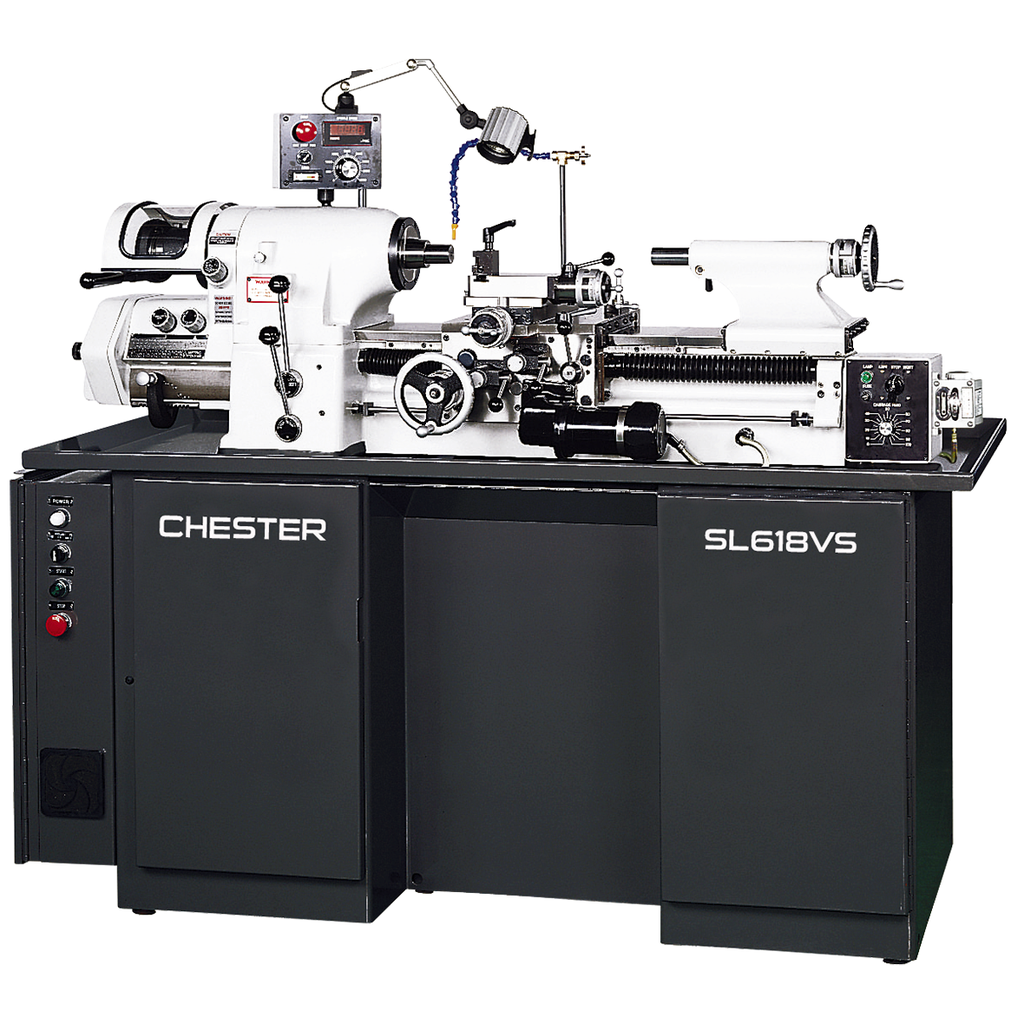

Our SL618VS is a precision lathe with variable spindle speeds and precision threading.
• Carriage: Full bearing with Turcite-B slideway material for smooth movement
• Spindle Bearings: High precision preloaded angular contact ball bearings, eliminating radial and end play
• Chuck: Fast lever collet chucking with a single movement
• Feeds: Independent, infinitely variable, ensuring accurate cuts, efficient chip removal, and smooth surface finishes
• Threading: Quick change gearbox for precision threading; automatic thread length control with fine adjustable stops for accurate threading without thread relief
• Tool Post: Quick-action slide for threading, which clears the work instantly during carriage return
• Bed Way: Specially designed with hardened and ground alloy tool steel for wear resistance; angular guide ways help chips fall into the chip tray
| Model | SL618VS |
| Spindle Capacity with Chuck | 150mm |
| Spindle Capacity with Expanding Collets | 76mm |
| Spindle Capacity with Round 5C Collets | 27mm |
| Spindle Capacity with Hexagon 5C Collets | 22mm |
| Spindle Capacity with Square 5C Collets | 19mm |
| Spindle Capacity with Step Chucks | 27-152mm |
| Spindle Nose Diameter | 55.5mm |
| Spindle Nose I.D/O.D | 5c (10°) / 4° Taper |
| Range of Spindle Speeds (Variable) | 50-4000rpm (5C) / 50-3000rpm (with 6” 3 jaw chuck) |
| Inverter Spindle Motor | 2.2kW (3hp) |
| Hole through Spindle | 31.75mm |
| Bar Stock diameter (5C Collet) | 27mm |
| Distance between Centres | 457mm |
| Swing over Bed | 280mm |
| Swing over Carriage | 230mm |
| Swing over Cross Slide | 152mm |
| Carriage Power Feed Range (Variable) | 8-178mm |
| Carriage Power Feed Range (Variable) | 5-102mm |
| Cross Slide Travel | 152mm |
| Quick Action Compound Slide Travel | 2.5mm |
| Compound Slide Travel | 76mm |
| Tailstock Spindle Diameter | 34.5mm |
| Tailstock Spindle Taper | MT2 |
| Tailstock Spindle Travel | 95mm |
| Coolant Pump | 1/6hp, 220V, 3ph |
| Feed Inverter Motor | 0.37kW (0.5hp) |
| Main Motor | 2.24kW (3hp) |
| Available Power Supply | 1 Phase/3 Phase |
| Net Weight | 820kg |
| Machine Dimensions | 1910 x 850 x 1860mm |
Standard Accessories:
• MT2 Tailstock
• Work Light
• Coolant Pump
• Tool Box
• Manual
Optional accessories
• Chuck Back Plate
• 6″ 3 Jaw Chuck
• Lathe Dog
• Face Plate
• Step Chuck
• Four Station Turret
• Follow Rest
• Steady Rest
• Vertical Cut-off Slide
• Quick Change Tool Post
• Radius Turning Attachment
• Taper Turning Attachment
• Rear Tool Holder Slide Assembly
• Various Tool and Work Holding Equipment Available
