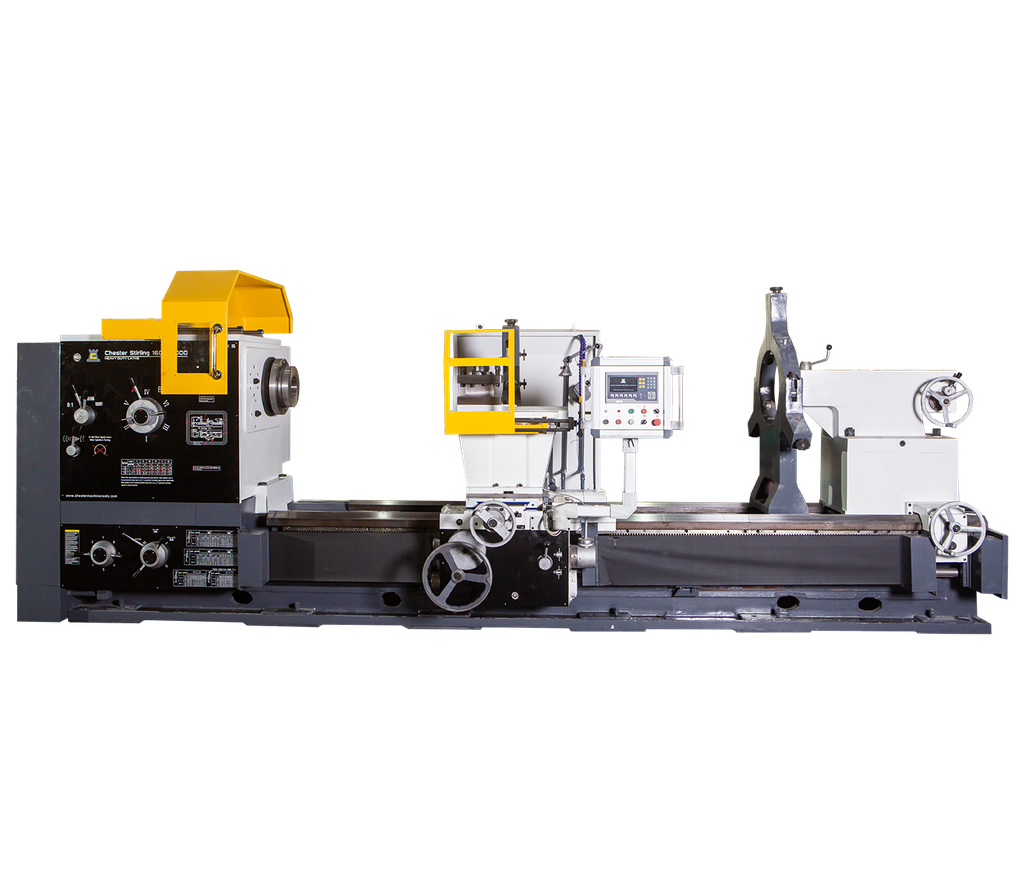

Chester Stirling Lathe, 10 Series
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Distance Between Centres: 1500mm
Swing over Bed: 1000mm
Manual Lathes
A large precision lathe with wide beds. The Chester Stirling lathe can be custom built to your specific manufacturing requirements.
Wide bed
• Large Spindle Bore
• Heavy Duty Construction
• Precision Spindle Bearing
• Powered Topslide
| Model | Stirling 10 |
| Centre Height | 500mm |
| Swing over Bed | 1000mm |
| Distance Between Centres | 1500-16000mm |
| Swing over Cross Slide | 650mm |
| Swing in Gap | 1250mm |
| Gap Length in Front of Face Plate | 610mm |
| Cross Slide Travel | 520mm |
| Bed |
| Width | 755mm |
| Headstock |
| Spindle Nose | A2-15 |
| Spindle Bore | 130mm |
| Taper Reduction in Sleeve | MT140 |
| Number of Spindle Speed Ranges | 21 |
| Range of Spindle Speeds | 3.15-315rpm |
| Tailstock |
| Quill Diameter | 160mm |
| Quill Travel | 300mm |
| Quill Internal Taper | Metric 80 |
| Feeds Range and Gearbox |
| Longitudinal Feeds | 97,0.064-12mm/rev |
| Cross Feeds | 97,0.032-6mm/rev |
| Metric Threads | 45,1-120mm |
| Imperial Threads | 42,30-1/4 |
| Module Threads | 46,0.5-60mm |
| Diametrical Threads | 48,60-0.5D.P |
| Motors |
| Main Motor | AC22kw(30hp) |
| Coolant Pump Motor | 0.15kw(0.2hp) |
| Weight And Dimensions |
| Floor Space(3m machine) | 6100x1900x2000mm |
| Net Weight | 10800kg |
STANDARD ACCESSORIES
• 4-Jaw Chuck
• 4-Way Tool post
• Rotary Tail stock
• Manual and Parts List
OPTIONAL ACCESSORIES
• Steadies
• Digital Readout
• Taper Turning Attachment
This machine can be adapted to meet specific requirements
