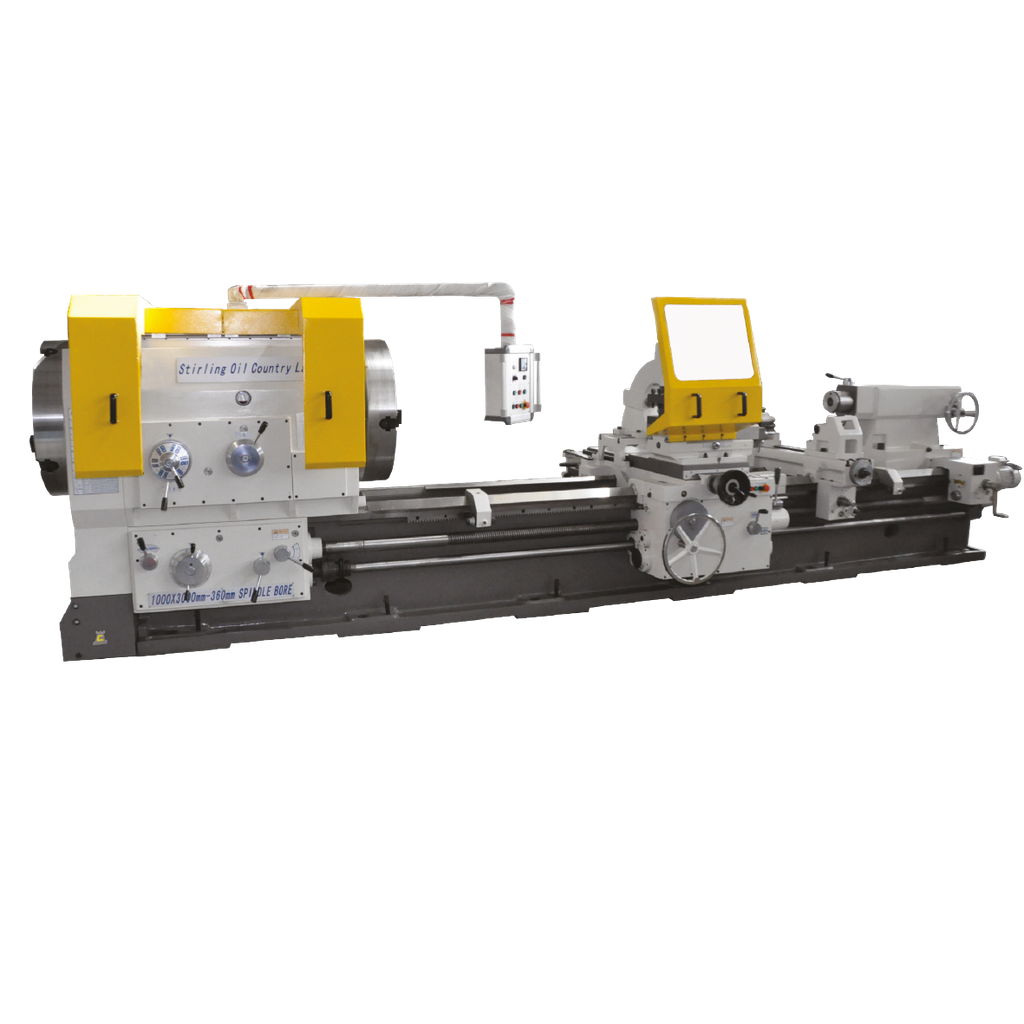

Chester Stirling Oil Country Lathe, OC46
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Distance Between Centres: 18000mm
Swing over Bed: 1250mm
Manual Lathes
A very heavy duty machine with big-bore spindle. The Chester Stirling OC range is built to handle tough machining requirements.
Features:
- Rapid Feed
- Clutch
- Hardened and Ground Bedways
| Model | STIRLING OC46 |
| Centre Height | 625mm |
| Swing over Bed | 1250mm |
| Distance Between Centres | 1500-18000mm |
| Swing over Cross Slide | 890mm |
| Swing in Gap | 1500mm |
| Gap Length in Front of Face Plate | 610mm |
| Cross Slide Travel | 620mm |
| Top Slide Travel | 300mm |
| Bed |
|
| Width | 970mm |
| Max. Weight of Work Piece between Centres | 6000kg |
| Headstock |
|
| Spindle Nose | A2-20 |
| Spindle Bore | 460mm |
| Spindle Taper | MT470 |
| Number of Spindle Speed Ranges | 20 |
| Range of Spindle Speeds | 3.15-315rpm |
| Tool section | 45 x 45mm |
| Tailstock |
|
| Quill Diameter | 160mm |
| Quill Travel | 300mm |
| Quill Internal Taper | Metric 80 |
| Feeds Range and Gearbox |
|
| Longitudinal Feeds | 56,0.1-12mm/r |
| Cross Feeds | 56,0.04-4.8mm/r |
| Metric Threads | 1-120mm (44steps) |
| Imperial Threads | 30-1+1/8tpi (37steps) |
| Module Threads | 0.5-60mp (46steps) |
| Diametrical Threads | 60-0.5dp (56steps) |
| Leadscrew Pitch | X:5mm / Z:12mm |
| Rapid feed : Longitudinal / Cross | 3740/1870mm/min |
| Motors |
|
| Main Motor | 30kW (40hp) |
| Coolant Pump Motor | 0.5kW (0.7hp) |
| Rapid Feed Motor | 1.1kW (1.48hp) |
| Tailstock Motor | 0.55kW (0.73hp) |
| Weight And Dimensions |
|
| Machine Dimensions (3m machine) | 7350 x 2500 x 1850mm |
| Net Weight | 18000kg |
STANDARD ACCESSORIES
• 4 Jaw Double Chuck 1000mm
• Taper Turning Attachment
• Digital Read Out
• LED Machine Lamp
• Cast Iron Base
• Chuck Guard
• Toolpost Guard
• Leadscrew Guard
• Fixed Steady
• Travelling Steady
• Coolant System
• Four Way Toolpost
• Bed Stop
• Thread Chasing Dial
• Steel Centre
• Live Centre
• Tool Box
• Operation Manual
OPTIONAL ACCESSORIES
• Quick Change Tool Post
• Motorised Tail Stock
