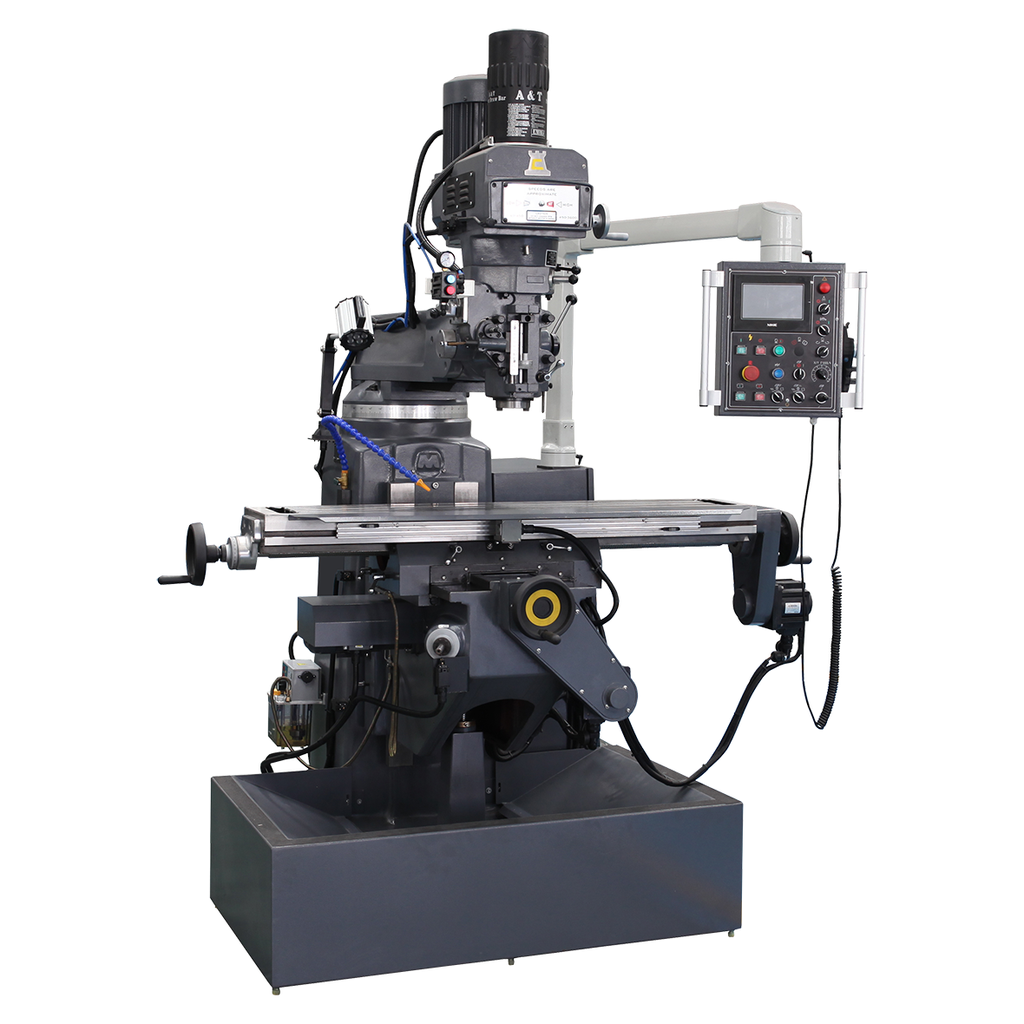

Chester 5VSW SmartMill

Chester 5VSW SmartMill

Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Table Size: 1370 x 254mm
Spindle Taper: NT40
Milling Machines
Contact Us

Please contact our team for a custom quote and competitive pricing

Add to cart
Add to wishlist
Price
£ 0.00 £ 0.00

Features:

  • X, Y Axis Precision Ballscrew
  • Heavy-duty turret mill with servo table feeds and touchscreen control
  • Built-in auto cycles for plane cutting, profiling, and drilling
  • ISO40 variable speed spindle with wide adjustable range
  • MPG electronic handwheels for precision positioning
  • Swivelling head for compound-angle machining
  • Full 360-degree ram rotation with forward and backward travel
  • One-shot centralised lubrication system
Table

Working Surface1370 x 254mm
T-Slots (Qty/Width)3/16mm
T-Slot Pitch (Centres)63mm
X-Axis Travel (Manual)820mm (auto)
X-Axis Travel (Automatic)820mm (auto)
Y-Axis Travel (Manual)
400mm
Y-Axis Travel (Automatic)
400mm
Z-Axis Travel (Manual)
400mm
Z-Axis Travel (Automatic)
400mm
Load Capacity
280kg
Table Swivel Range
N/A
Spindle

Spindle TaperNT40
Speed Control16-step
Speed Range65-4500rpm (60-3600rpm Optional)
Spindle Centre to Column
140-609mm
Spindle Nose to Table
0-400mm
Quill Travel
127mm
Drawbar
M16
Head Swivel Range
±90°
Feed Rates

Number of FeedsVariable
X-Axis (Longitudinal)0-1500mm/min
Y-Axis (Cross)0-1500mm/min
Z-Axis (Vertical)345mm/min
Quill Feed
0.04/0.08/0.15mm/rev
X-Axis Rapid Traverse
1500mm/min
Y-Axis Rapid Traverse
1500mm/min
Z-Axis Rapid Traverse
345mm/min
Motor/Type

Vertical Spindle Motor/Belt3.75kW (5hp)
Feed Motor, X Axis/Servo
1.1kW (1.474hp)
Feed Motor, Y Axis/Servo
1.1kW (1.474hp)
Feed Motor, Z Axis/AC
0.4kW (0.54hp)
Coolant Motor0.09kW (0.125hp)
Weight and Dimensions

Machine Dimensions1905 x 2200 x 2300mm
Net Weight1500kg

Standard Accessories:

  • Variable Speed Spindle Head
  • 3 Axis Digital Readout
  • 3 Axis Power Feed
  • LED Work Lamp
  • Coolant System
  • Spindle Guard
  • Air Powered Drawbar
  • Chip Tray/Collector with Heavy Duty Step on Tray
  • Automatic Lubrication System
  • Toolbox
  • Operation Manual

Optional Accessories:

  • Table Guard
  • Semi Universal Dividing Head
  • Fully Universal Dividing Head
  • Rotary Table
  • Slotting Head
  • Machine Vice
  • Clamp Kit
  • Drill Chuck
  • ER Milling Collet Chuck Set
  • Boring Head
  • Reducing Sleeve Set
  • Combination Shell End Mill Arbors
  • Long Milling Arbors
  • End Mill Set
  • Angle Plate
  • Tilting Angle Table
  • Right Angle Attachment
Documents
5VSW Smart.pdf 5VSW Smart.pdf
