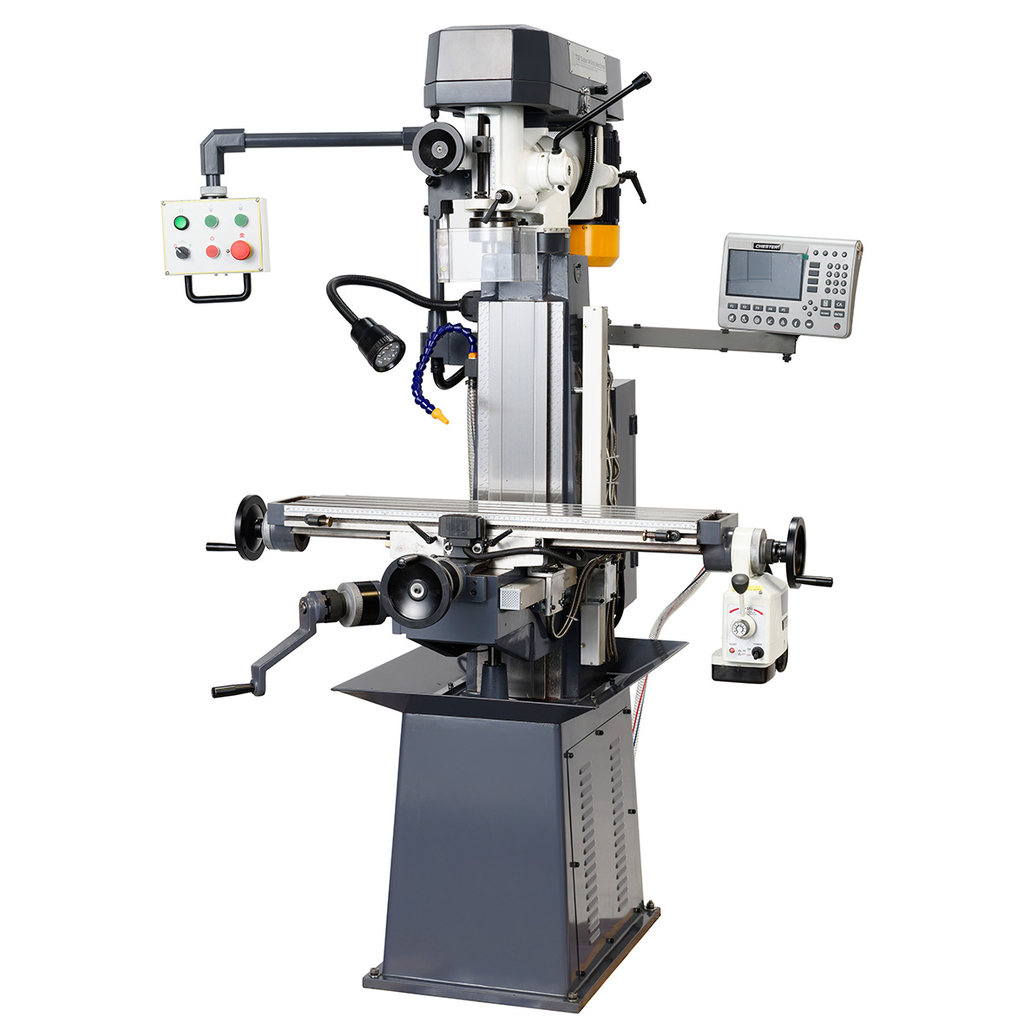

The introduction of the 732 milling machine sees the rebirth of this traditional design. This design is favoured by some engineers due to the large Z axis (vertical) travel of the milling table which is supported by the conventional knee.
The 732 mill features an integral coolant system for enhanced cutting and also incorporates power feed to the table longitudinal movement.
Features:
- Constructed with robust Meehanite cast iron for durability and stability.
- Slideways hardened and ground to ensure precise machining.
- Table surface hardened for increased longevity.
- X, Y, and Z traverse locks for secure positioning.
- Pre-installed 3-axis digital readout system for enhanced measurement accuracy.
- Power feed mechanism for seamless movement along the X axis.
- Head tilts at 45° Left and Right.
- Inverter drive for optimal speed control, maintaining torque while facilitating infinitely variable speeds
| Max. Drilling Capacity (iron/steel) | 30/25mm |
| Max. Milling Capacity (face milling) | 76mm |
| Max. Milling Capacity (end milling) | 20mm |
| Work Table Size | 800x178mm |
| Cross/longitudinal Travel Work Table | 200mm/440mm |
| Spindle Taper | MT3/R8 |
| Spindle Travel | 80mm |
| Spindle Speed (9 steps) | 50HZ:190-2100rpm |
| Max. Distance Spindle to Table | 545mm |
| Head tilt left right | +/-45° |
| Spindle Swivel | 360° |
| Motor Power | 1.5kW |
| Available Power Supply | 240V Single Phase |
| Machine Dimensions | 1300x1010x1830mm |
| Net Weight | 480kg |
Standard Accessories
• MT3 Spindle
• Steel Stand
• Interlocked Table Guard
• Drawbar
• Drill Chuck with Taper Shank
• Interlocked Table Guard
• LED Work Light
• Manual Lubrication Pump
• X-Axis Power Feed

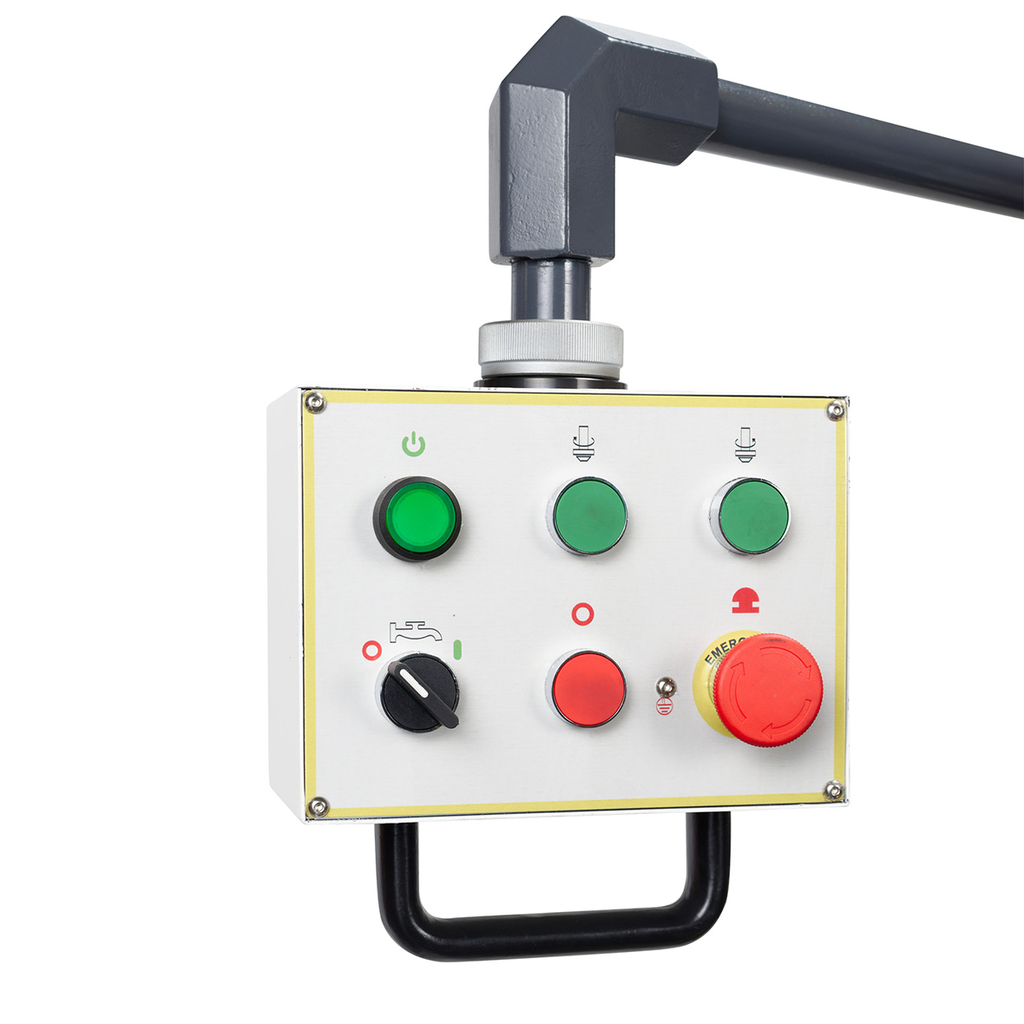

• Pendant Control Box
• Coolant Pump
• 3 Axis Industrial DRO
• Tool Box
• Manual
Optional Accessories
• R8 Spindle
• Y Axis Power Feed
• Z Axis Power Feed
• ER Collet Chuck Set
• Milling Vice K100/V100
• Angled Milling Vice
• Clamping Kit
• Reducing Sleeves
• Angle Milling Table
• Rotary Table
• Indexing Plates Set for Rotary Table
• Milling Cutter Set
• Drill Set
• Face Milling Cutter
• Stud Milling Arbor
