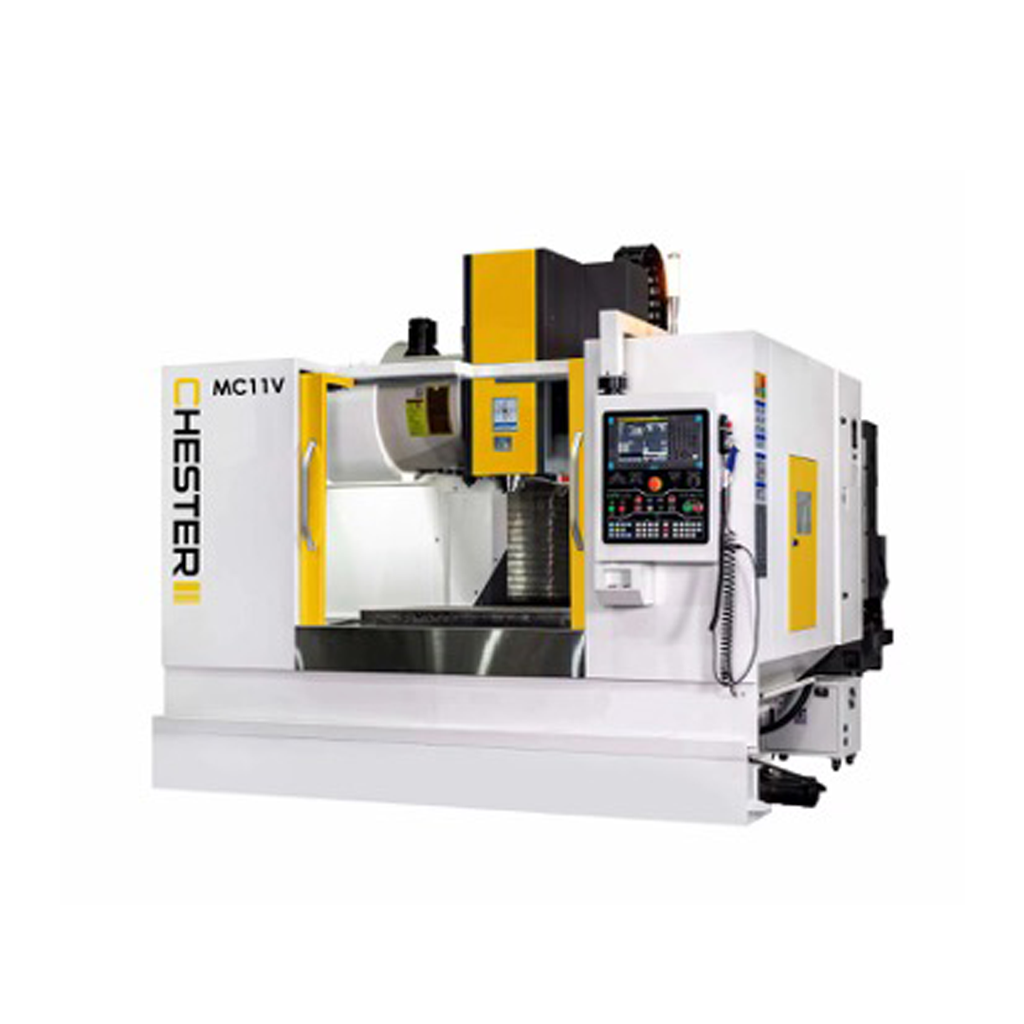

| Model | MC11V |
| Working Range |
|
| X Axis Travel | 1100mm |
| Y Axis Travel | 600mm |
| Z Axis Travel | 650mm |
| Distance from spindle nose to table surface | 120-770m |
| Table size |
|
| Table Length (X) | 1300mm |
| Table Width (Y) | 600mm |
| T Slot (Width x Distance x Number) | 18/100/5 |
| Max Table Load | 1000kg |
| Spindle |
|
| Spindle speed | 40-10000rpm |
| Spindle main power | 11/18.5kW |
| Spindle taper | BT40 |
| Spindle output torque (Max.) | 52.5/118Nm |
| Feeding system |
|
| X Axis rapid feed | 36000mm/min |
| Y Axis rapid feed | 36000mm/min |
| Z Axis rapid feed | 30000mm/min |
| Cutting feed speed | 1-10000mm/min |
| X Axis screw (DiaxPitch) | 40x12mm |
| Y Axis screw (DiaxPitch) | 40x12mm |
| Z Axis screw (DiaxPitch) | 40x12mm |
| Tool Magazine System | Arm Type |
| Tool Numbers | 24 |
| Max Tool Dia (full/empty) | 80/125mm |
| Max Tool Length | 300mm |
| Max Tool Weight | 8kg |
| Tool Changing Time | 1.55/5s |
| Accuracy |
|
| Positioning Accuracy | ±0.005/300mm (JIS) |
| Repeat Positioning Accuracy | ±0.003mm (JIS) |
| Airpower | 0.5-0.7Mpa |
| Machine size | 3825 x 2400 x 2680mm |
| Machine weight | 6400kg |
