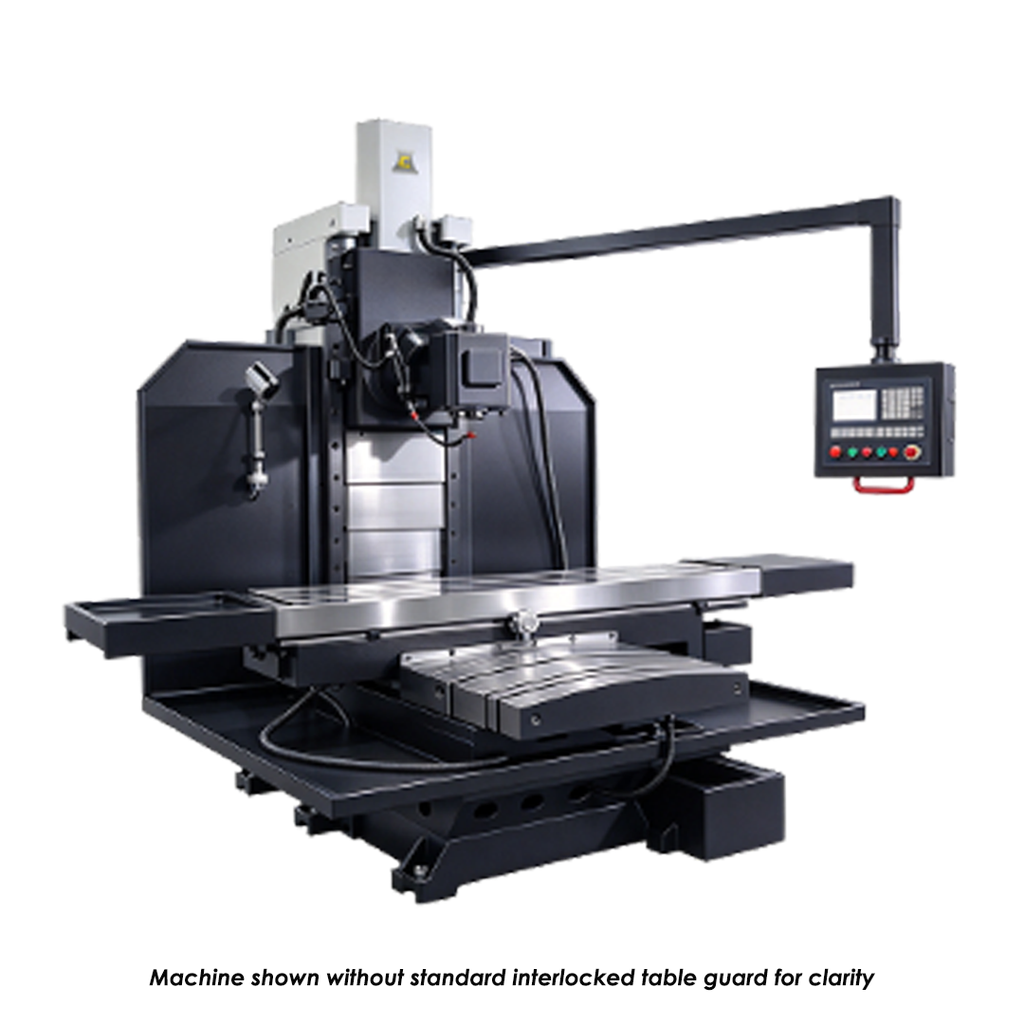

Chester CNC Bed Type Milling Machine Hercules X

Name: Chester CNC Bed Type Milling Machine Hercules X
SKU: MIL-CNC-HER-X
Availability: OutOfStock

Table Size: 2100 x 500mm

Spindle Taper: 7:24 ISO50

Milling Machines

Please contact our team for a custom quote and competitive pricing

Price

Features:

Rigid grey cast iron construction supports heavy workloads. All guideways are hardened and ground, with oil supplied by a centralised lubrication unit.
The universal swivel head swings easily to the horizontal position. The Huron-type universal milling head can be adjusted to various angles.
Servo motors are fitted on all axes, providing infinitely variable feed, rapid traverse, and speed control.
Electronic handwheels are fitted on all axes.
Ballscrew drives are fitted on all three axes, minimising backlash.
A powerful main motor with variable speed adjustment and an intermediate transmission system delivers optimal torque and near-constant speed under heavy workloads.
Solid flat guideways ensure stability during heavy milling operations.
A reinforced saddle of robust box-type construction is fitted.

Model	Hercules X CNC
Spindle
Spindle Taper	7:24 ISO50
Spindle Speed Steps	2 steps
Spindle Speed Range	6–300 / 300–1500rpm
Distances
Spindle Axis to Column Guideway Distance	8-660mm
Spindle Nose to Table Surface Distance (V)	0-650mm
Vertical Spindle Centre to Column Distance	610mm
Table
Table Size (L x W)	2100 x 500mm
T-Slots (Quantity / Width / Pitch)	4 / 20 / 100mm
Travel
X-Axis Travel	1500mm
Y-Axis Travel	650mm
Z-Axis Travel	600mm
Feed
X / Y Axis Feed Rate	2.5-3000mm/min
Z-Axis Feed Rate	2.5-2500mm/min
X / Y / Z Rapid Traverse Rate	6000 / 3000 / 3000mm/min
Drive
Main Motor Power (Servo Motor)	15kW
General
Dimensions (L x W x H)	3220 x 2420 x 2800mm
Weight	7000kg

Standard Accessories:
