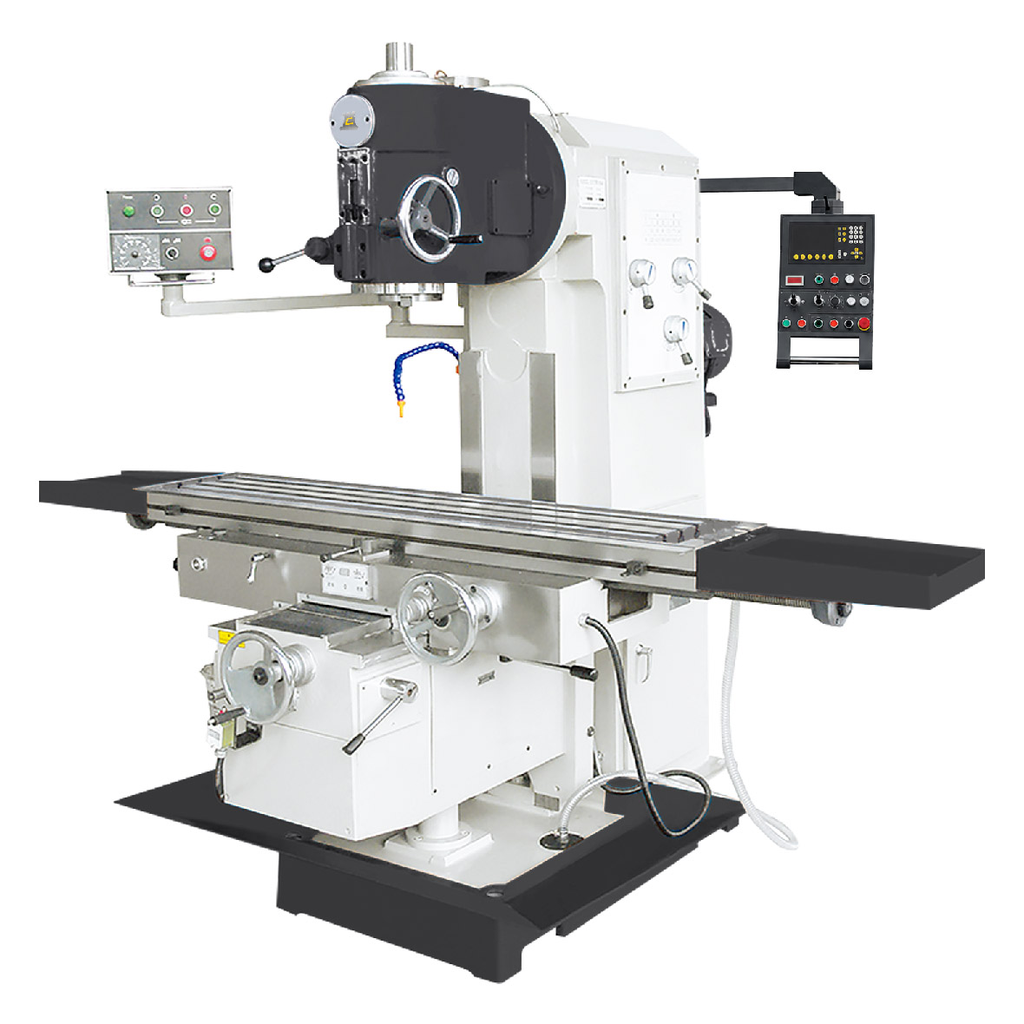

Chester Fortis 360 Servo Vertical Milling Machine

Chester Fortis 360 Servo Vertical Milling Machine

Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Table Size: 1600 x 360mm
Spindle Taper: 7:24, ISO50
Milling Machines
Contact Us

Please contact our team for a custom quote and competitive pricing

Add to cart
Add to wishlist
Price
£ 0.00 £ 0.00

Features:

  • Servo-driven ballscrew feed on all three axes
  • Heavy-duty vertical knee-type milling machine for versatile work
  • Rigid cast structure built to handle demanding cuts
  • Wide spindle speed range suited to many materials
  • Vertical milling head swivels left and right for angled machining
  • Adjustable gibs on all axes to maintain long-term accuracy
  • Forced lubrication on the main drive for reliable running
Table

Working Surface1600 x 360mm
T-Slots (Qty/Width)3/18mm
T-Slot Pitch (Centres)80mm
X-Axis Travel (Manual)1300mm
X-Axis Travel (Automatic)1300mm
Y-Axis Travel (Manual)
320mm (300mm with DRO)
Y-Axis Travel (Automatic)
320mm (300mm with DRO)
Z-Axis Travel (Manual)
450mm
Z-Axis Travel (Automatic)
450mm
Load Capacity
350kg
Table Swivel Range
N/A
Spindle

Spindle Taper7:24, ISO50
Speed Control12-step
Speed Range50-1475rpm
Spindle Centre to Column
378mm
Spindle Nose to Table
50-500mm
Quill Travel
70mm
Drawbar
M24
Head Swivel Range
±30°
Feed Rates

Number of Feeds8-step
X-Axis (Longitudinal)30-750mm/min
Y-Axis (Cross)20-500mm/min
Z-Axis (Vertical)15-375mm/min
X-Axis Rapid Traverse
1200mm/min
Y-Axis Rapid Traverse
800mm/min
Z-Axis Rapid Traverse
600mm/min
Motor/Type

Vertical Spindle Motor/Geared5.5kW (7.4hp)
X, Y, Z Axis Feed Motor/Servo
2.36kW (3.16hp)
Coolant Motor0.09kW (0.125hp)
Weight and Dimensions

Machine Dimensions2520 x 2100 x 2150mm
Net Weight3000kg

Standard Accessories:

  • 3 Axis Digital Readout
  • 3 Axis Power Feed
  • LED Work Lamp
  • Coolant System
  • Table Guard
  • Drawbar and Drawbar Wrench
  • Chip Tray/Collector
  • Manual Lubrication System
  • Toolbox
  • Operation Manual

Optional Accessories:

  • Automatic Lubrication System
  • Semi Universal Dividing Head
  • Fully Universal Dividing Head
  • Rotary Table
  • Slotting Head
  • Machine Vice
  • Clamp Kit
  • Drill Chuck
  • ER Milling Collet Chuck Set
  • Boring Head
  • Reducing Sleeve Set
  • Combination Shell End Mill Arbors
  • Long Milling Arbors
  • End Mill Set
  • Angle Plate
  • Tilting Angle Table
Documents
Fortis.pdf
