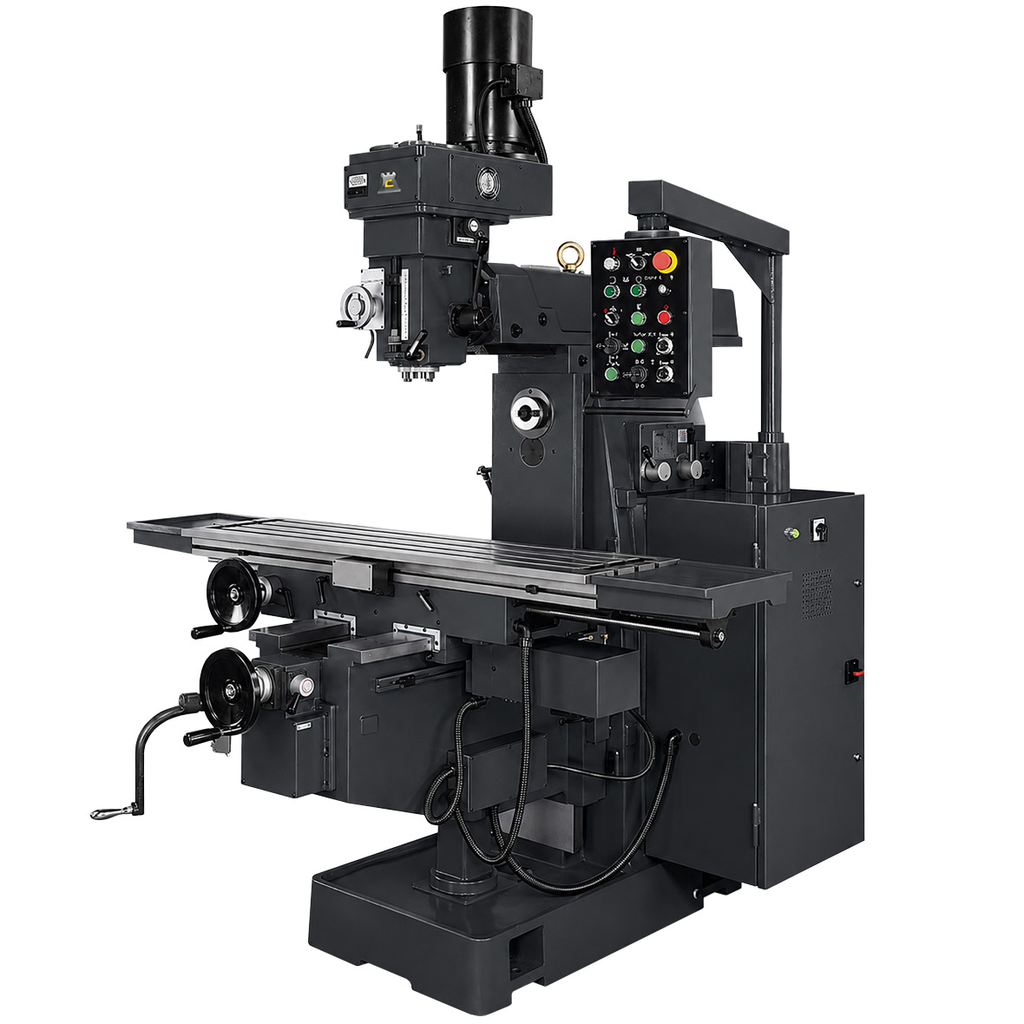

| Table |
|
| Working Surface | 1470 × 370mm |
| T-Slots (Qty/Width) | 3/18mm |
| T-Slot Pitch (Centres) | 80mm |
| X-Axis Travel (Manual) | 1130mm |
| X-Axis Travel (Automatic) | 1120mm |
Y-Axis Travel (Manual) | 610mm |
Y-Axis Travel (Automatic) | 570mm |
Z-Axis Travel (Manual) | 440mm |
Z-Axis Travel (Automatic) | 420mm |
Load Capacity | 450kg |
Table Swivel Range | N/A |
Spindle (Vertical)
|
|
| Spindle Taper | NST40 |
| Speed Control | Variable |
| Speed Range | 600-3600rpm |
Spindle Centre to Column | 185-785mm |
Spindle Nose to Table | 98-538mm |
Quill Travel | 140mm |
Drawbar | M16 |
Head Swivel Range | ±45° |
Spindle (Horizontal) |
|
Spindle Taper | NST50 |
Speed Control | 9-step |
Speed Range | 60-1440rpm |
Spindle Centre to Table | 8-432mm |
Drawbar | M24 |
Feed Rates |
|
Number of Feeds | Variable |
X-Axis (Longitudinal) | 30-3000mm/min |
Y-Axis (Cross) | 30-3000mm/min |
Z-Axis (Vertical) | 960mm/min |
X-Axis Rapid Traverse | 3000mm/min |
Y-Axis Rapid Traverse | 3000mm/min |
Z-Axis Rapid Traverse | 960mm/min |
| Motor/Type |
|
| Vertical Spindle Motor/Inverter Geared + Belt | 3.73kW (5hp),4-Pole |
Horizontal Spindle Motor/Geared + Belt | 5.59kW (7.5hp), 4-Pole |
Feed Motor, X Axis/Servo | 0.75W (1.0hp) |
Feed Motor, Y Axis/Servo | 0.75kW (1.0hp) |
Feed Motor, Z Axis/Servo | 0.85kW (1.0hp) |
Coolant Motor | 0.09kW (0.12hp), 2-Pole |
| Weight and Dimensions |
|
| Machine Dimensions | 2070 x 2050 x 2600mm |
| Net Weight | 2700kg |
