Features:

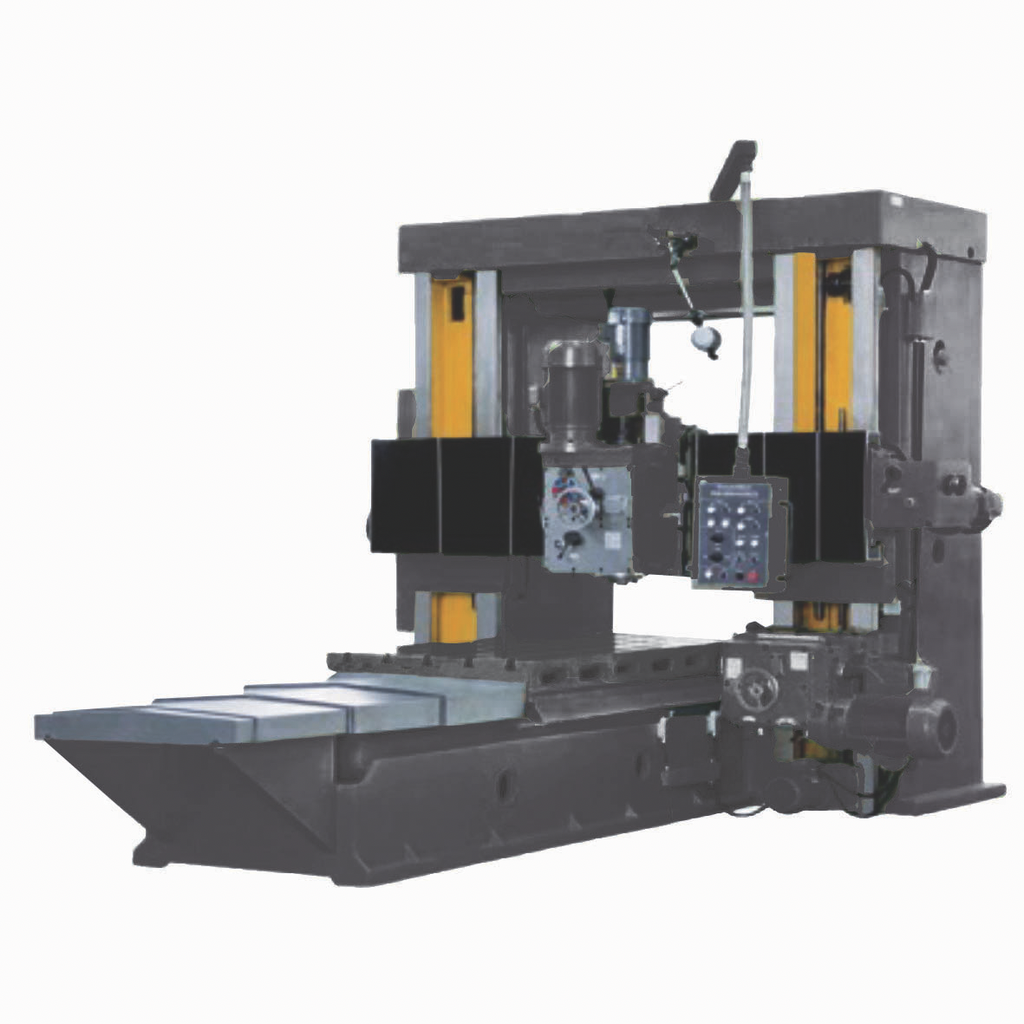

- Heavy-duty planer milling machine built for large workpiece machining
- Servo-driven main transmission for smooth, infinitely variable table speeds
- Combined milling and shaping heads for versatile single-setup operation
- Rigid jacketed bed construction for stability under heavy cutting loads
- Electric crossbeam locking for secure, repeatable positioning
| Table |
|
| Working Surface | 3000 x 900mm |
| T-Slots (Qty/Width) | 5/22mm |
| T-Slot Pitch (Centres) | 170mm |
| X-Axis Travel | 3000mm |
Y-Axis Travel | 1000mm |
Z-Axis Travel | 1000mm |
Load Capacity | 5000kg |
Spindle
|
|
| Spindle Taper | ISO50 |
| Speed Control | Manual |
| Speed Range | 66-660rpm, 8-steps |
Spindle Centre to Column | 516.50mm |
Spindle Nose to Table | 0-1000mm |
Quill Travel | Quill immovable, crossrail or slider up/down |
Drawbar | M24x685mm |
Head Swivel Range | ±45° |
Feed Rates
|
|
| Number of Feeds | Variable |
| X-Axis (Longitudinal) | 0.08-30m/min, Stepless |
| Y-Axis (Cross) | 864mm/min |
| Z-Axis (Vertical) | 360mm/min |
X-Axis Rapid Traverse | 30m/min |
Y-Axis Rapid Traverse | 864mm/min |
Z-Axis Rapid Traverse | 360mm/min |
| Motor/Type |
|
| Vertical Spindle Motor/Geared | 11kW (15hp) |
Horizontal Spindle Motor | N/A |
Feed Motor, X Axis/Servo | 15kW (20.1hp) |
Feed Motor, Y Axis/Geared | 1.5kW (2hp) |
Feed Motor, Z Axis/Geared | 2.2kW (3hp) |
| Coolant Motor/Geared | 0.37kW (0.5hp) |
| Weight and Dimensions |
|
| Machine Dimensions | 6700 x 3200 x 2600mm |
| Net Weight | 11500kg |
Standard Accessories:
- 1 Milling Head
- 3 Axis Digital Readout
- 2 Side Shaping Heads
- 3 Axis Power Feed
- LED Work Lamp
- Drawbar and Drawbar Wrench
- Automatic Lubrication System
- Operation Manual
Optional Accessories:
- Extra Milling Head*
- Semi Universal Dividing Head
- Extra Shaping head*
*Max 4 heads in any combination
