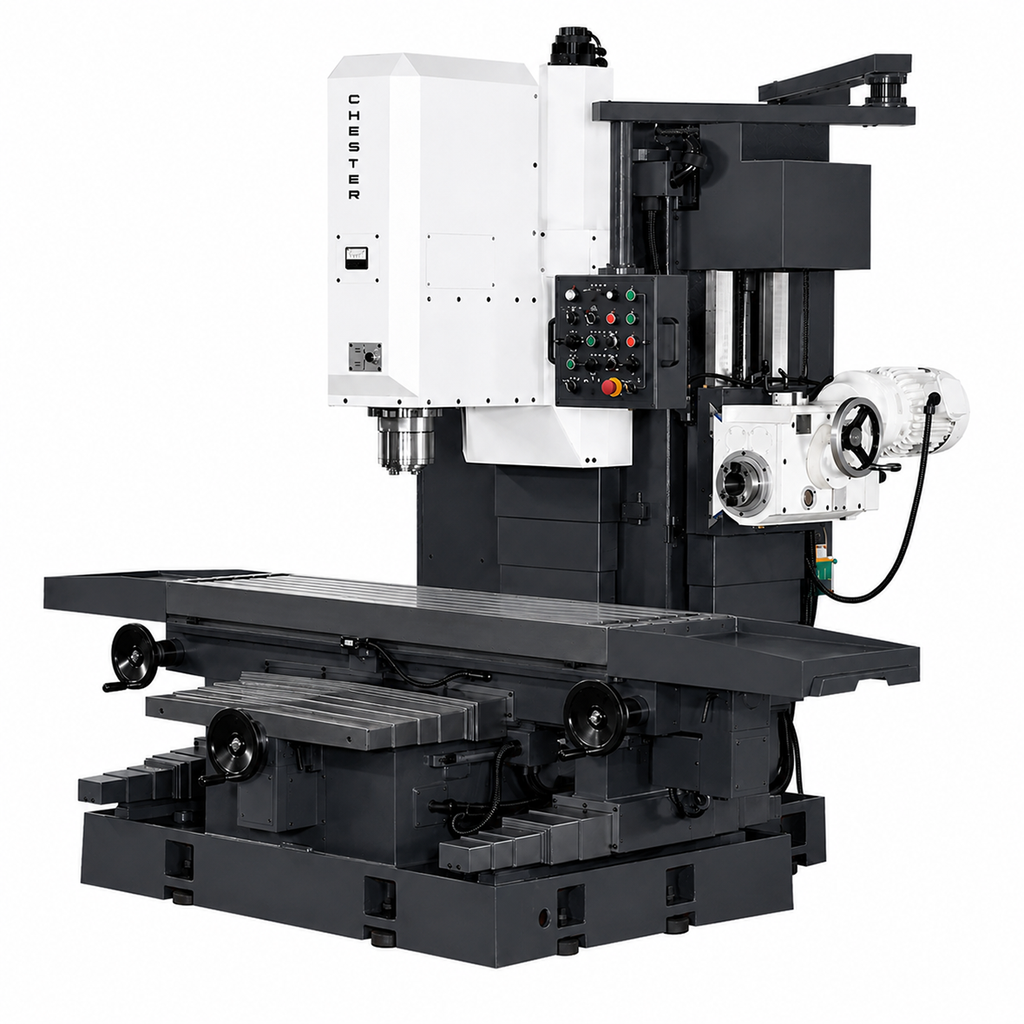

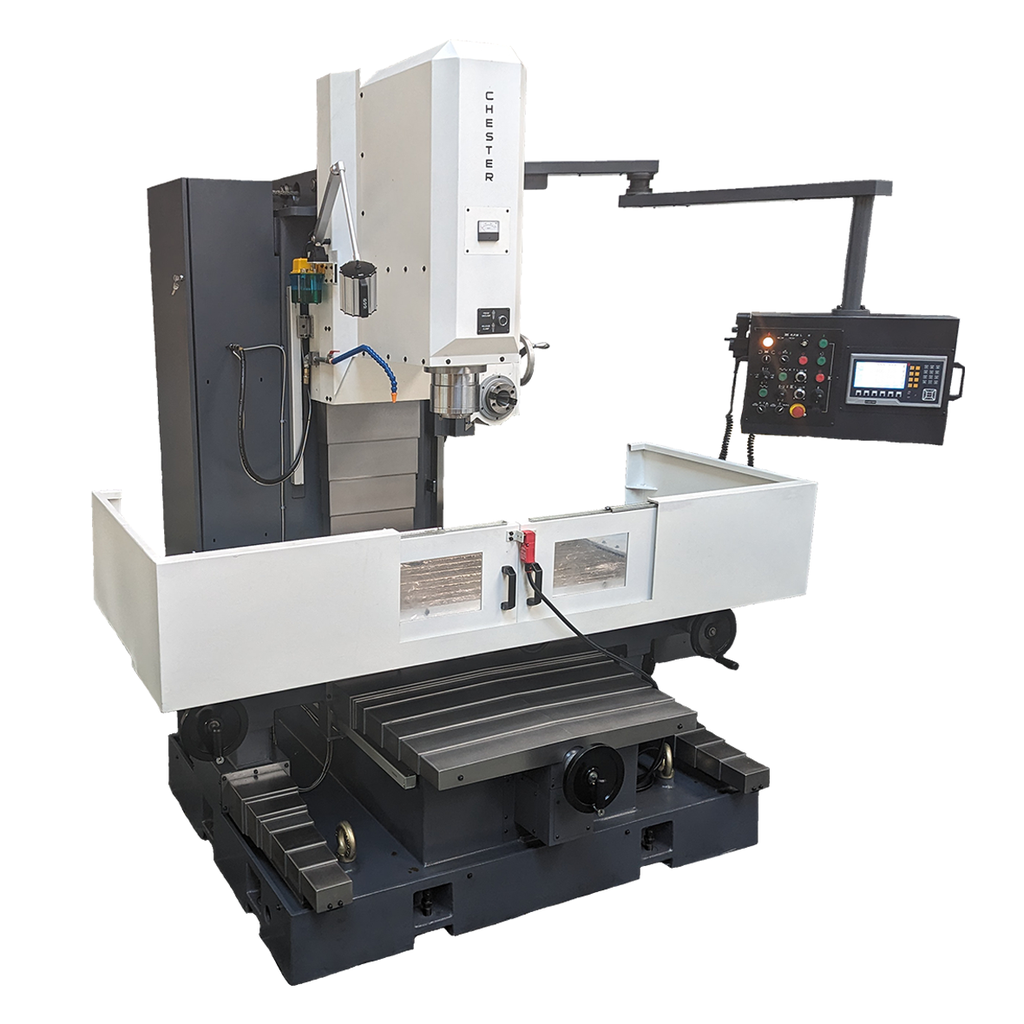

Chester Taurus Servo Dual-Spindle Bed-Type Milling Machine

Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Table Size: 1800 x 520mm
Spindle Taper: NT50
Milling Machines
Contact Us

Please contact our team for a custom quote and competitive pricing

Add to cart
Add to wishlist
Price
£ 0.00 £ 0.00

Features:

  • Servo-driven ballscrew feed on all three axes
  • Heavy-duty universal milling machine available in servo and CNC versions
  • Powerful fixed vertical milling head for demanding cuts
  • Generously sized worktable suited to large workpieces
  • AC servo-driven feeds on all three axes
  • Inverter-controlled spindle for stepless speed variation
  • Hardened and ground guideways for rigidity and lasting accuracy
  • Centralised automatic lubrication
  • Telescopic way covers safeguarding the feed mechanisms
Table

Working Surface1800 x 520mm
T-Slots (Qty/Width)5/18mm
T-Slot Pitch (Centres)80mm
X-Axis Travel (Manual)1500mm
X-Axis Travel (Automatic)1500mm
Y-Axis Travel (Manual)
630mm
Y-Axis Travel (Automatic)
630mm
Z-Axis Travel (Manual)
600mm
Z-Axis Travel (Automatic)
550mm
Load Capacity
1000kg
Spindle (Vertical)

Spindle TaperNT50
Speed ControlVariable
Speed Range0-6000rpm
Spindle Centre to Column660mm
Spindle Nose to Table
62-662mm
Spindle (Horizontal) Optional

Spindle TaperNT50
Speed Control6-step
Speed Range100-590rpm (50Hz)/120-707rpm (60Hz)
Spindle Center to Table0-550mm
Feed Rates

Number of FeedsVariable
X-Axis (Longitudinal)4000mm/min
Y-Axis (Cross)4000mm/min
Z-Axis (Vertical)4000mm/min
H-Axis (Ram) Optional
4000mm/min
X-Axis Rapid Traverse
8000mm/min
Y-Axis Rapid Traverse
8000mm/min
Z-Axis Rapid Traverse
8000mm/min
H-Axis Rapid Traverse (Optional)
8000mm/min
Motor/Type

Vertical Spindle Motor/Belt11.18kW (15hp)
Horizontal Spindle Motor/Geared5.6kW (7.5hp), 4-Pole
X, Y, Z, H Axis Feed Motor/Servo2.2kW (2.95hp)
Coolant Motor0.1kW (0.13hp)
Weight and Dimensions

Machine Dimensions3050 x 2675 x 2590mm
Net Weight5800kg

Standard Accessories

  • Variable Speed Milling Head
  • 3 Axis Digital Readout
  • 3 Axis Power Feed
  • LED Work Lamp
  • Coolant System
  • Table Guard
  • Drawbar and Drawbar Wrench
  • Chip Tray/Collector
  • Automatic Lubrication System
  • Toolbox
  • Operation Manual

Optional Accessories

  • Horizontal Head (H Axis)
  • Semi-Universal Dividing Head
  • Fully Universal Dividing Head
  • Rotary Table
  • Slotting Head
  • Machine Vice
  • Clamp Kit
  • Drill Chuck
  • ER Collet Milling Collet Chuck Set
  • Boring Head
  • Reducing Sleeve Set
  • Combination Shell End Mill Arbors
  • Long Milling Arbors
  • End Mill Set
  • Angle Plate
  • Tilting Angle Plate
  • Right Angle Attachment
Documents
Taurus CNC-Servo.pdf
