• Space saving design
• Dual axis with dual pneumatic piston braking system
• Dual lead worm for easy adjustment and improved accuracy

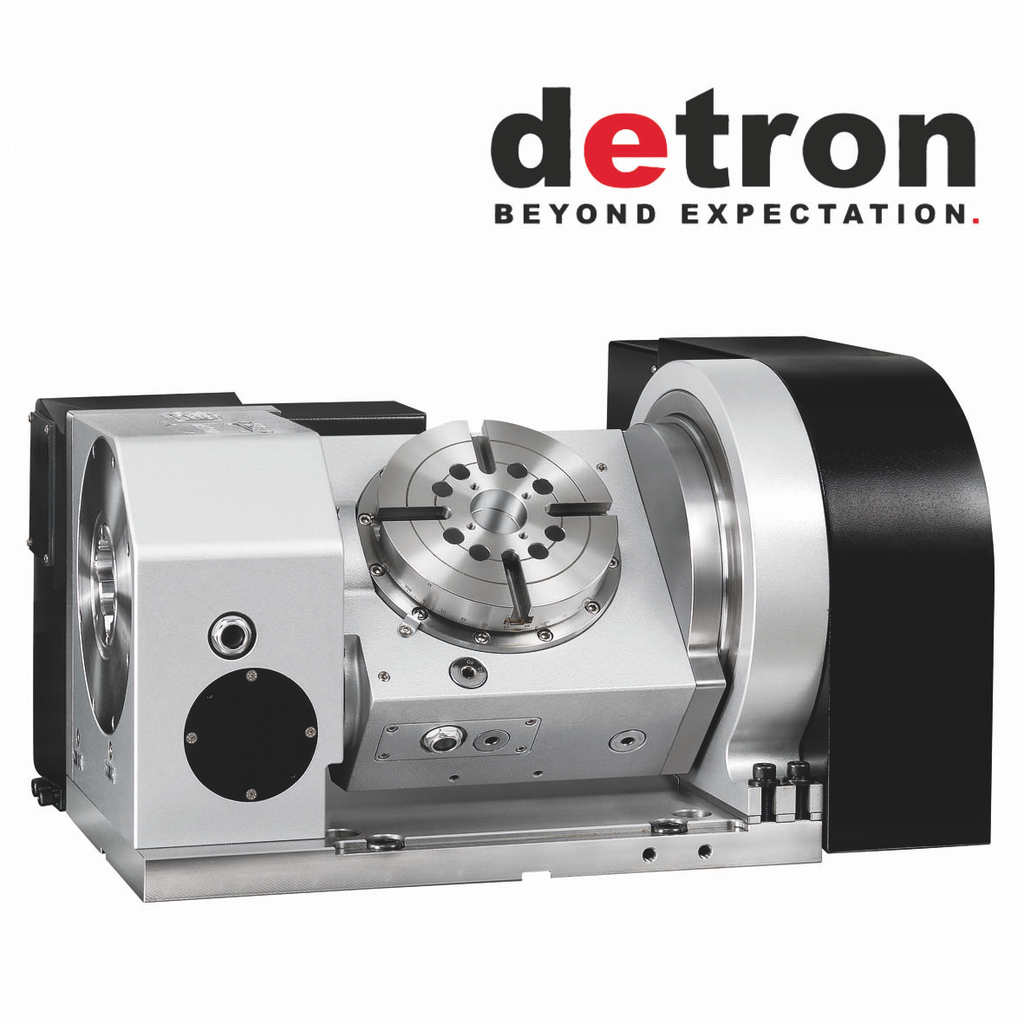

Precision rotary table with space saving design and dual axis. Ideal for machining.

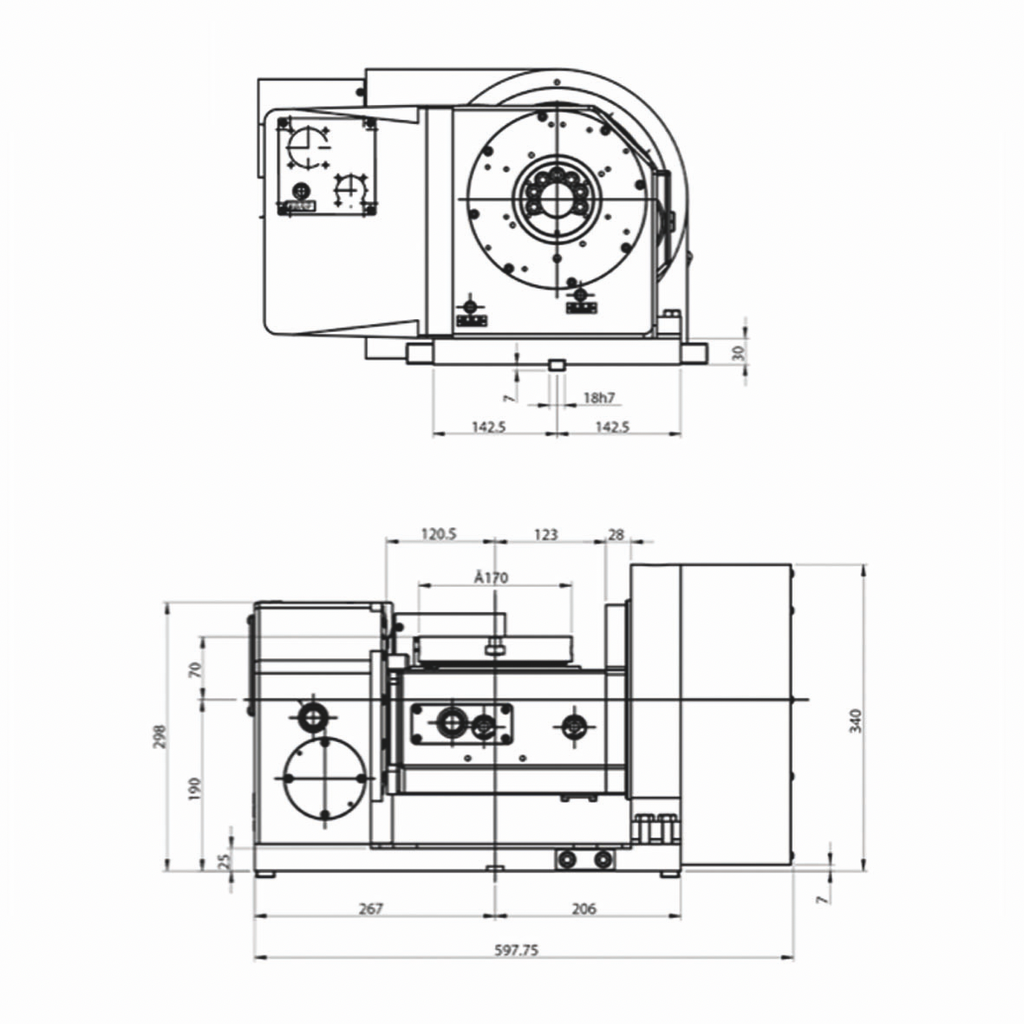

| Specification | Value |
|---|
| Worktable diameter | 170 |
| Center bore diameter | 40H7 |
| Height of table (Horizontal) | 260 |
| Width of T-slot | 12H7 |
| Width of guide block | 18 |
| Clamping method/pressure | Pneumatic 5~7 bar |
| Transmission ratio | R- 1:90 T- 1:90 |
| Max. table speed | R- 33.3 T- 22.2 |
| Resolution | 0.001 |
| Indexing accuracy | R- 20″ T-60″ |
| Repeatability | R- 6″ T-8″ |
| Net weight (servo motor excluded) | 180 |
| Allowable load (when table clamped): F | 7000 |
| Allowable load (when table clamped): FXL | 300 |
| Allowable load (when table clamped): FXL (diagonally) | 400 |
| Allowable cutting torque | 200 |
| Additional Specification | Value |
|---|
| Allowable loading capacity (In Horizontal) | 75 |
| Allowable loading capacity (In tilting) | 50 |
| Tilting angle range | -30 ~+120 |
| Allowable max. rotary joint quantity (port) | 4 |
