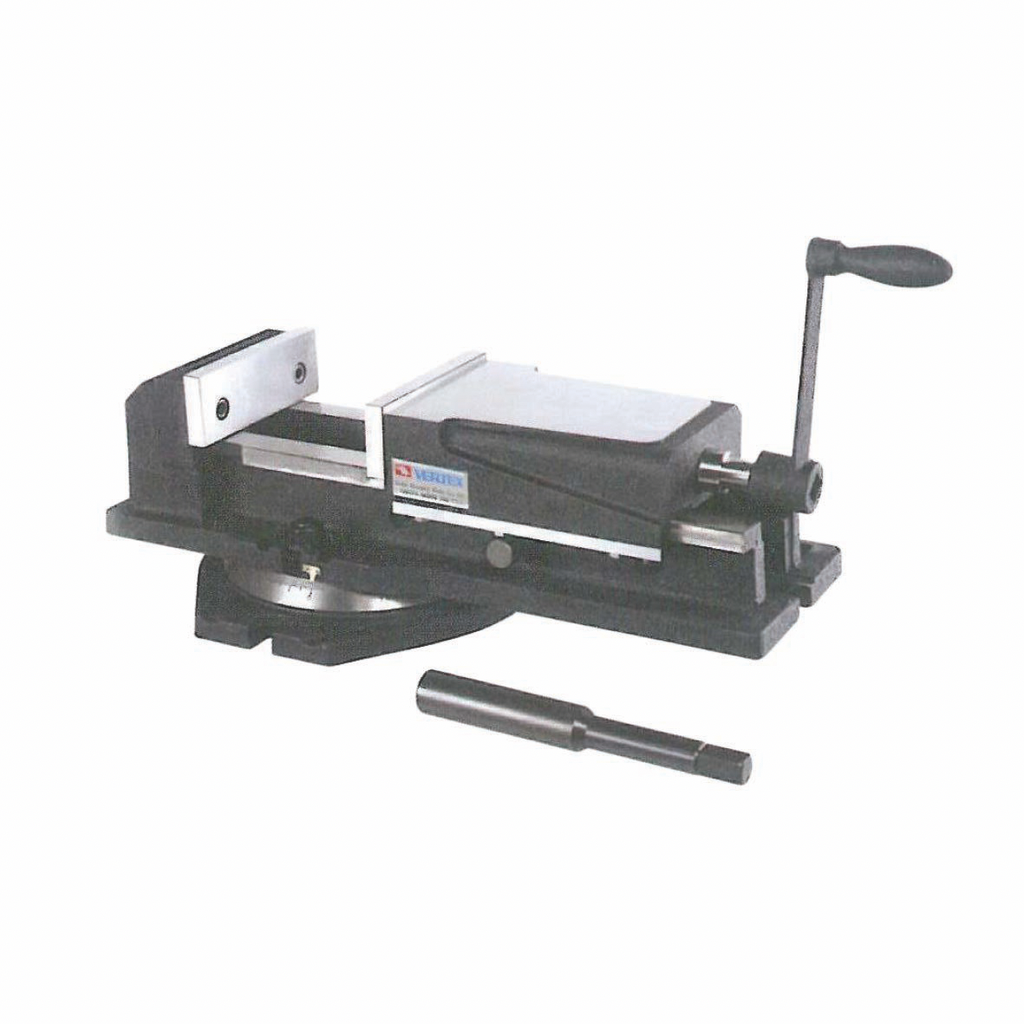

Quality metalworking vice.
A | 154mm |
B | 56mm |
C | 305mm |
Opening size for capacity | C1 - 0-111mm C2 - 97-211mm C3 - 197-305mm |
D | 118mm |
E | 546mm |
E1 | 455mm |
F | 17mm |
G | 255mm |
H | 131mm |
I | 175mm |
J | 290mm |
K | 265mm |
L | 19mm |
M | 111mm |
N | 16mm |
O | 200mm |
Max. Clamp Force | 1500kg |
Weight | 46kg |
The vice jaws are made of hardened alloy steel and are precision ground.
All slide ways on these vices are hardened and ground.
Clamping force can be adjusted by the use of a dial.
Hydraulic vices are suitable where a high clamping force is required.
