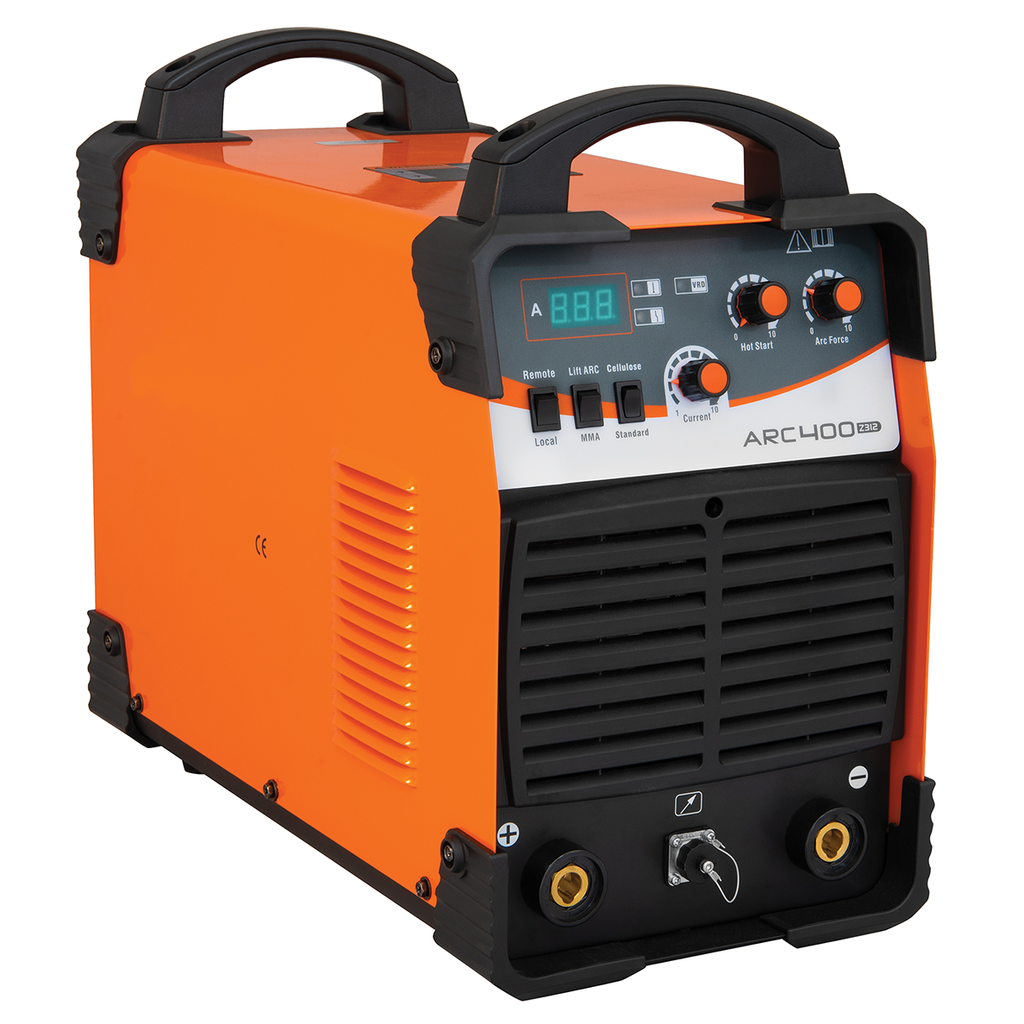

400 MMA (Stick) welding inverter with IGBT technology and digital meters. User friendly, offering reliable and consistent arc performance.
| JA-402 | JA-402C |
| Input Voltage | AC 400V – 50/60 Hz | AC 400V – 50/60 Hz |
| Leff (A) | 19.6 | 19.6 |
| Input Power (kVA) | 18.2 | 18.2 |
| Current Range (A) | 30 – 400 | 30 – 400 |
| Duty Cycle @ 40°C | 400A @ 60% | 400A @ 60% |
| No-Load Voltage (V) | 72 (9V – VRD) | 79 (9V – VRD |
| Efficiency (%) | 85 | 85 |
| Power Factor | 0.95 | 0.95 |
| Protection/Insulation Class | IP21S/F | IP21S/F |
| Dimensions (LxWxH mm) | 618 x 330 x 441 | 618 x 330 x 441 |
| Weight (Kg) | 20 | 20 |
| Product code | JA-402 | JA-402C |
Features
• IGBT inverter technology
• Digital ammeter
• Anti-stick, Arc-force, Hot start, Lift TIG
• Advanced control technology
• Excellent weld characteristics
• Auto-compensation for voltage fluctuation
• Remote control option
• VRD option
• Generator friendly*
Package Includes:
Inverter power source, Operating instructions, 5 year warranty**
*Generators should have regulated output
**5 year warranty subject to product registration
