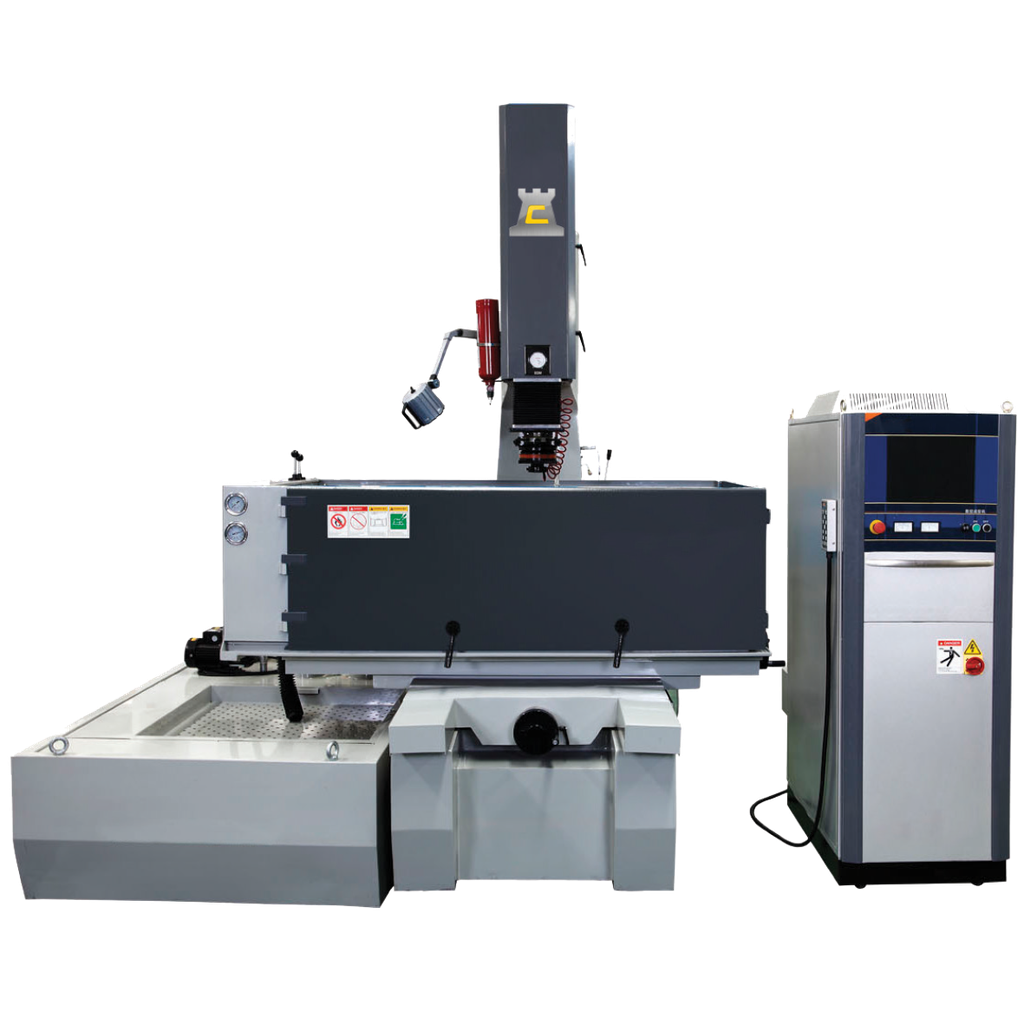

CHESTER ZNC EDM SINKER MACHINES

Name: CHESTER ZNC EDM SINKER MACHINES
SKU: ZNC-EDM
Availability: OutOfStock

Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940

EDM Machines

Please contact our team for a custom quote and competitive pricing

Price

Model	EDM3525Z	EDM4535Z	EDM5040Z	EDM6555Z
Working Tank	900x550x350mm	1200x650x450mm	1270x750x470mm	1780x950x600mm
Working Table Size	600x350mm	700x400mm	800x500mm	1100x650mm
Travel Size
X Axis	350mm	450mm	500mm	650mm
Y Axis	250mm	350mm	400mm	550mm
Spindle(Z)	180mm	200mm	200mm	300mm
Auxiliary(Z)	180mm	200mm	300mm	300mm
Max.Distance between Electrode and Working Table	Min:55mm; Max:445mm	Min:58mm; Max:450mm	Min:128mm; Max:635mm	Min:205mm; Max:790mm
Work Table Load Weight	800kg	1000kg	1300kg	2800kg
Spindle Hold Weight	120kg	150kg	150kg	250kg
Size of Oil Reservoir	470L	470L	540L	1300L
Servo Control Type	DC	DC	DC	DC
Rated Current	60A	60A	60A	60A
Machine Dimensions	1500x1500x2200mm	1500x1500x2200mm	220x1700x2500mm	2800x2100x2800mm
Machine Weight	1300kg	1800kg	2200kg	3500kg

Standard Accessories:

• Controller

• Oil Tank

Optional Accessories:

• Magnetic Table

• Orbital Cutting Head

Documents

EDM ZNC.pdf
