Boring heads

Boring Heads

Price range: £130.63 through £409.04

Rigid boring heads for milling and boring.

BORING HEADS

Clear

SKU: N/A Categories: Boring Heads, Tool Holding Tags: BORING, BORING HEADS, HEAD

Description

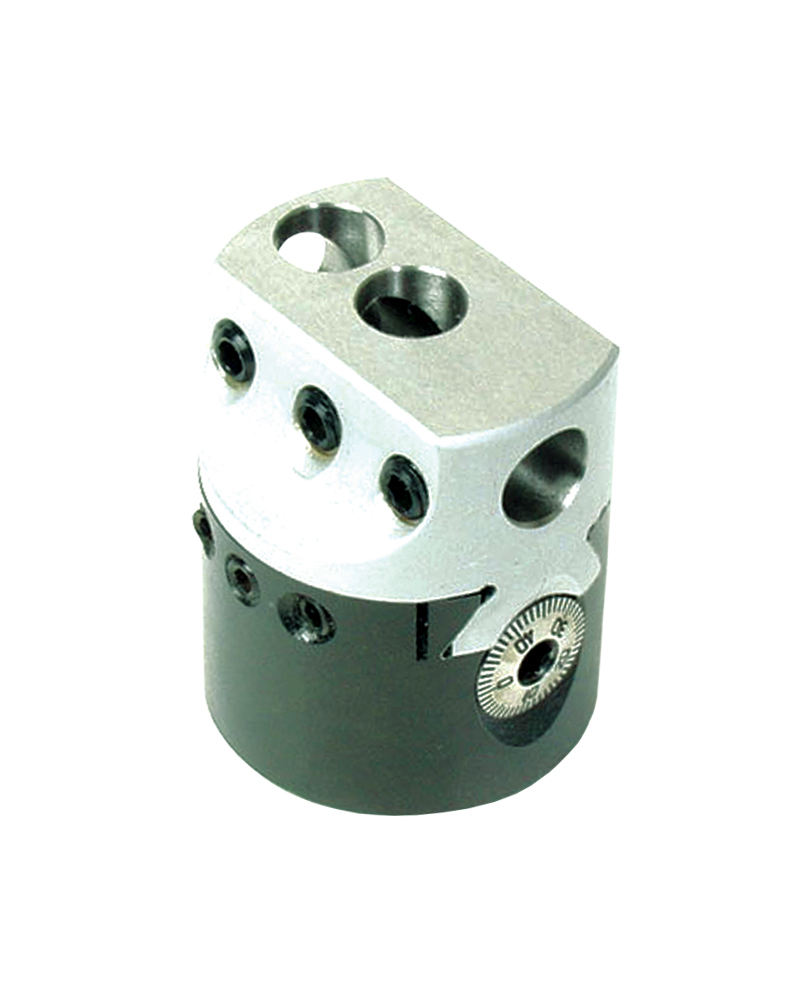

Quality boring heads, ideal for accuracy and precision when milling.

Model	Diameter	Height	Bore	Graduation	Connection	Stock Code	Weight
2” x 1/2”	2″	61.6mm	1/2”	0.01mm	1 1/2” x 18T.P.I	001 – 101	0.5kg
2” x 12mm	50mm	61.6mm	12mm	0.01mm	1 1/2” x 18T.P.I	001 – 102	0.5kg
3” x 3/4″	3″	80.2mm	3/4”	0.01mm	1 1/2” x 18T.P.I	001 – 103	2kg
4” x 1″	4″	93.2mm	1”	0.01mm	1 1/2” x 18T.P.I	001 – 104	4kg

Additional information

Weight	4 kg
BORING HEADS	2" x 1/2", 2" x 12mm, 3" x 3/4", 4" x 1"
