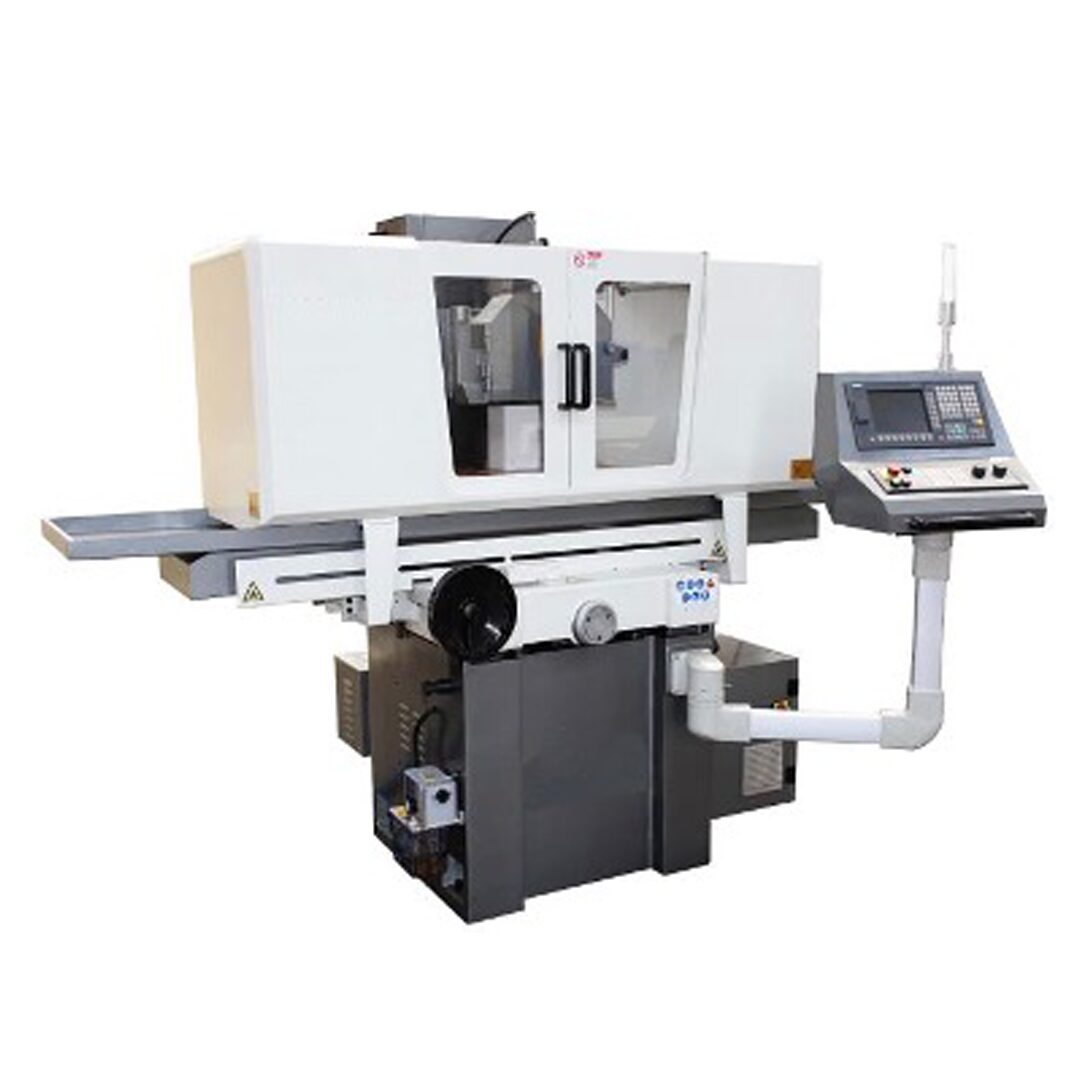

ZB1632CNC Grinding Machine | Chester Machine Tools

Description

Our CNC Grinder features an electromagnetic chuck, MPG, and linear guideway.

Technical Specifications	ZB1632CNC
Table Size	406 x 835mm
Magnetic Chuck Size	400 x 800mm
Max. Distance from Spindle Centre to Table	580mm
Max. Loading Capacity (including chuck)	500kg
X Axis Feed
Feed Speed	5-18m/min/CNC-3 (5-25/CNC-2)
Micro Feed Rate	0.001mm/CNC-3
Z Axis Feed
Feed Speed	0-1m/min
Micro Feed Rate	0.001mm/CNC-3
Y Axis Feed
Feed Speed	0-1m/min
Micro Feed Rate	0.001m/min
Spindle Rotating Speed	1450r/min(50HZ)/1750r/min(60HZ)
Grind Wheel Size	350 x 40 x 127mm
Spindle Motor Power	4kw
Floor Space (L x W x H)	4200 x 2400mm
Gross Weight	3700kg

Standard Accessories

• Siemens 808D

• Electrical Magnetic Chuck

• Coolant Tank

• Balancing Arbor

• Wheel Flange and Wheel

• Wheel Extractor

• Standard Dressing Wheel (diamond pen not included)

• Levelling Wedge

• Fully Enclosed Guard

• MPG (Y, Z Axis or XYZ Axis)

• X/Y/Z Axis Linear Guideway

• X/Y/Z Axis Ball Screw

• Spindle

• Spindle Motor

• Toolbox

• Operation Manual

Optional Accessories

• Siemens 828D system (2 axis or 3 axis)

• Balancing Stand

• Magnetic Separator

• Dust Extractor with Coolant Tank

• Parallel Dresser

• Magnetic Separator and Paper Filter with Coolant Tank
