Description

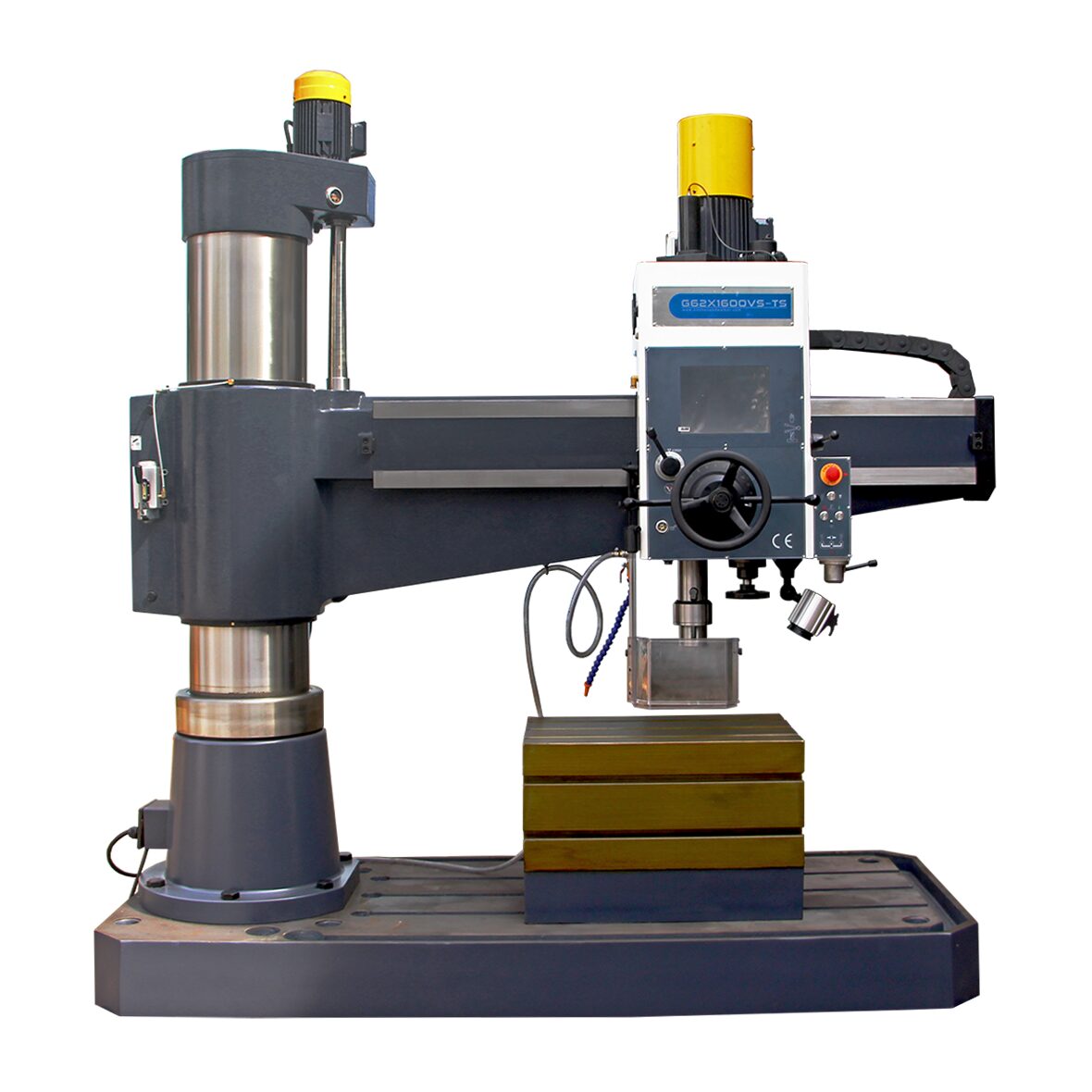

Our G62x1600VS/TS Radial Drill is ideal for workshops. With stepless spindle speeds, +/-180° moving arm angle, and ±180° arm rotation.
| Drilling Capacity Mild Steel | 60mm |
| Drilling Capacity Cast Iron | 70mm |
| Tapping Capacity Mild Steel | 45mm |
| Tapping Capacity Cast Iron | 50mm |
| Spindle Taper | MT5 |
| Distance from Spindle to Column (min/max) | 350-1600mm |
| Distance from Spindle to Base (min/max) | 350-1250mm |
| Rotation Arm around Column | ±180° |
| Travel Distance of Spindle Box in Horizontal (manual) | 1250mm |
| Vertical Travel of Arm | 900mm |
| Box Table size | 750 x 500 x 500mm |
| Number and Size of T Slots on Table | 5/22mm |
| Distance between T Slots | 150mm |
| Maximum Spindle Traverse (hand/power) | 315mm |
| Number of Spindle Speeds | Stepless |
| Range of Spindle Speeds | 38-275rpm, 275-2000rpm |
| Range of Spindle Feed Rate | 0-300mm/min |
| Max. Spindle Torque | 400Nm |
| Max. Spindle Feed Resistance | 16000N |
| Spindle moving distance of each Dial Revolution | 122mm |
| Arm Moving Angle | +/-180° |
| Arm Speed (up & down) | 1.2m/min |
| Number of Feed Rates | Stepless |
| Range of Power Feed Rates | N/A |
| Base size (overall) | 2400 x 1000 x 200mm |
| Base Working Surface | 1690 x 840mm |
| Number and size of T Slots on base | 3/28mm |
| Distance between T Slots | 200mm |
| Column Diameter | 350mm |
| Main Motor Power | 4kW (5.36hp) |
| Feed Motor Power | 1.26kW (1.69hp) |
| Power for Arm Motor | 1.5kW (0.20hp) |
| Coolant Pump Motor | 0.15kW (2.01hp) |
| Clamping/Hydraulic Motor | 1.1kW (1.48hp) |
| Machine Dimensions (L x W x H) | 2490 x 1050 x 2780mm |
| Net Weight | 3400kg |
Standard Accessories
- Interlocked Spindle Guard
- Automatic Tapping Function
- LED Work Lamp
- Coolant System with Flexible Hose
- Box Work Table
- Fixing Bolts
- Reducing Sleeves
- Set of Lifting Shoes
- D.C Brake
- Safety Relay
- Operational Manual
