Description

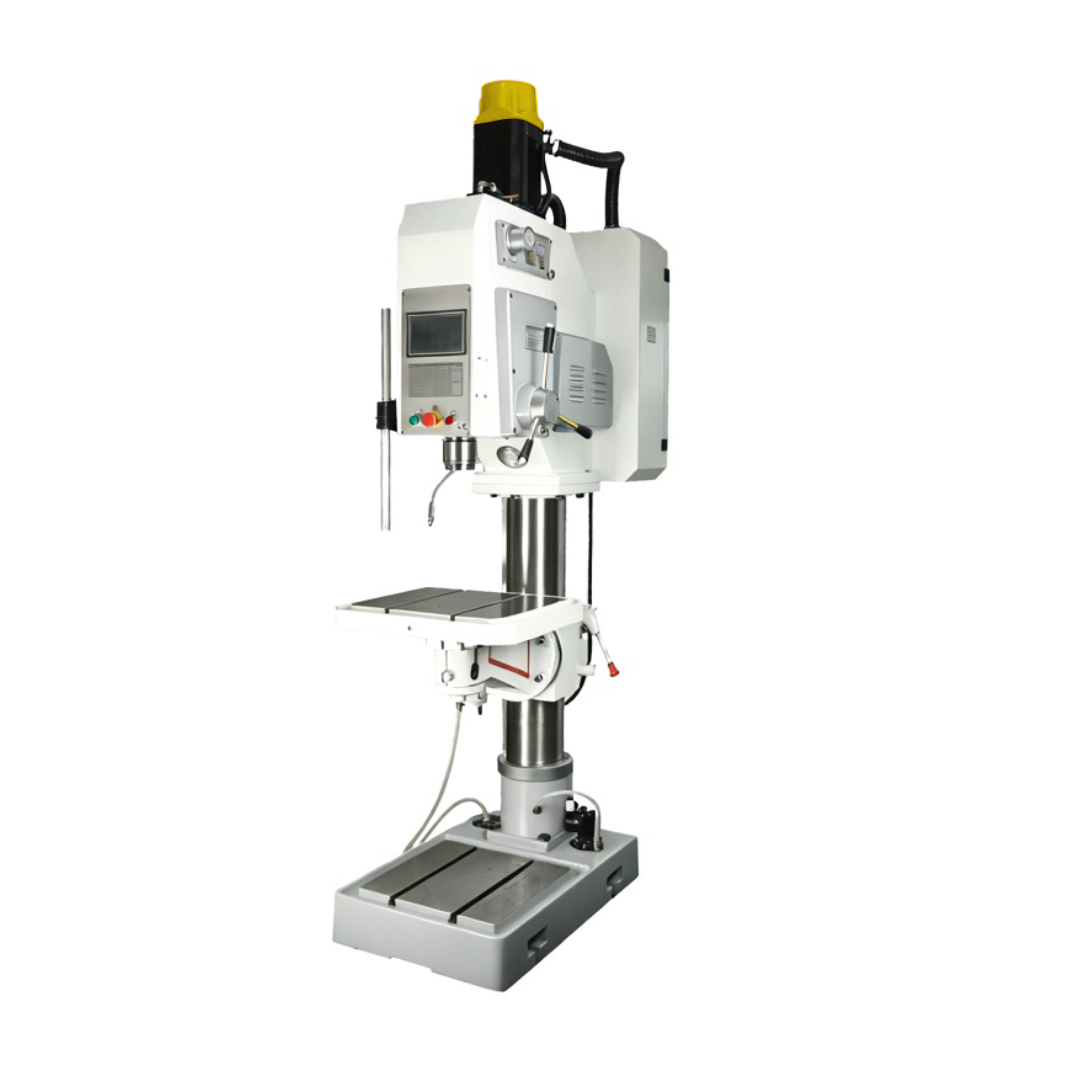

A precision drilling machine for workshops.
| Model | GP50W |
| Max. Drilling Capacity Mild Steel | 50mm |
| Max. Tapping Capacity Mild Steel | M30 |
| Diameter of Column | 180mm |
| Distance Spindle Axis to Column | 360mm |
| Spindle Taper | MT5 |
| Spindle Travel | 240mm |
| Max. Distance Spindle Nose to Table | 570mm |
| Max. Distance Spindle Nose to Base | 1160m |
| Spindle Speed Range | Low:50-250rpm, High:251-2000rpm |
| Spindle Feed Range | 0-756mm/min |
| Positioning Accuracy | 0.2mm |
| Repeatability | 0.02mm |
| Dimensions of Worktable | 550 x 470mm |
| Workbench T-Slot | 14 x 2 x 200mm |
| Workbench Travel | 550mm |
| Dimensions of Base | 450 x 440mm |
| Base T-Slot | 18 x 2 x 200mm |
| Electromagnetic Clutch | 32 |
| Horizontal Rotation Angle of Worktable and Bracket | ±45° |
| Main Motor Power | 3.7kW (4.96hp) |
| Feed Motor Power | 1.5kW (2.01hp) |
| Lifting Motor | 0.18kW (0.24hp) |
| Pump Motor | 0.04kW (0.05hp) |
| Net Weight | 794kg |
| Dimensions | 1220 x 680 x 2550mm |
Standard Accessories
- 4mm PC Safety Guard Covering Spindle on 3 Sides
- Digital Speed Readout
- Powered Table Elevation
- Pressurised Lubrication
- Electronic Clutch
- Digital Depth Gauge
- Auto Feed
- Auto Tapping
- Fine Feed
- Drill Chuck and Arbor
- Lamp
- Coolant System
- Reducing Sleeves
- Drill Drifts
- Safety Relay
- Servo Motor
- PLC
- Fixed Double Spindle Head
- Arbor
- Taper Sleeve
- Tool Releasing Wrench
- Drift
- Eyelet Bolts
- Double-Ended Spanner
- Washer
- Bolts
- Operation Manual
Optional Accessories:
- Machine Vice
