Description

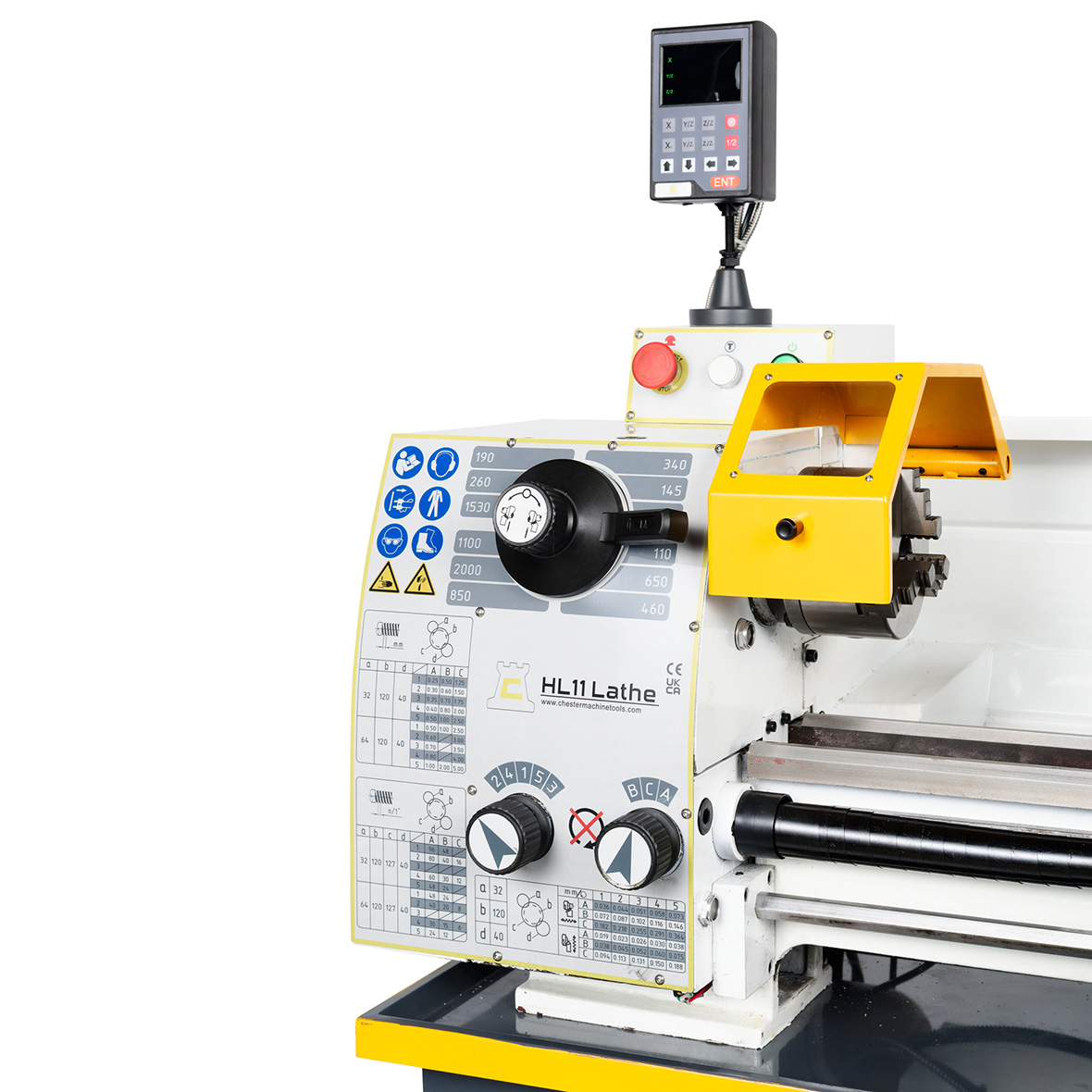

Ideal for workshops and education, our HL11 features +/-60º rotating tool slide and 2 Axis DRO.
| Centre Height | 140mm |
| Swing over Bed | 280mm |
| Distance Between Centres | 650mm |
| Swing over Cross Slide | 165mm |
| Cross Slide Travel | 155mm |
| Top Slide Travel | 80mm |
| Bed | |
| Width | 160mm |
| Headstock | |
| Spindle Nose | Plain Back Chuck Fitting |
| Spindle Bore | 26mm |
| Spindle Taper | MT4 |
| Number of Spindle Speeds | 12 |
| Range of Spindle Speeds | 70-2000r/min |
| Rotation of Tool Slide | +/-60° |
| Tailstock | |
| Quill Diameter | 32mm |
| Quill Travel | 80mm |
| Quill Internal Taper | MT3 |
| Feeds Range and Gearbox | |
| Longitudinal Feeds | 0.036-0.364mm/r |
| Cross Feeds | 0.019-0.188mm/r |
| Metric Threads | 0.25-5.0mm (18steps) |
| Imperial Threads | 6-96tpi (13steps) |
| Leadscrew Pitch | 3mm |
| Motors | |
| Main Motor | 0.75kW (1hp) |
| Weight And Dimensions | |
| Dimensions | 1280x685x530mm |
| Net Weight | 250kg (without stand) |
| Power Supply | 240V single Phase |
Standard Accessories
• 3 Jaw Chuck 125mm
• 4 Jaw Chuck 125mm
• 2 Axis Industrial Digital Read Out
• LED Machine Lamp
• Chuck Guard
• Toolpost Guard
• Leadscrew Guard
• Fixed Steady
• Travelling Steady
• Full Length Rear Splash Guard
• 4 Way Tool Post
• Thread Chasing Dial
• Steel Centre
• Tool Box
• Manual
