FMS Shears

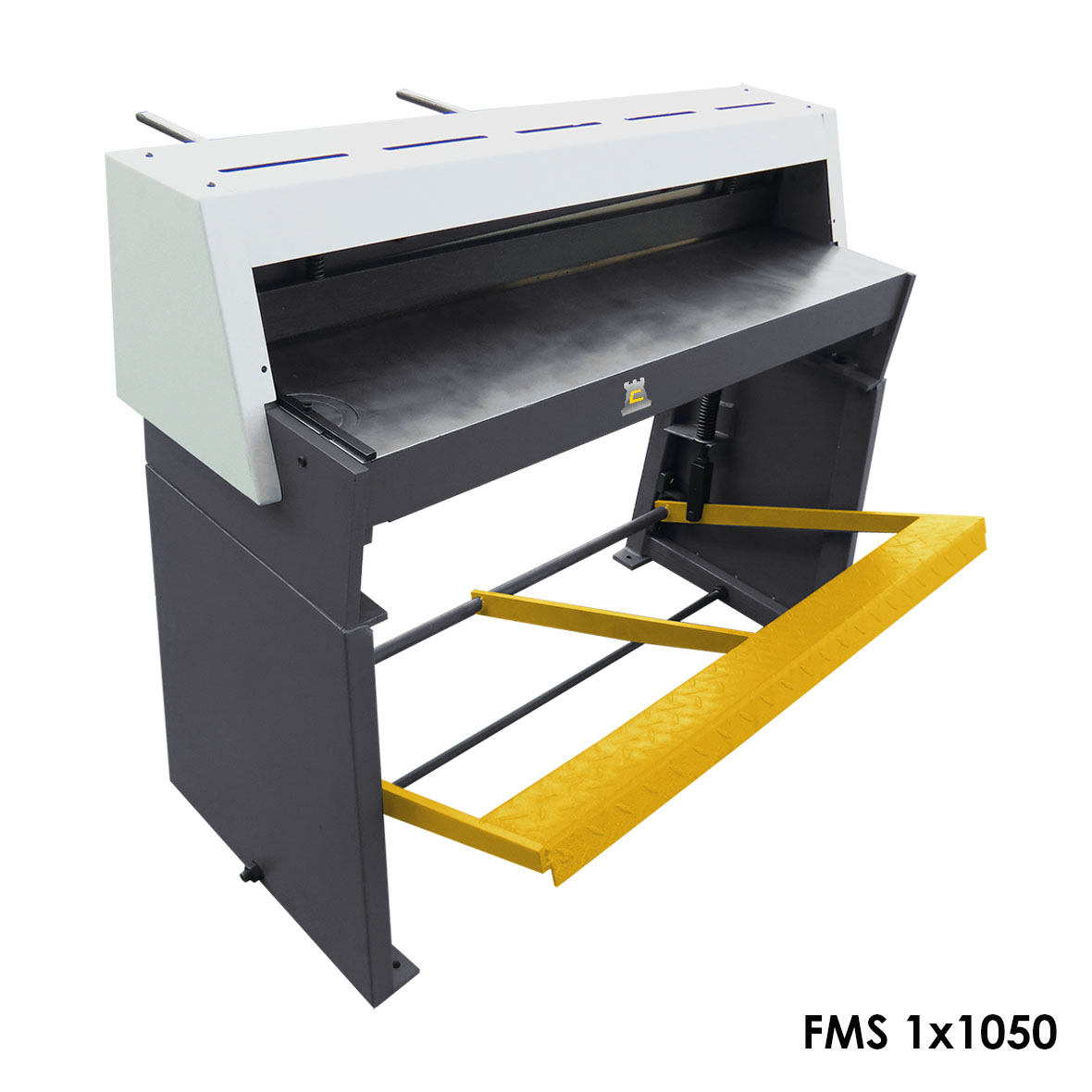

Chester Manual Shearing Machines, FMS Series - Image 2

Chester Manual Shearing Machines, FMS Series

Please contact us for more info.

Categories: Fabrication Machines, Shearing Tags: machines, shearing machine

Description

Features:

Adjustable back gauge with graduated scale for accurate, repeatable cuts across the full range
Workpiece clamping during each cut ensures a clean and controlled shear
No electrical power supply required for cutting operations
Reversible and resharpenable blades for extended service life and low running costs

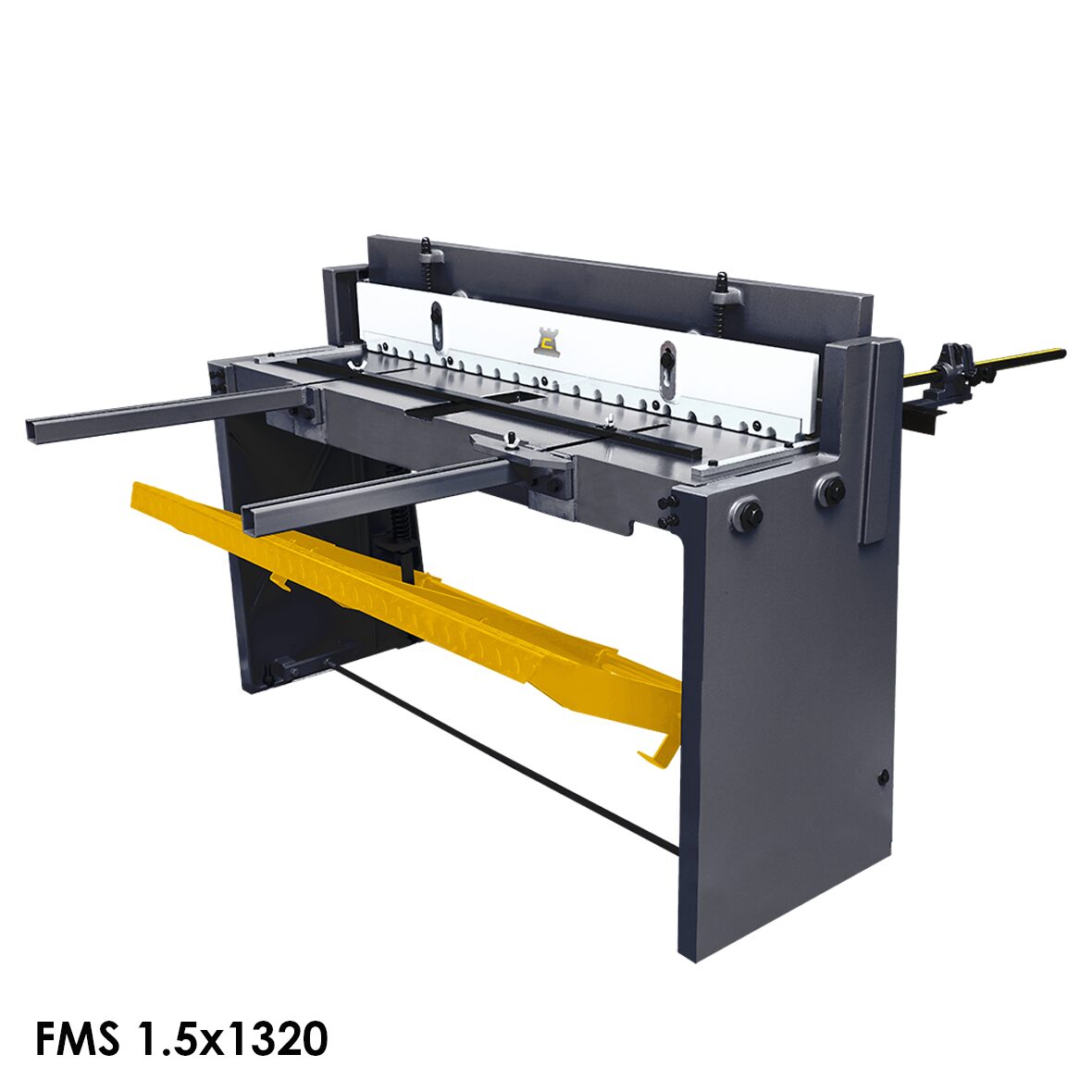

Model	FMS-1×1050	FMS-1.25×650	FMS-1.5×1320
Bed Width	1050mm	650mm	1320mm
Max. Shearing Thickness	1mm	1.25mm	1.5mm
Back Gauge Range	0-500mm	0-500mm	0-700mm
Motor	N/A	N/A	N/A
Dimensions	1300 x 1500 x 1000mm	900 x 1500 x 1000mm	1600 x 1800 x 1000mm
Net Weight	175kg	155kg	454kg
