CHESTER TM500C TURNING MILLING MACHINE

The complete fusion of milling and turning enables you to finish your parts from raw material to completed components done in one hit. The new model now has a BMT lower turret which offers a further 12 more driven tools. At the cutting edge of technology the TM500C is environmentally efficient and excellent value.

Please contact us for more info.

Description

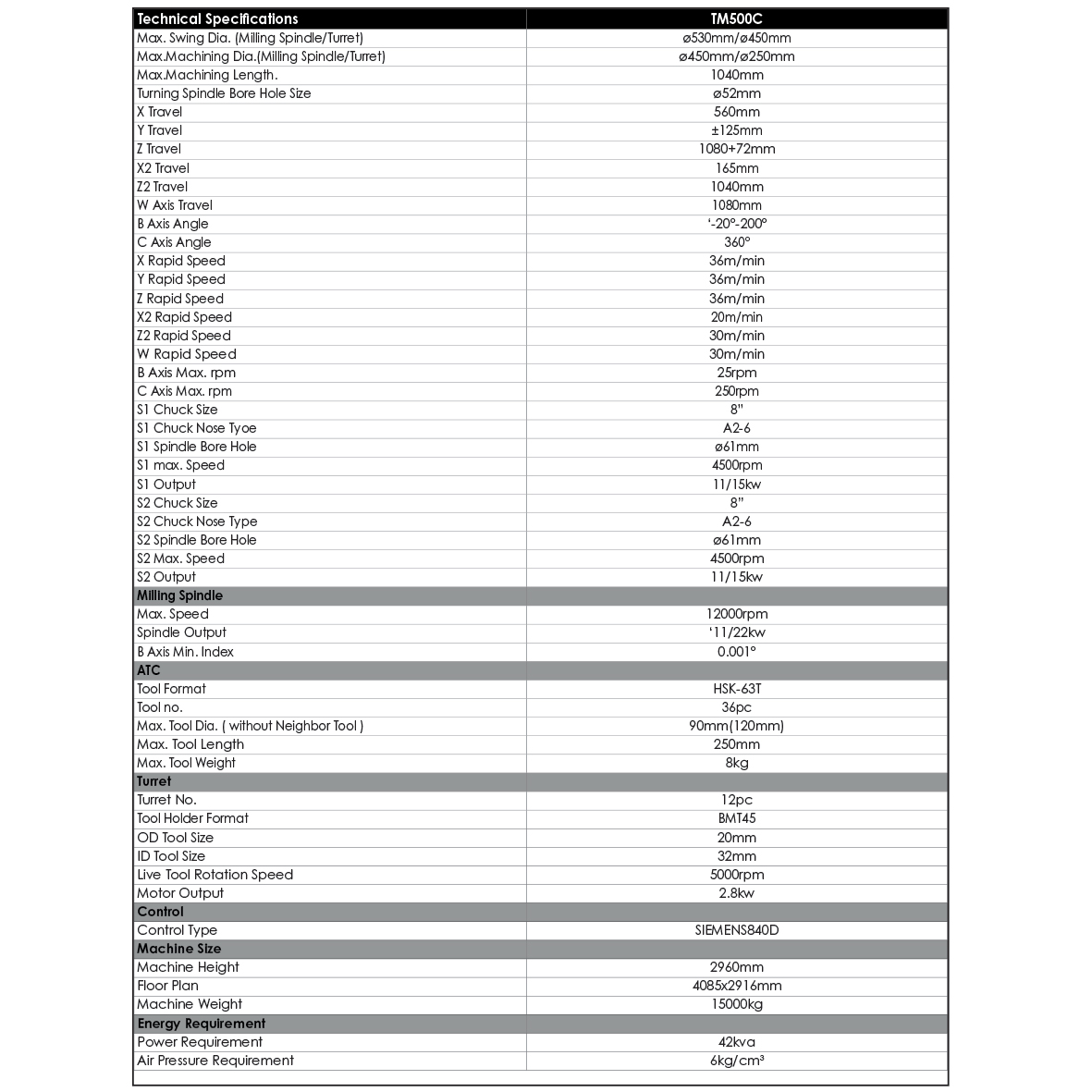

Technical Specifications TM500C
Max. Swing Dia. (Milling Spindle/Turret) ø530mm/ø450mm
Max.Machining Dia.(Milling Spindle/Turret) ø450mm/ø250mm
Max.Machining Length. 1040mm
Turning Spindle Bore Hole Size ø52mm
X Travel 560mm
Y Travel ±125mm
Z Travel 1080+72mm
X2 Travel 165mm
Z2 Travel 1040mm
W Axis Travel 1080mm
B Axis Angle ‘-20°-200°
C Axis Angle 360°
X Rapid Speed 36m/min
Y Rapid Speed 36m/min
Z Rapid Speed 36m/min
X2 Rapid Speed 20m/min
Z2 Rapid Speed 30m/min
W Rapid Speed 30m/min
B Axis Max. rpm 25rpm
C Axis Max. rpm 250rpm
S1 Chuck Size 8”
S1 Chuck Nose Tyoe A2-6
S1 Spindle Bore Hole ø61mm
S1 max. Speed  4500rpm
S1 Output 11/15kw
S2 Chuck Size 8”
S2 Chuck Nose Type A2-6
S2 Spindle Bore Hole ø61mm
S2 Max. Speed 4500rpm
S2 Output 11/15kw
Milling Spindle
Max. Speed 12000rpm
Spindle Output ‘11/22kw
B Axis Min. Index 0.001°
ATC
Tool Format HSK-63T
Tool no. 36pc
Max. Tool Dia. ( without Neighbor Tool ) 90mm(120mm)
Max. Tool Length 250mm
Max. Tool Weight 8kg
Turret
Turret No. 12pc
Tool Holder Format BMT45
OD Tool Size 20mm
ID Tool Size 32mm
Live Tool Rotation Speed 5000rpm
Motor Output 2.8kw
Control
Control Type SIEMENS840D
Machine Size
Machine Height 2960mm
Floor Plan 4085x2916mm
Machine Weight 15000kg
Energy Requirement
Power Requirement 42kva
Air Pressure Requirement 6kg/cm³

STANDARD ACCESSORIES

• Siemens 840D

• S1 Turning Spindle

• S2 Turning Spindle

• Sub-turret

• B Axis Circular Scale



OPTIONAL ACCESSORIES

• Air Conditioner for Electrical Cabinet

• Anti-Collision Function (for 840D Only)

• Auto Front Door

• Automatic Voltage Stabilizer

• Band (Paper) Filter System (for CTS Supply Unit Only)

• Bar Feeder Interface Preparation

• Bar Feeder(Fedek DH65L)

• Chip Conveyor

• CTS Supply Unit (18 Bars)

• CTS Supply Unit (42 Bars)

• CTS Supply Unit (70 Bars)

• Disc Oil Coolant Separator

• Eco-CTS Supply Unit (30 Bars)

• Encoder B Axis

• Linear Scale On X/Y/Z Axes

• Oil Demister

• Portable MPG

• Tool Length Measurement System (Laser,Blum Nt-H 3D)

• Tool Length Measurement System (Laser,Renishaw Nc4 +  Tool Presetter)

• Tool No.:72 Tools (Hsk-T63)

• Transformer: 220V/50/60Hz

• Wash Down System

• With New Ce Unit (Double Safety Loop)

• Full Center Calibrating Device (Kinematics Software + Hardware) (By Renishaw Rmp600 Only)

• Workpiece Measurement System (Blum, TC63)

• Workpiece Measurement System (Renishaw, Rmp60)
